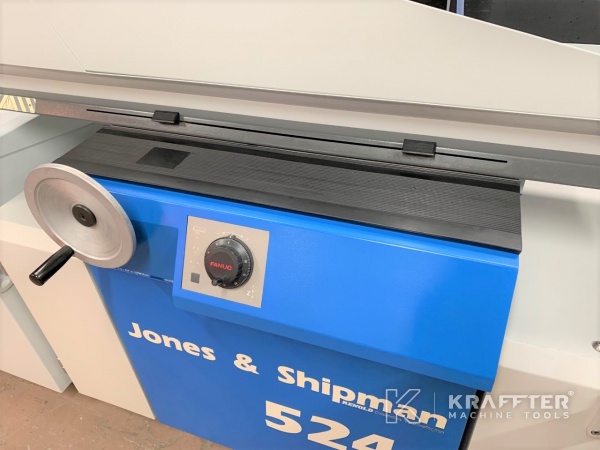

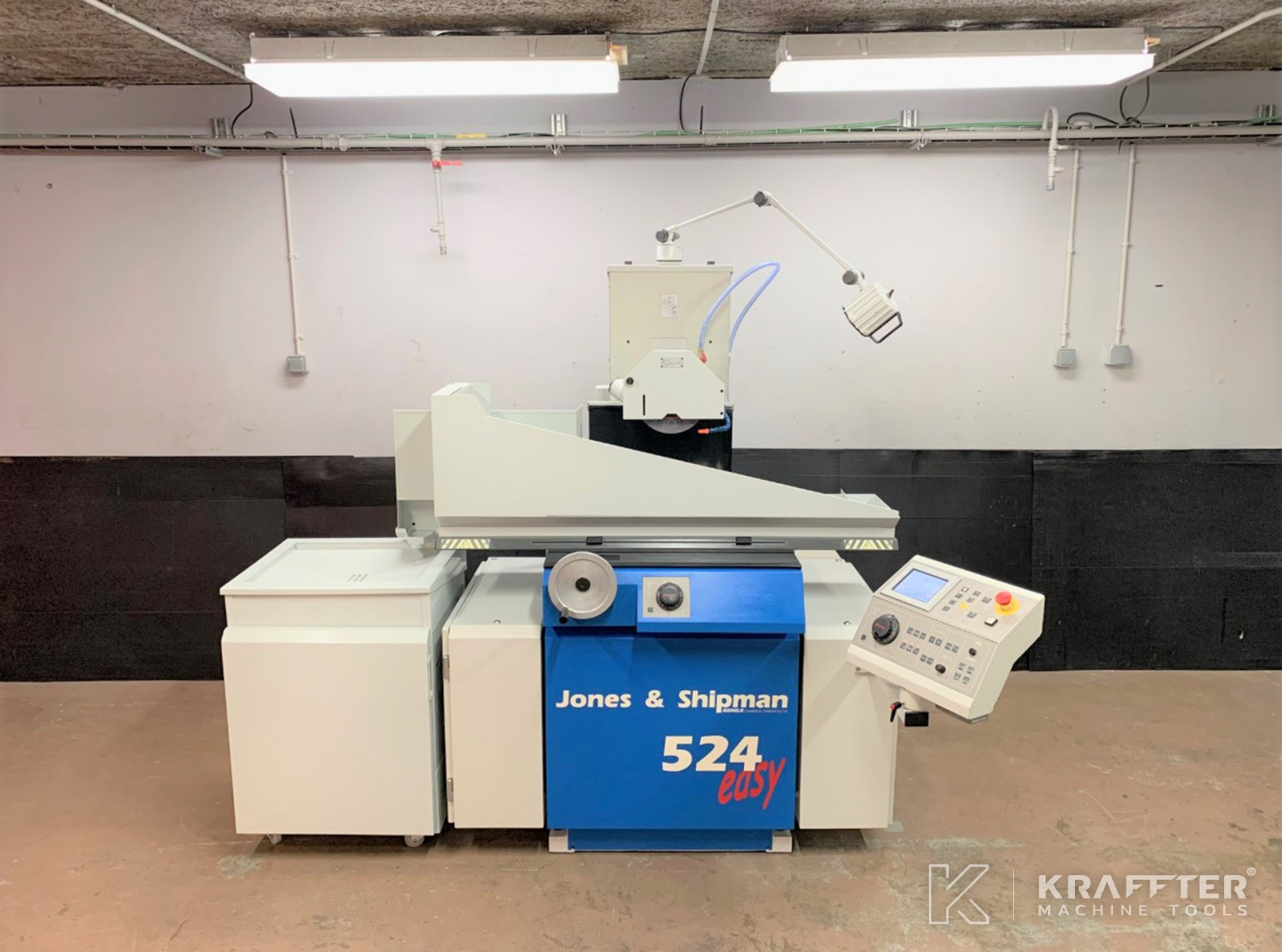

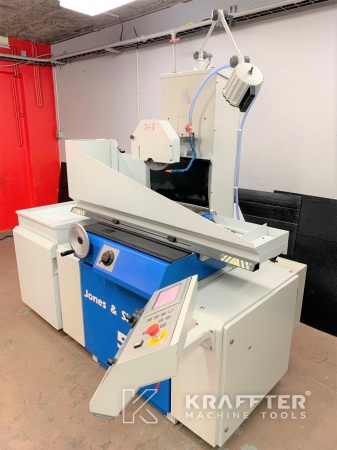

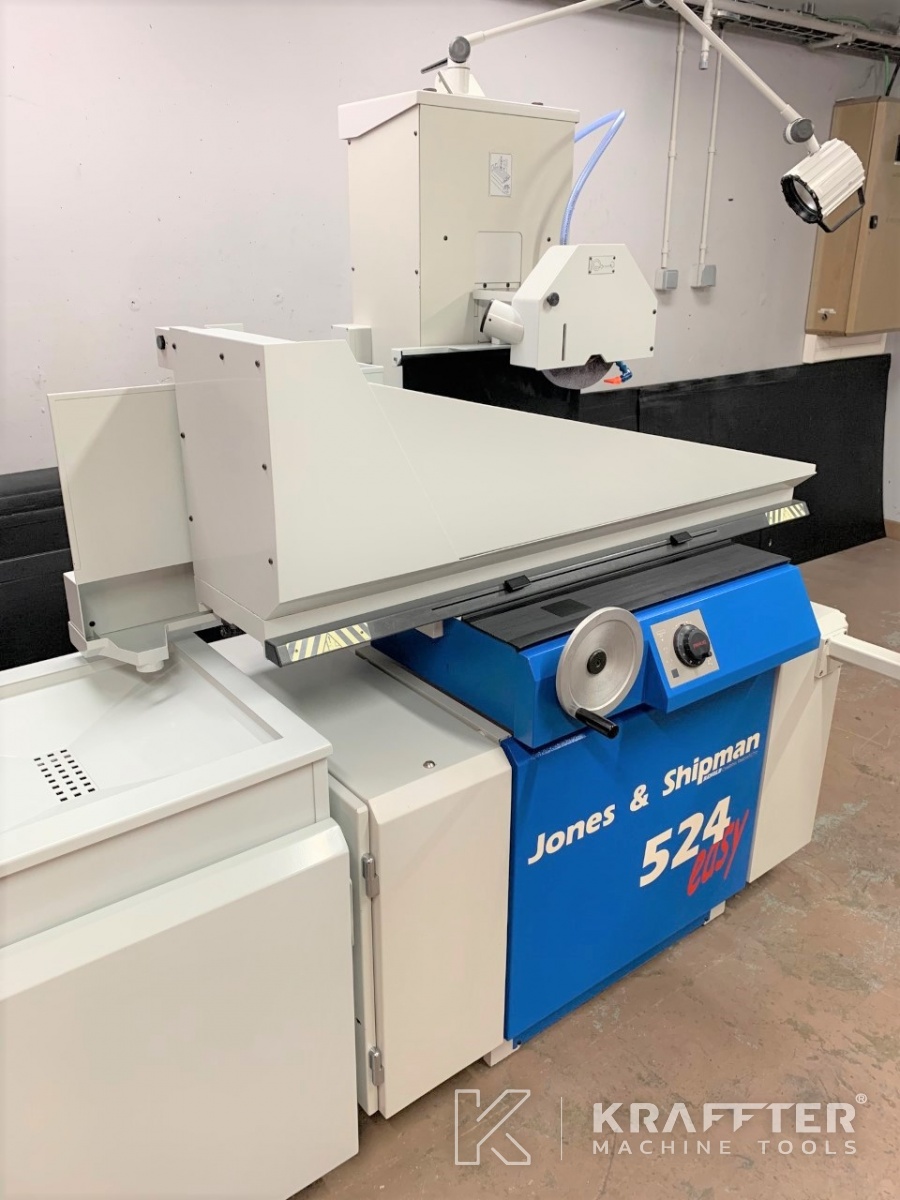

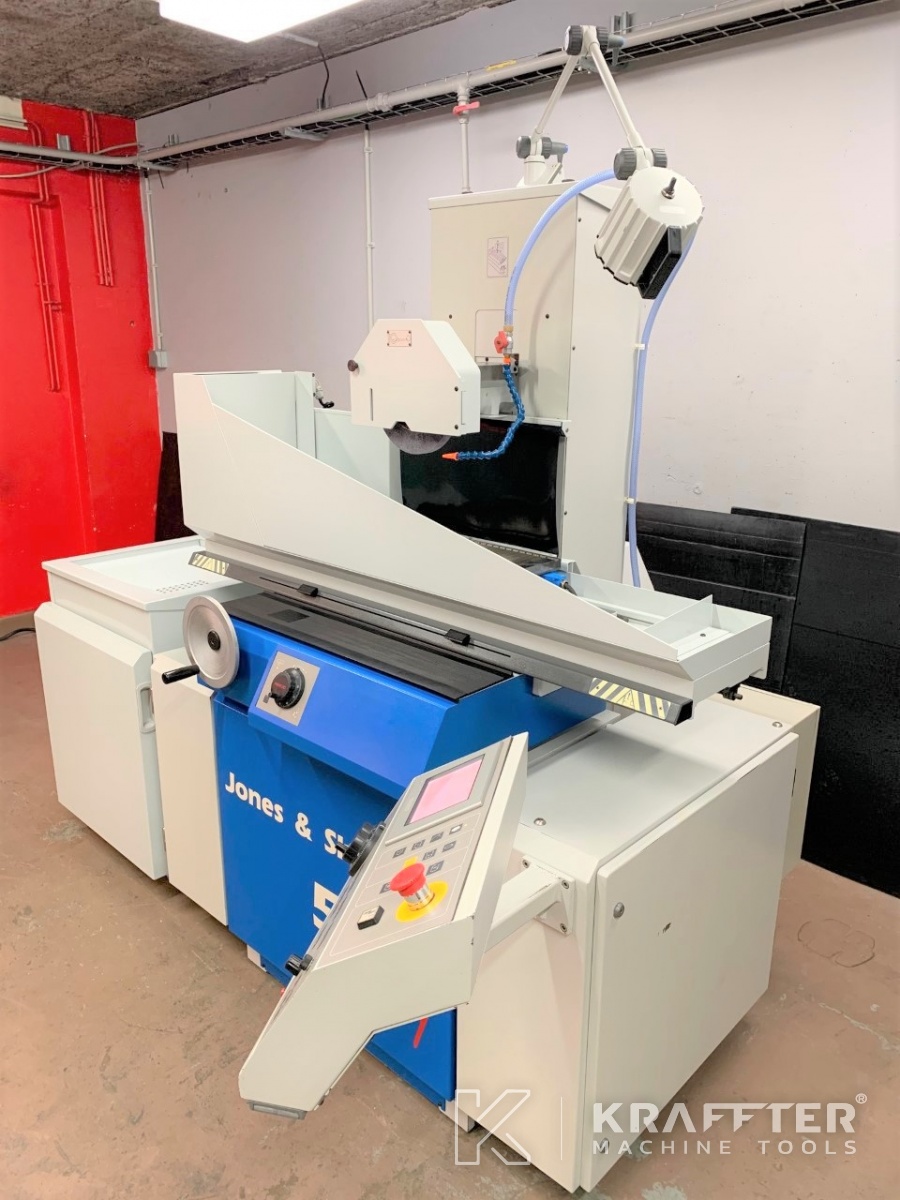

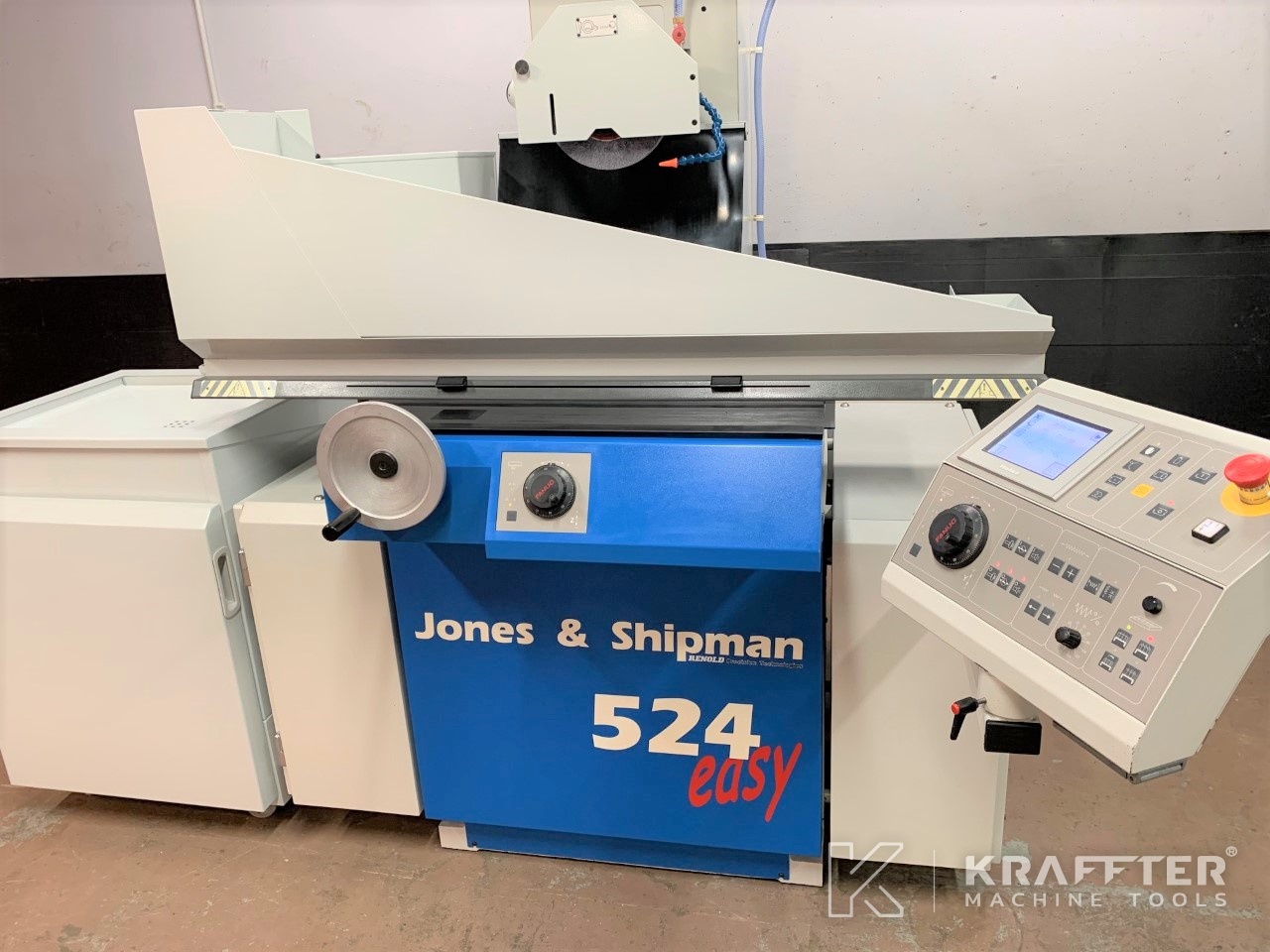

Unsere Maschinen : JONES & SHIPMAN 524 EASY

General description :

• Specifically designed to offer unrivalled ease-of-use coupled to the highest

levels of productivity

• Easy manual, semi or fully automatic operation

• ‘Self Teach‘ software enables inexperienced and experienced operators

alike to be immediately more productive

• Quick set automatic dressing and grinding cycles enable

unmanned operation

• Straight, facing, slotting or Vee form wheel macros

• Easy form dressing of complex profiles

• No optional complex dressing devices required

• Ability to use CBN and Diamond wheels

• Plunge, area, face, multi-plunge, multi-slot, multi-plunge and area

grind macros

• Easy down load/up load to PC, PDA and Network

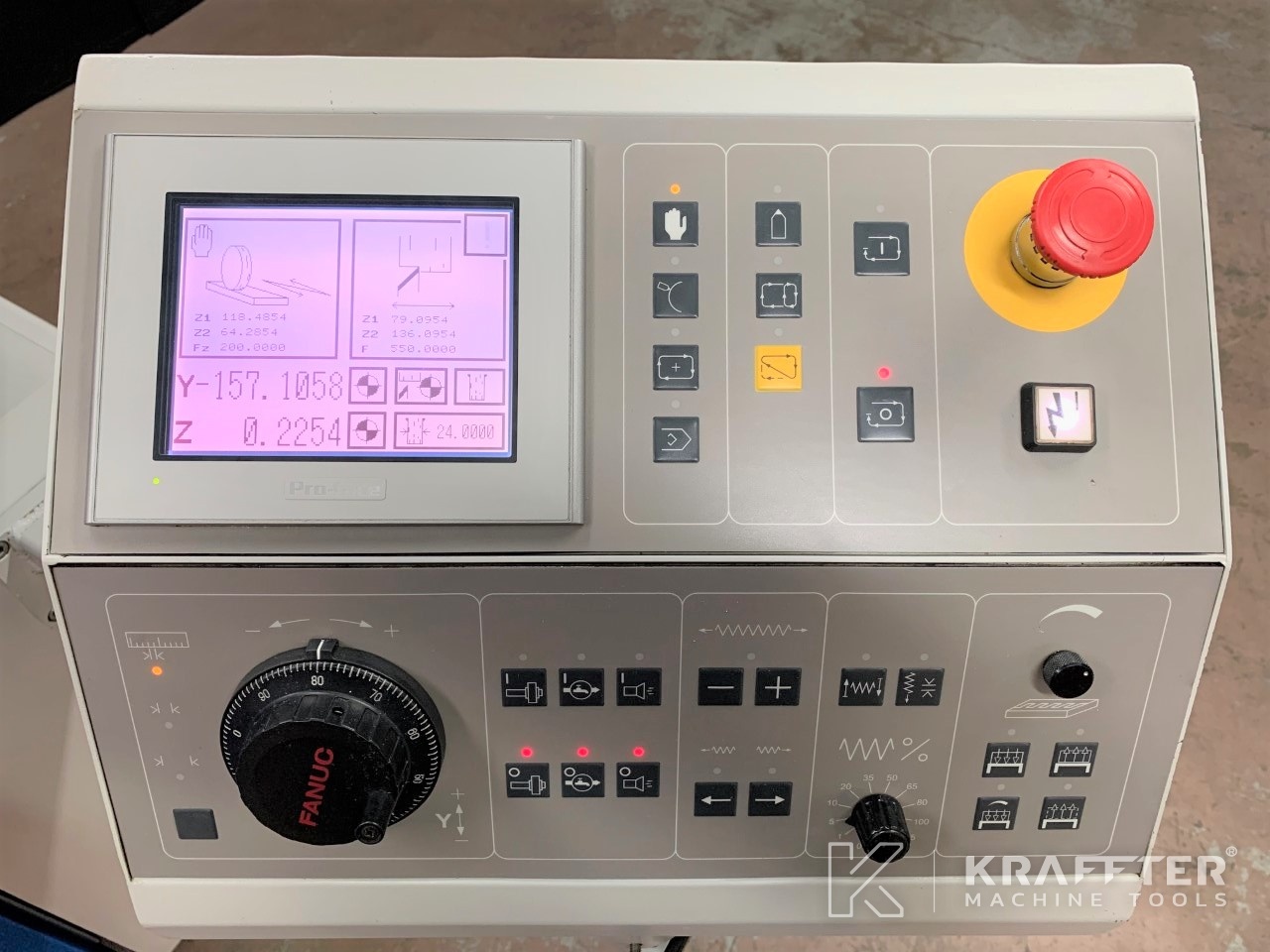

Grinding cycles setting-up :

• At start-up the operator is offered three simple options : Manual, Dress or Grind cycle mode

• In Manual Mode the Easy operates as a simple hand controlled machine, with manual dress and no setup procedures. Work speeds and feeds are adjustable via the touchscreen

• Dress Mode offers five standard wheel shape options, Flat, Slot, Facing, Vee form and Full ISO with one or two diamonds as needed.

Equipements et options :

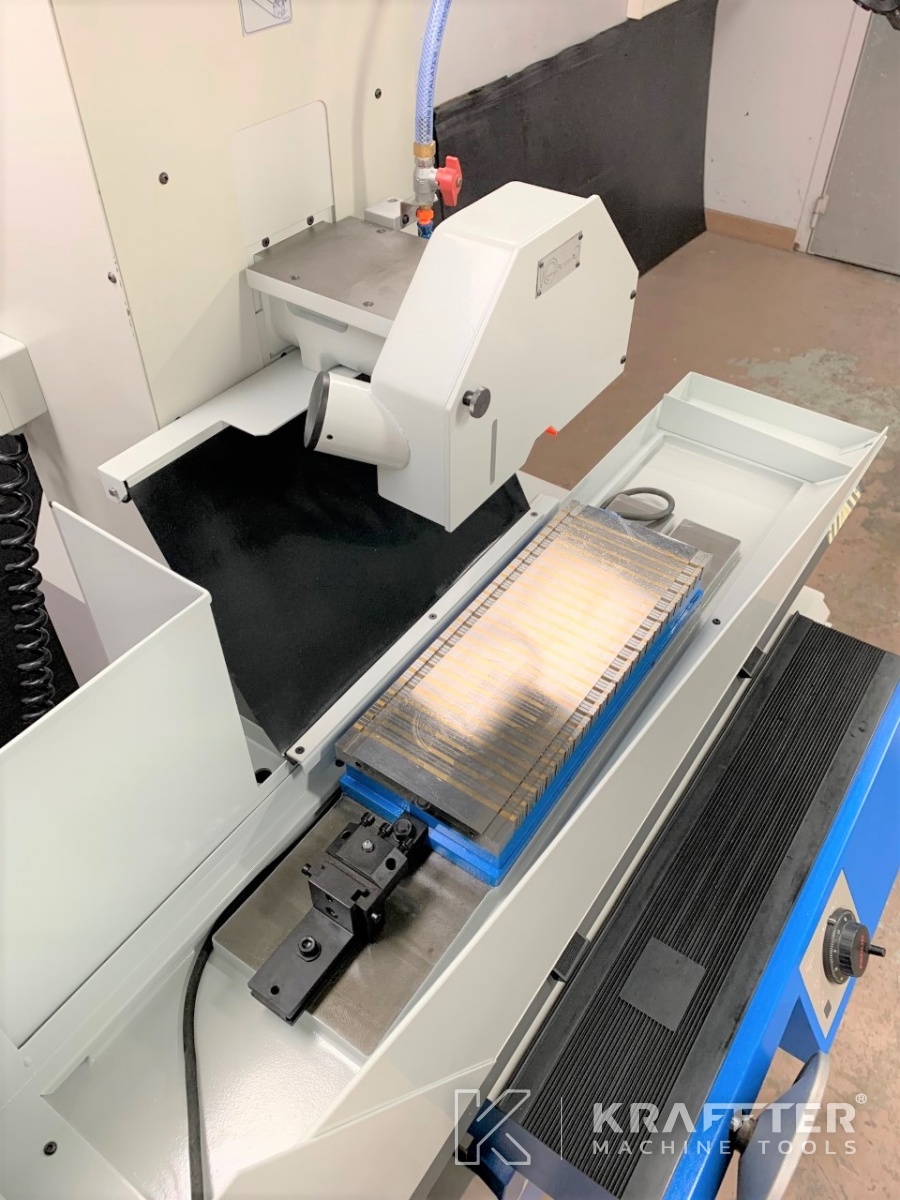

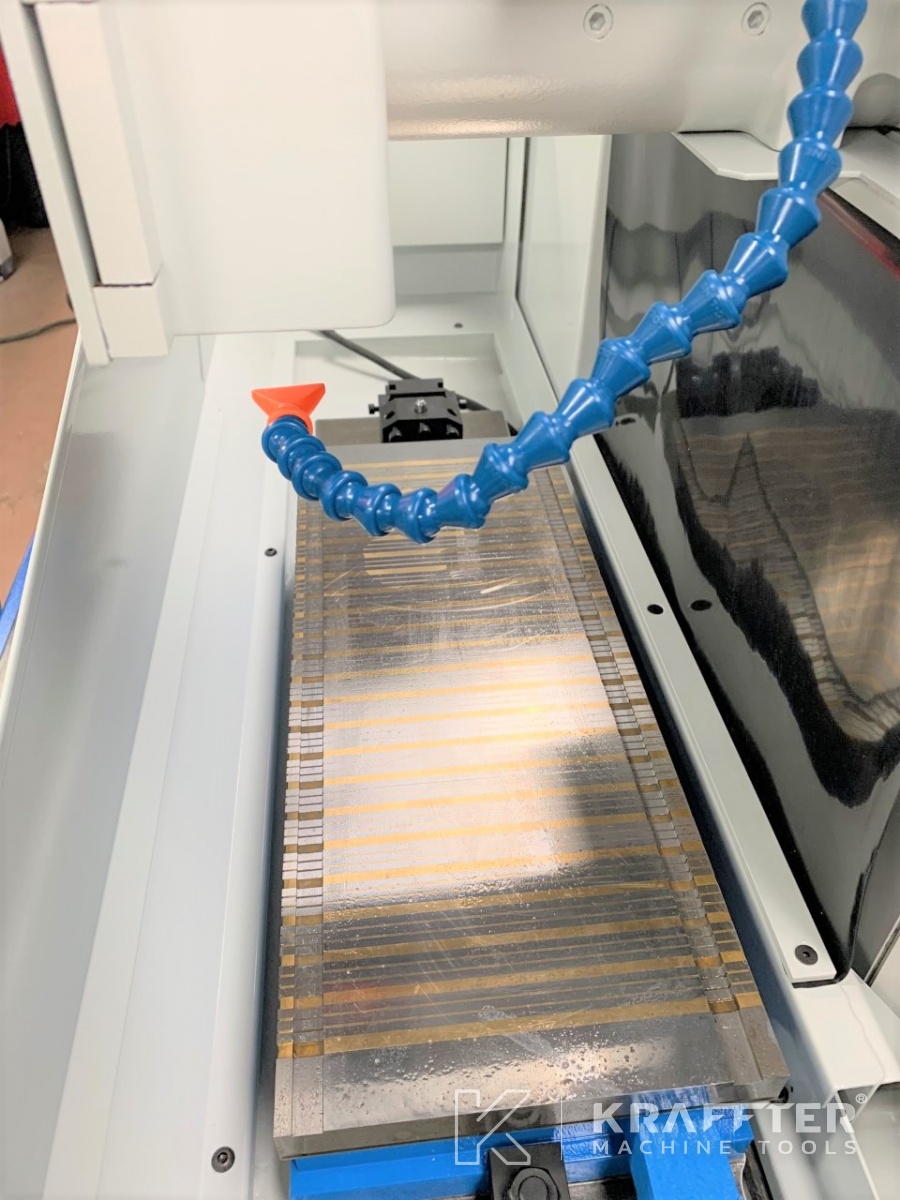

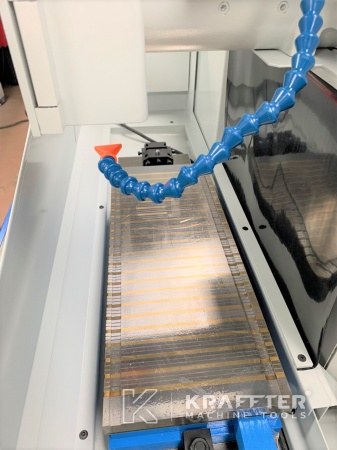

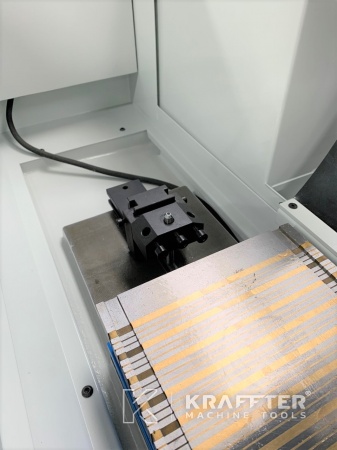

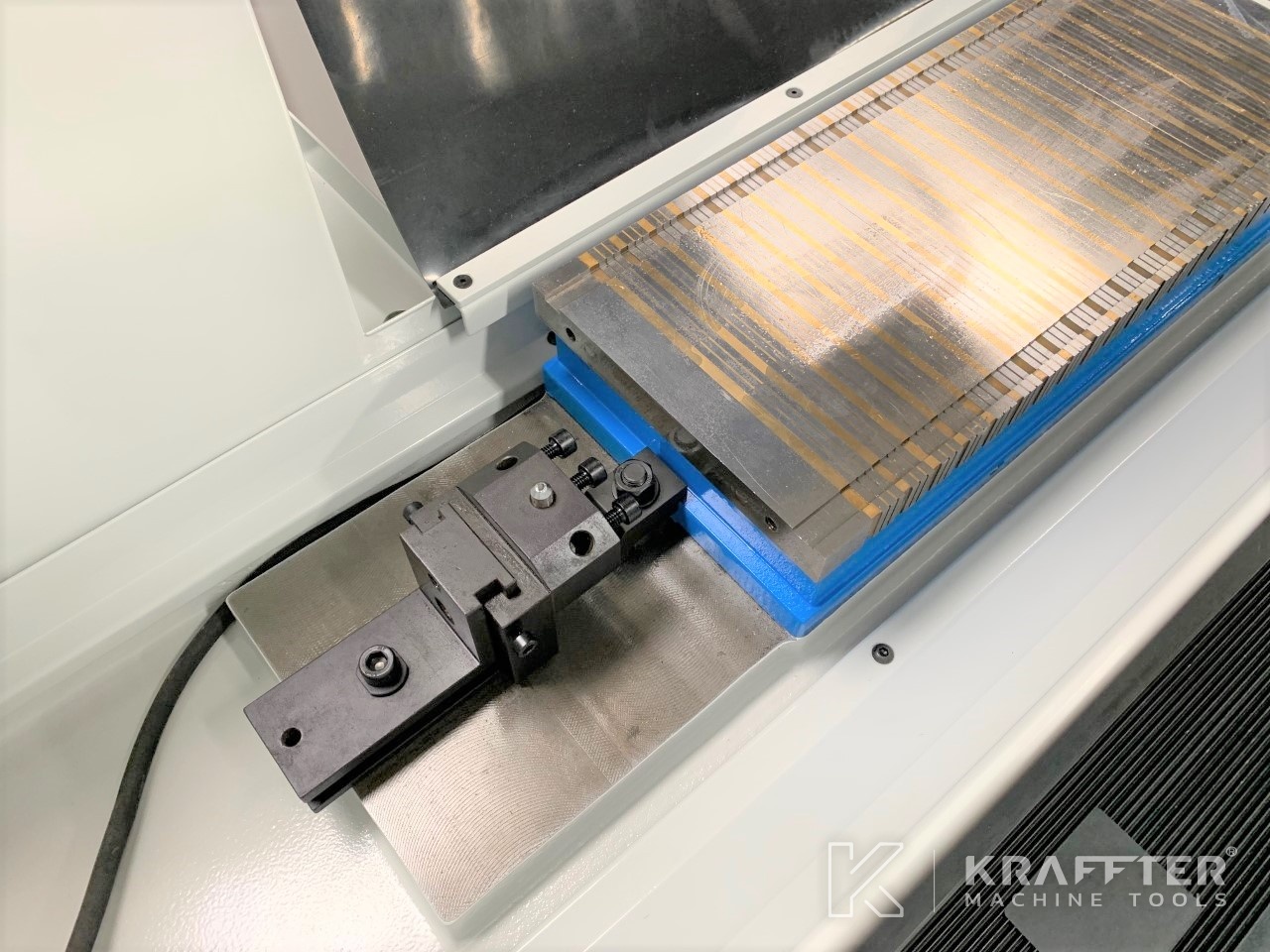

- 1x electro-magnetic clmaping plate WALKER BRAILLON MAGNETICS, clamping surface : 500 x 200 [mm]

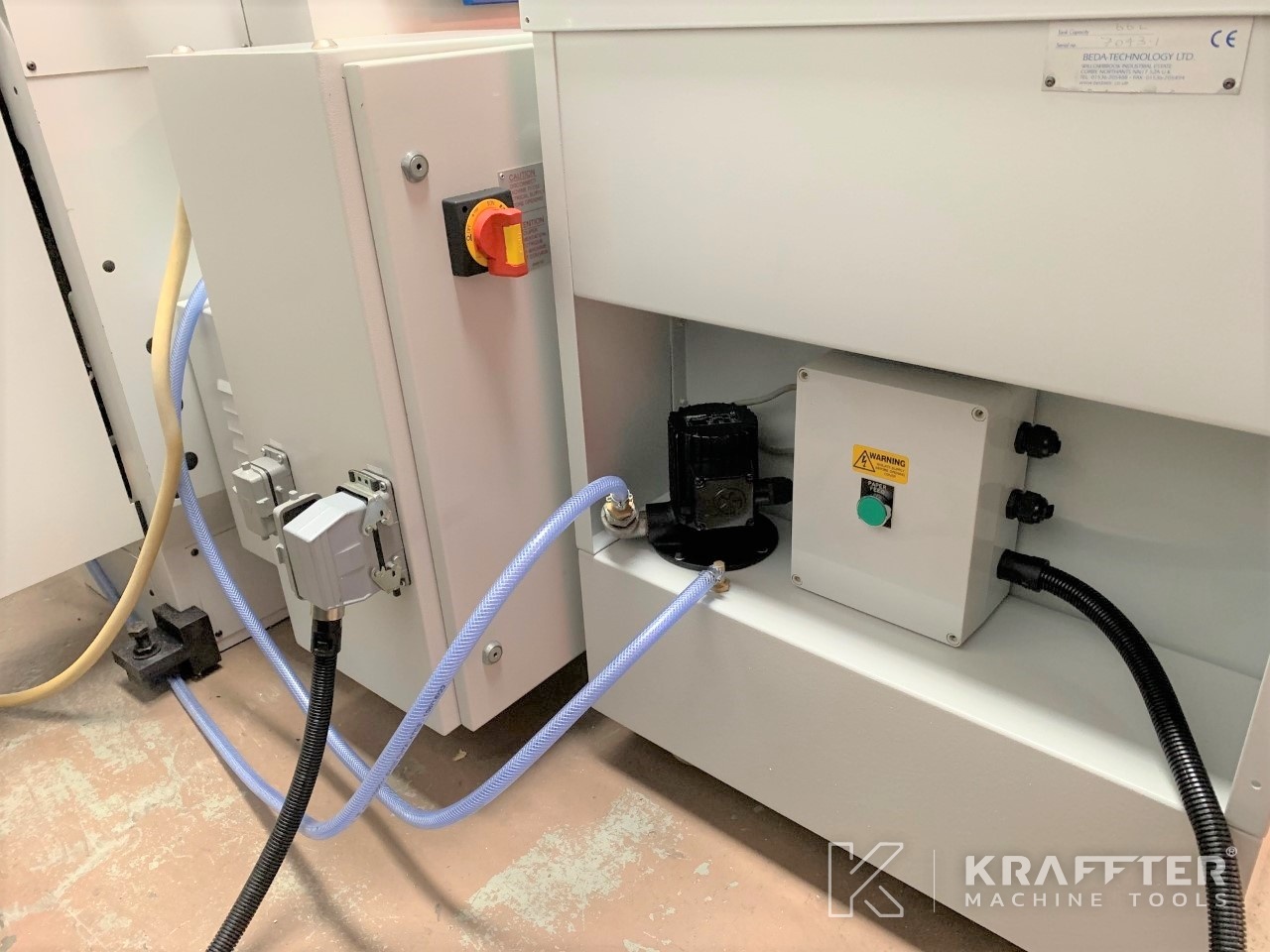

- 1x coolant unit (tank & pump)

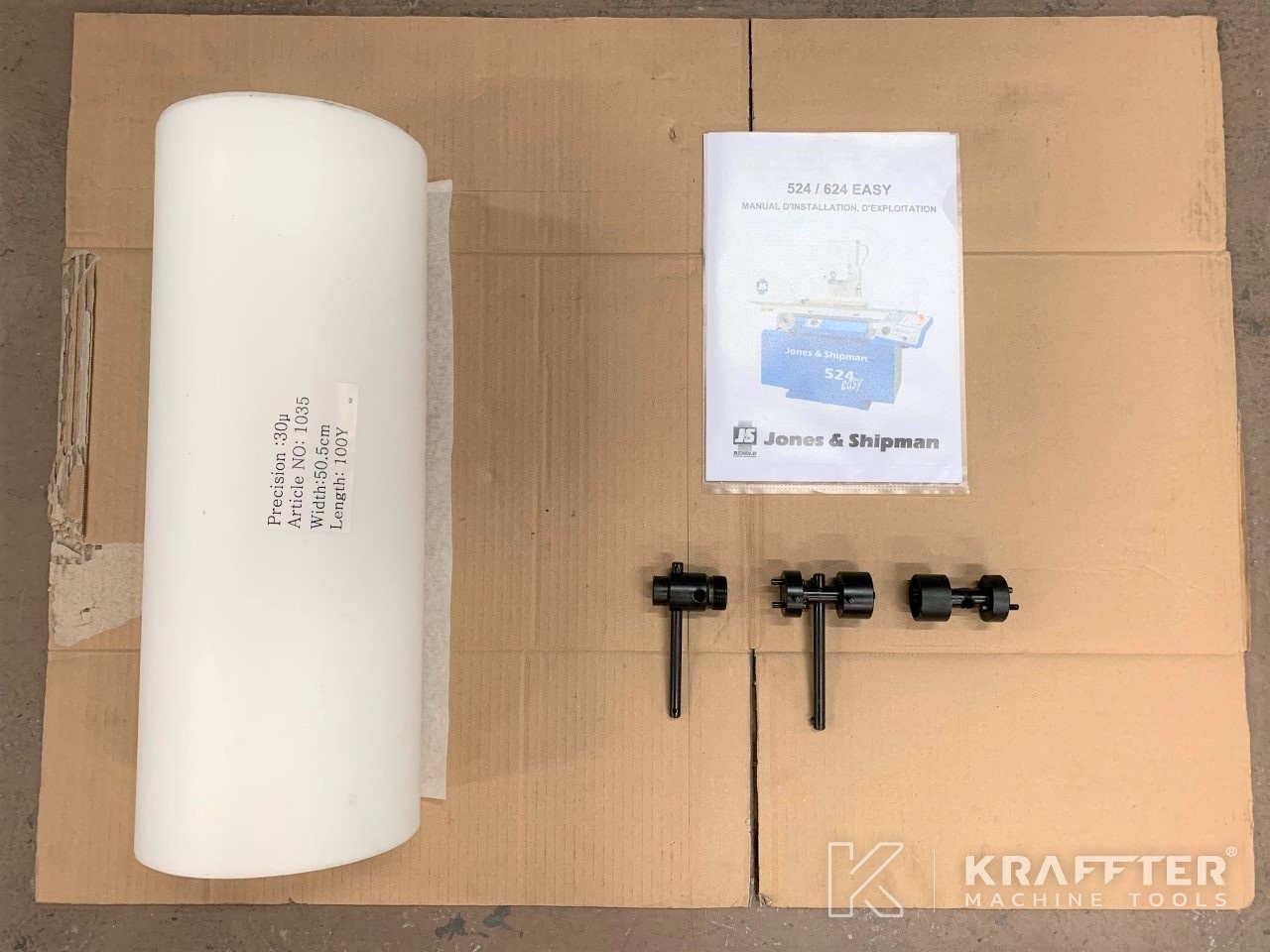

- 1x paper band filter roll 30 µm - NEW

- 1x halogen lamp

- 1x wheel dresser (up to 3 diamond positions possible)

- 1x wheel flange

- 1x grinding wheel

- 3x service keys

- 1x users & maintenance manual
