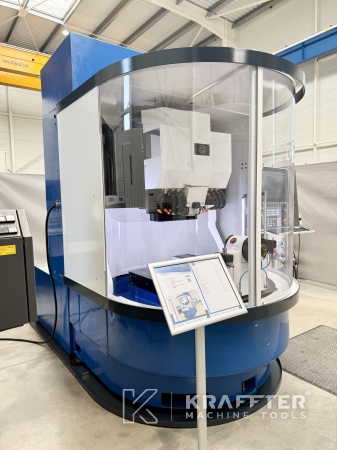

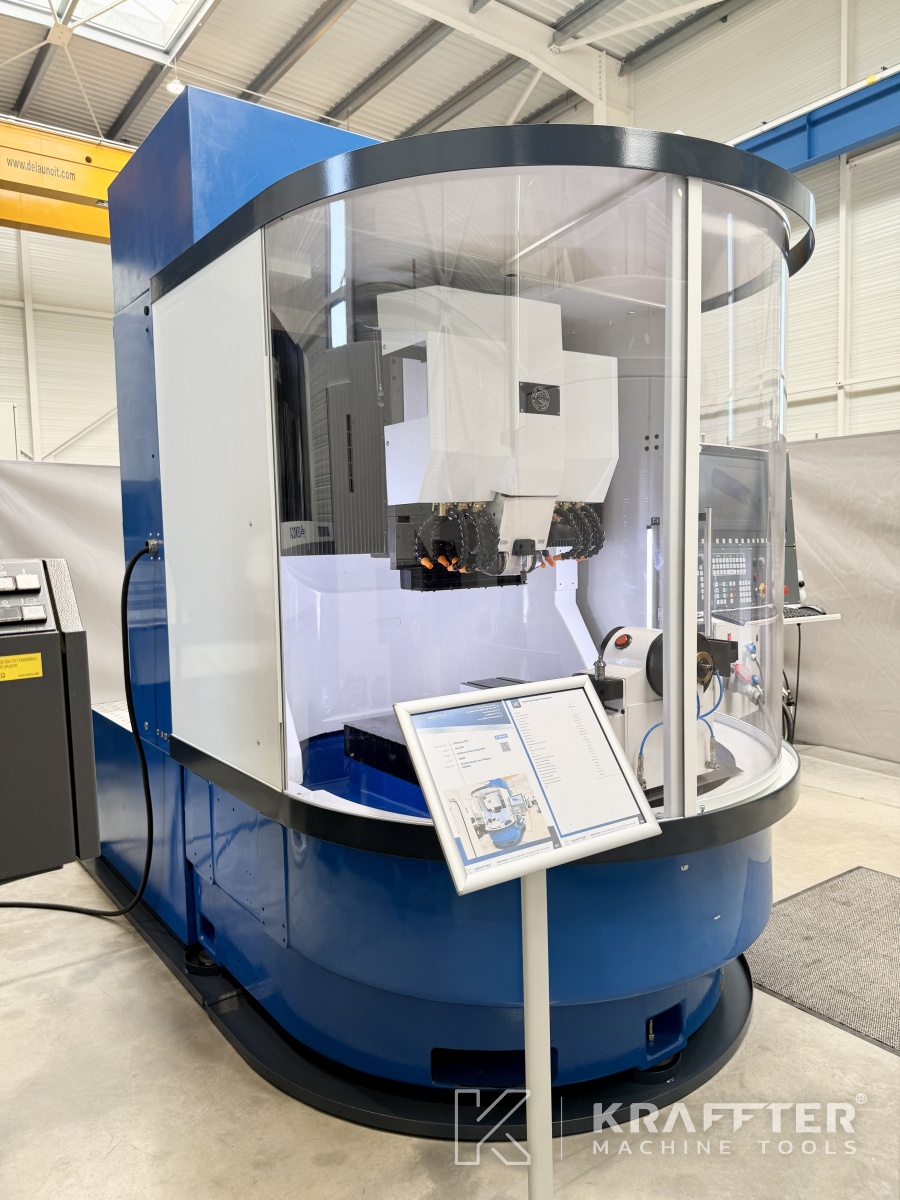

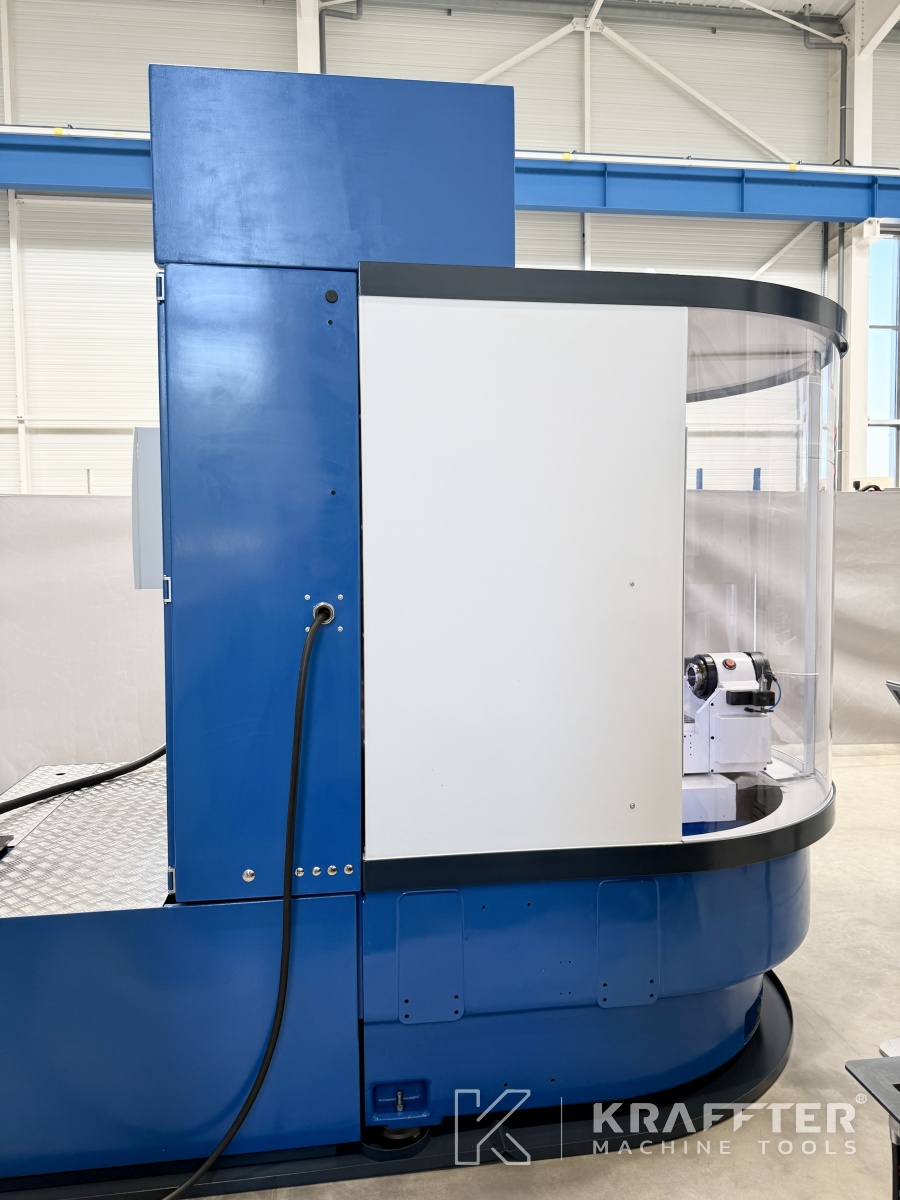

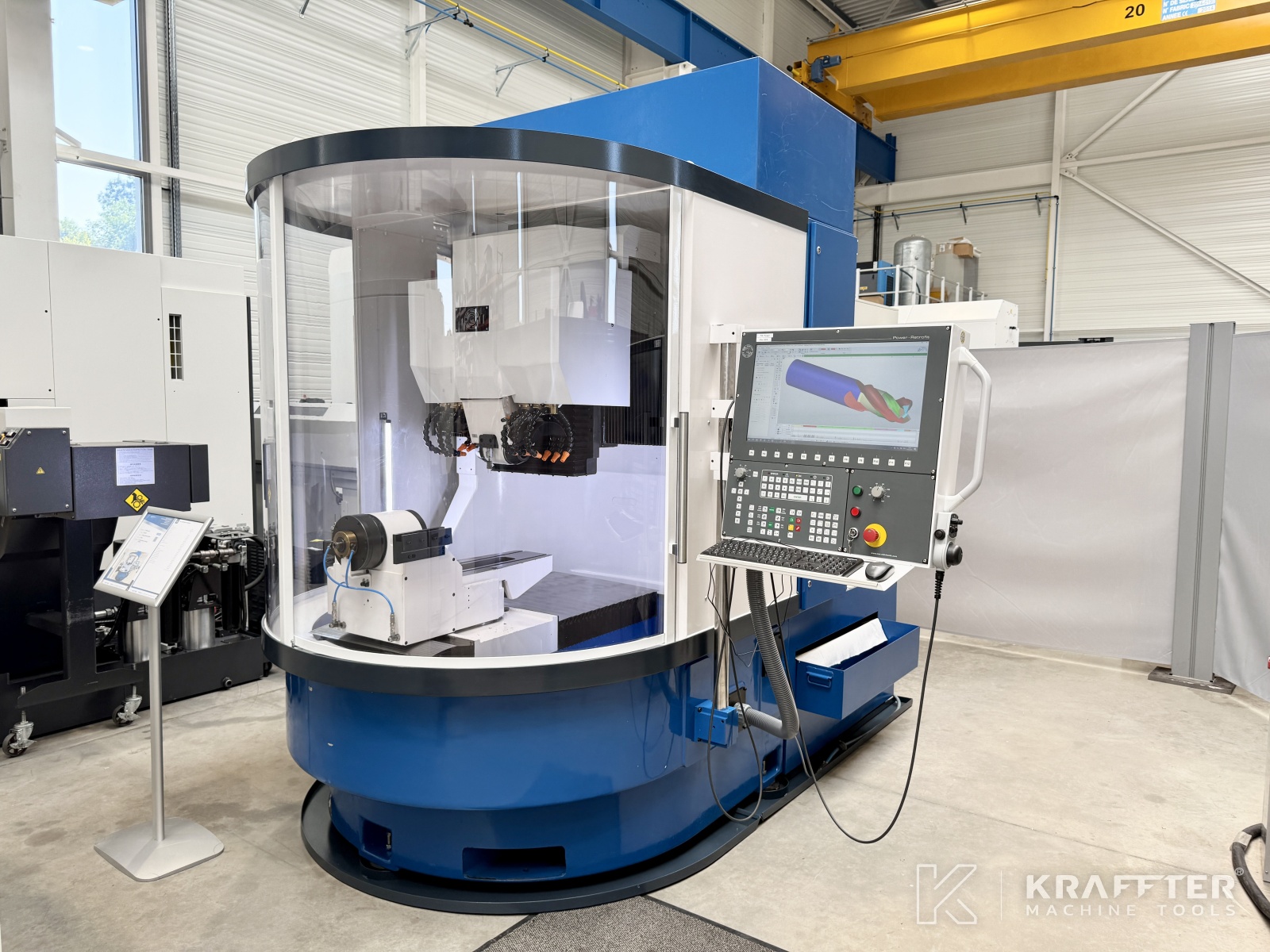

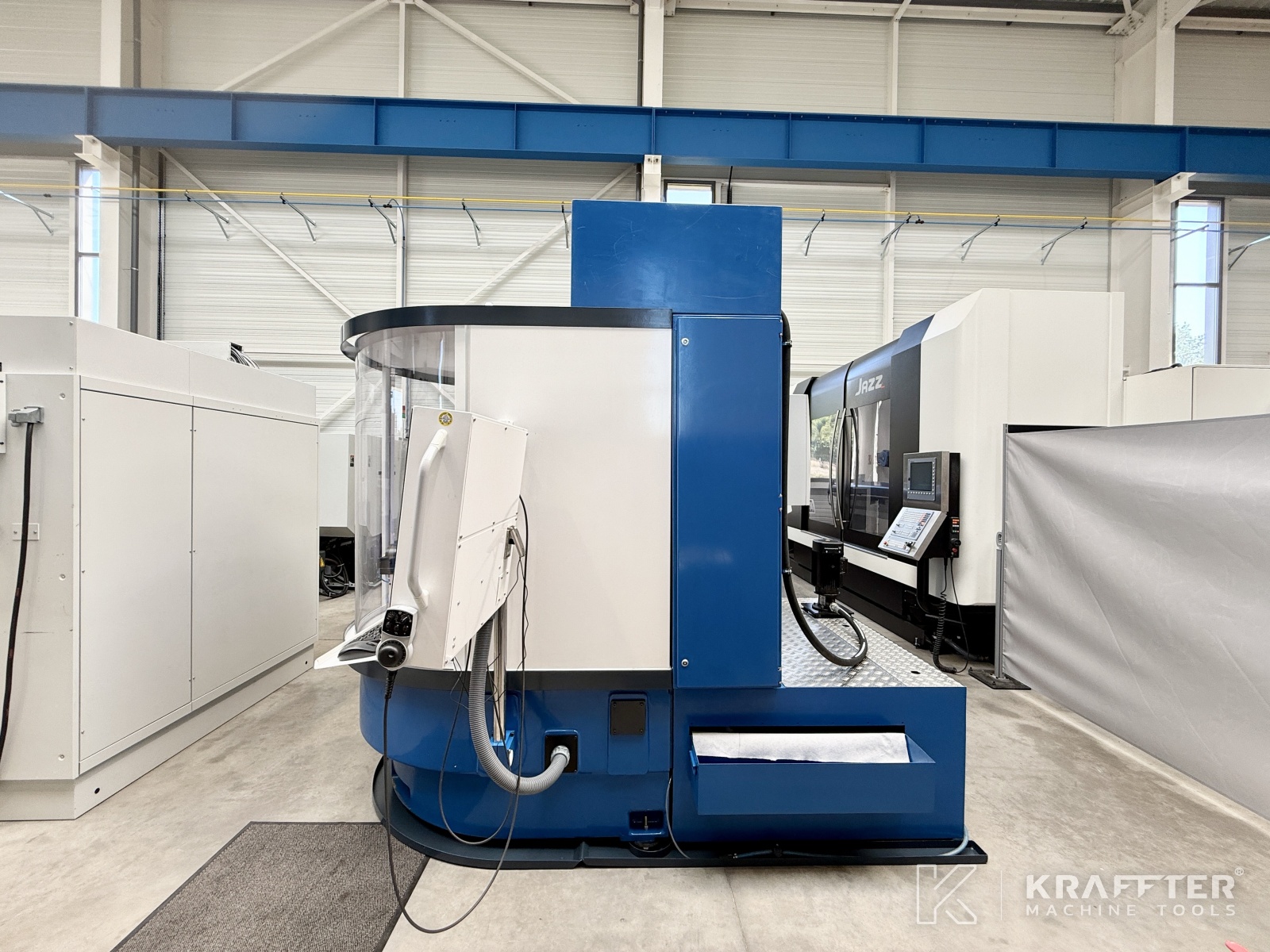

Maschinentyp: CNC-Schärfmaschine
Marke : WALTER
N° de stock: 90159
Modell : Helitronic Power Regrinder
Standort : 73240 St-Genix-les-Villages, FRANCE
MASCHINE VERKAUFT
Interessiert an einem ähnlichen Modell?
Hinterlassen Sie uns Ihre Kontaktdaten:
Technische Daten
CN-Typ
NUM
Installierte Softwareversion
NUMROTO Plus
Farbiger Touchscreen
Ja
Anzahl Achsen
5
Spitzenhöhe
190
Verfahrweg X-Achse
490 [mm]
Auflösung X-Achse
0.00001 [mm]
Verfahrweg Y-Achse
320 [mm]
Auflösung Y-Achse
0.00001 [mm]
Verfahrweg Z-Achse
660 [mm]
Auflösung Z-Achse
0.00001 [mm]
Eilganggeschwindigkeit X, Y und Z
15000 [mm/min]
Verfahrweg A-Achse
360 [°]
Schnellvorschubgeschwindigkeit Achse A
100 [mm/min]
Verfahrweg C-Achse
+/- 200 [°]
Auflösung C-Achse
0.0001 [°]
Max. Werkstücklänge: Stirnschleifen
320 [mm]
Max. Schärflänge
370 [mm]
Max. Schärfdurchmesser
320 [mm]
Durchmesser der Schleifscheibenspindel
70 [mm]
Max. Drehzahl der Schleifscheibenspindel
9500 [U/min]
Leistung Schleifscheibenspindel
11.5 [kW]
Max. Schleifscheibendurchmesser
150 [mm]
Innenkonus Werkstückspindel
ISO 50
Max. Drehzahl Werkstückspindel
100 [U/min]
Arbeitszeit
3485 [h]
Gewicht
4450 [kg]
Zusätzliche Informationen
INCLUDED EQUIPMENT:

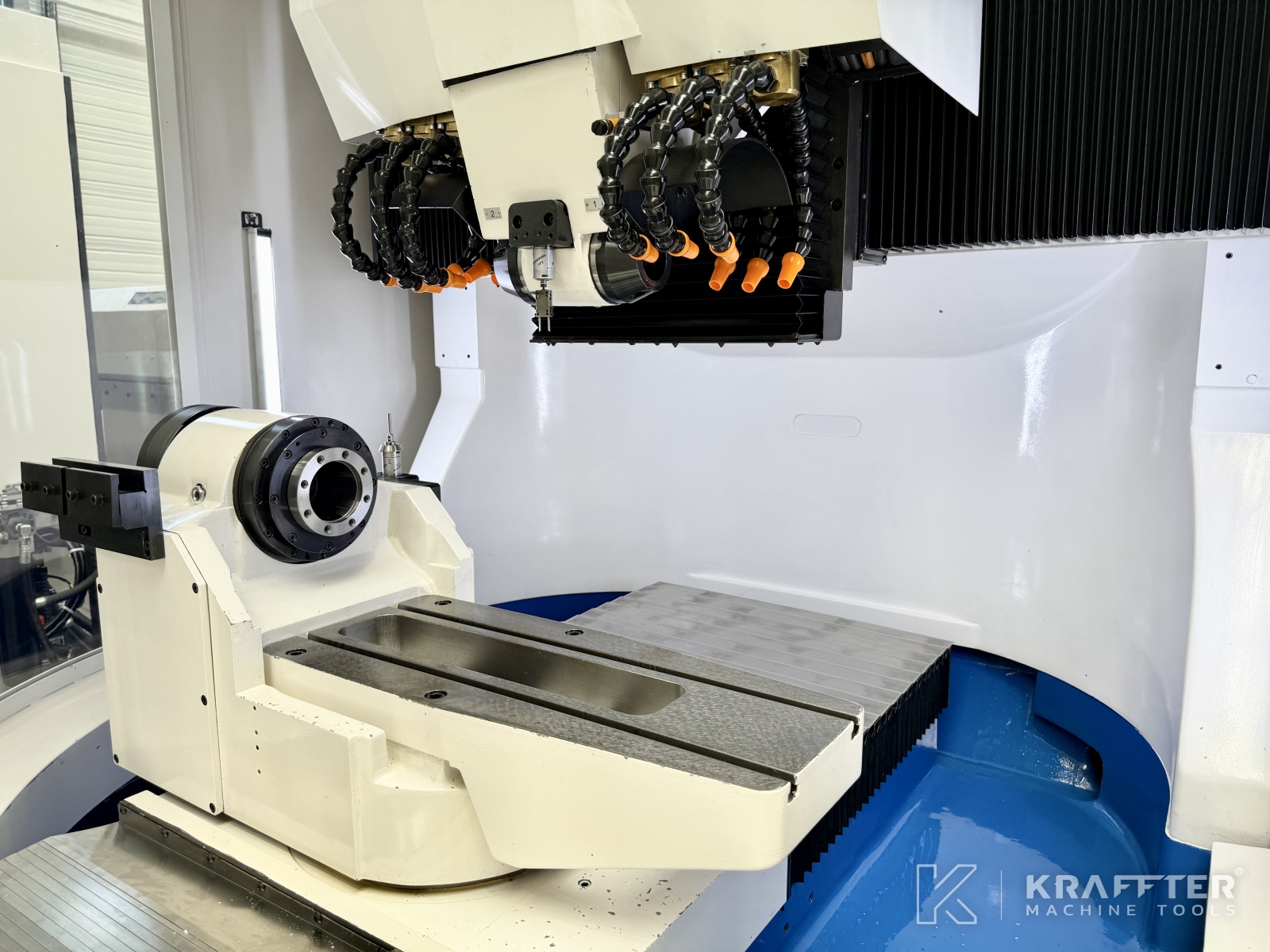

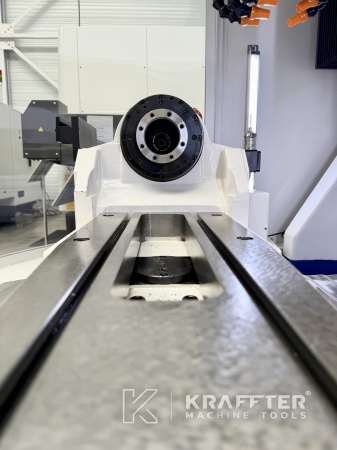

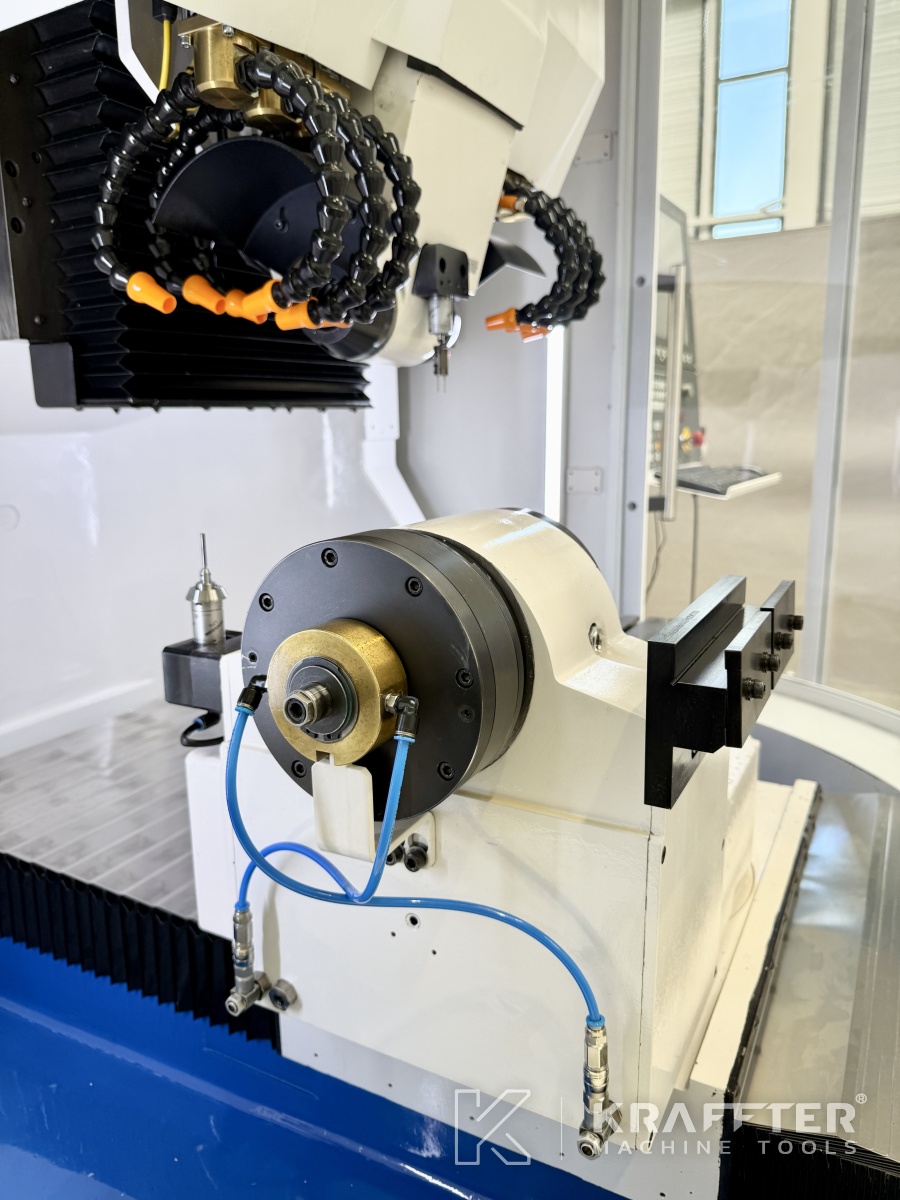

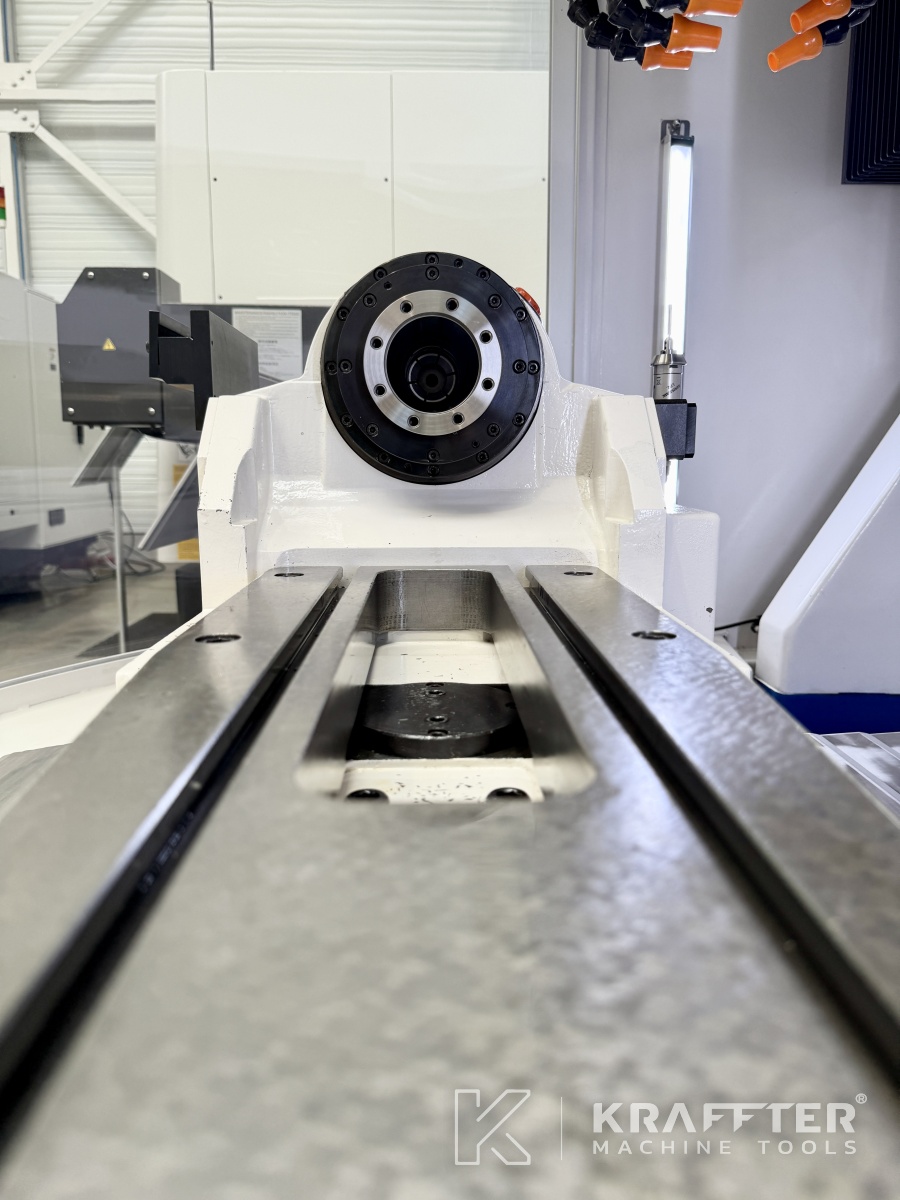

- x1 Automatic clamping ISO 50

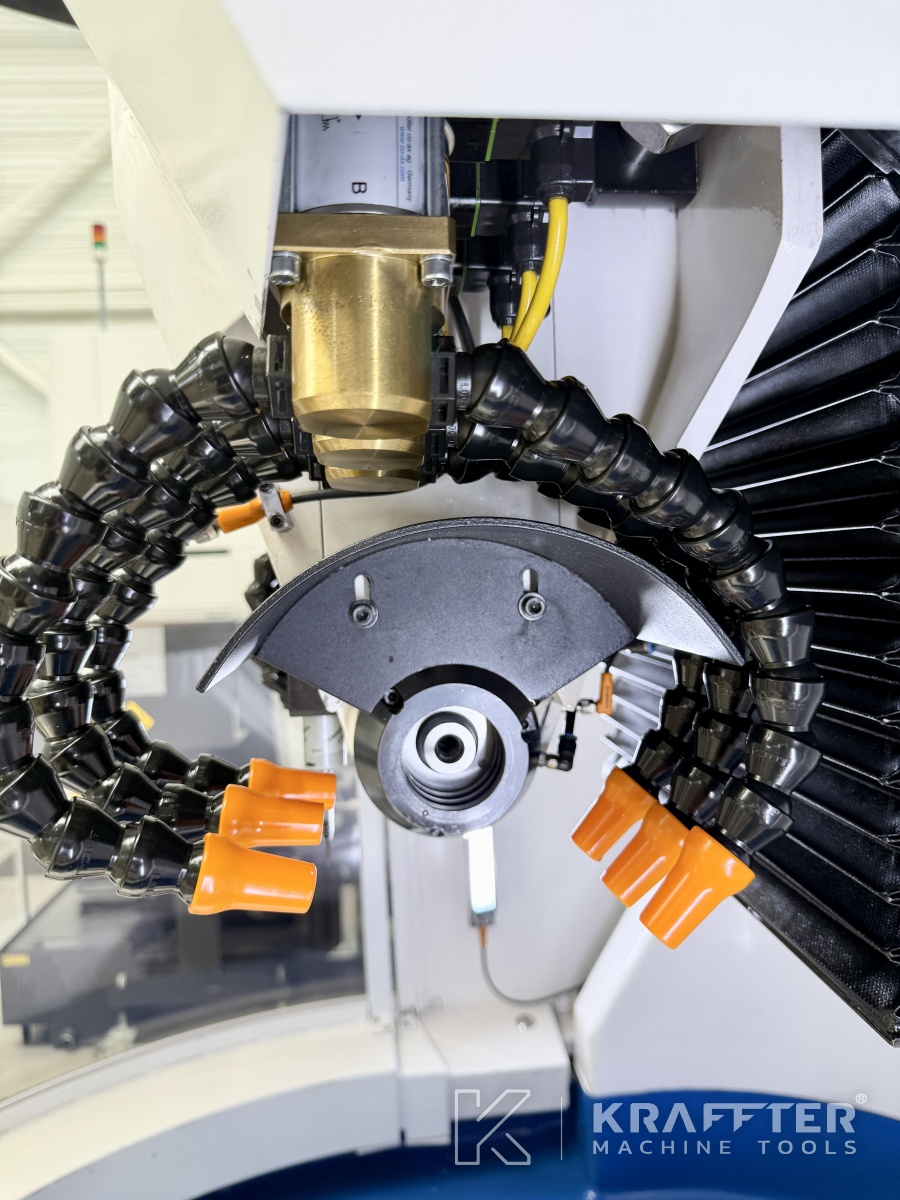

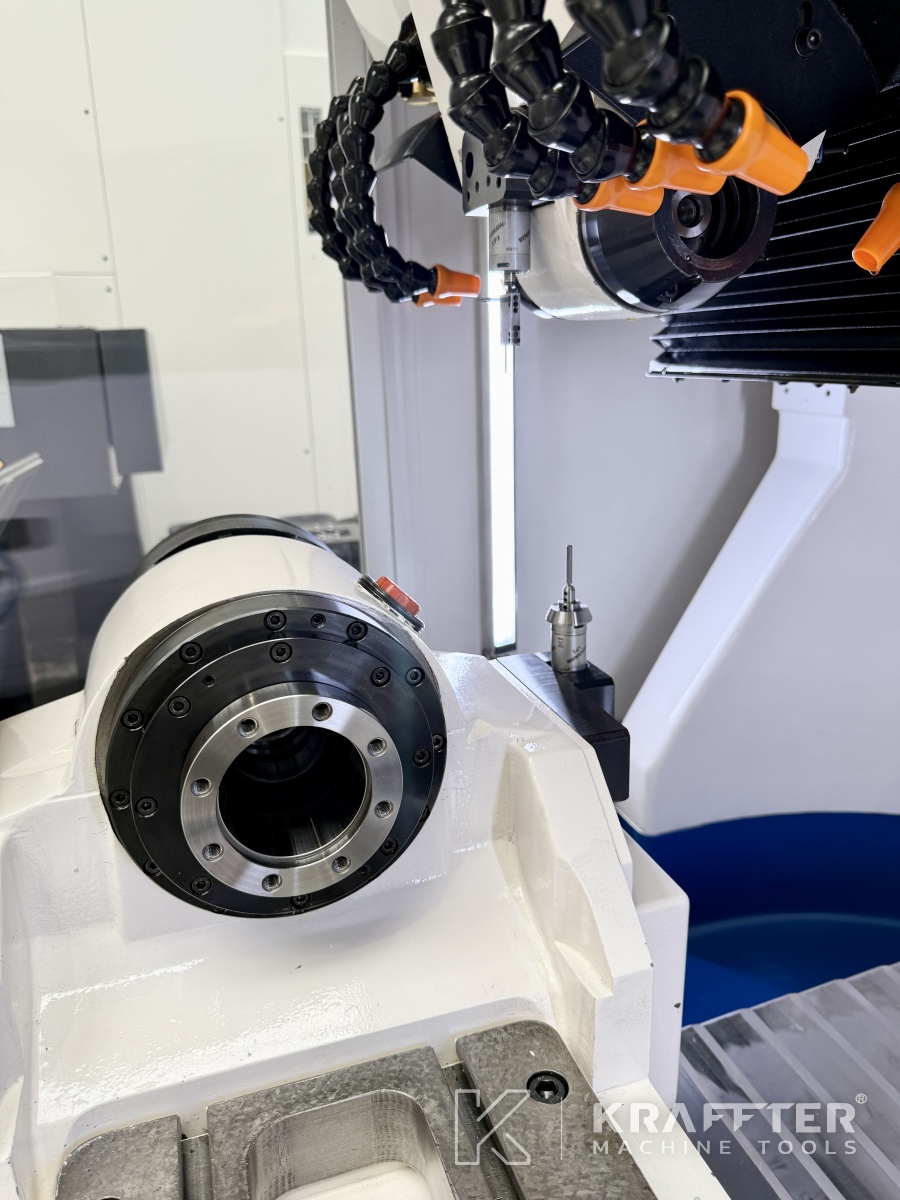

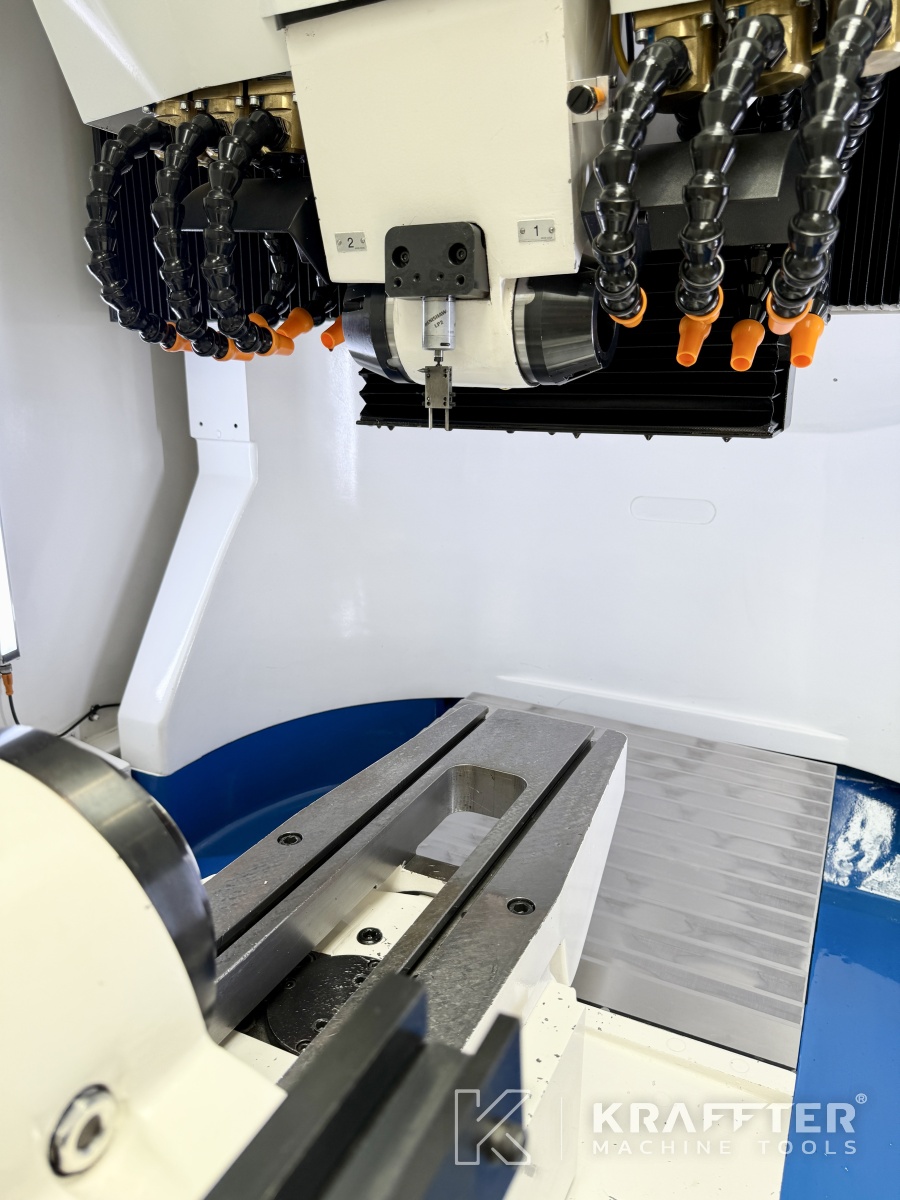

- x1 RENISHAW tool probe, type LP2DD

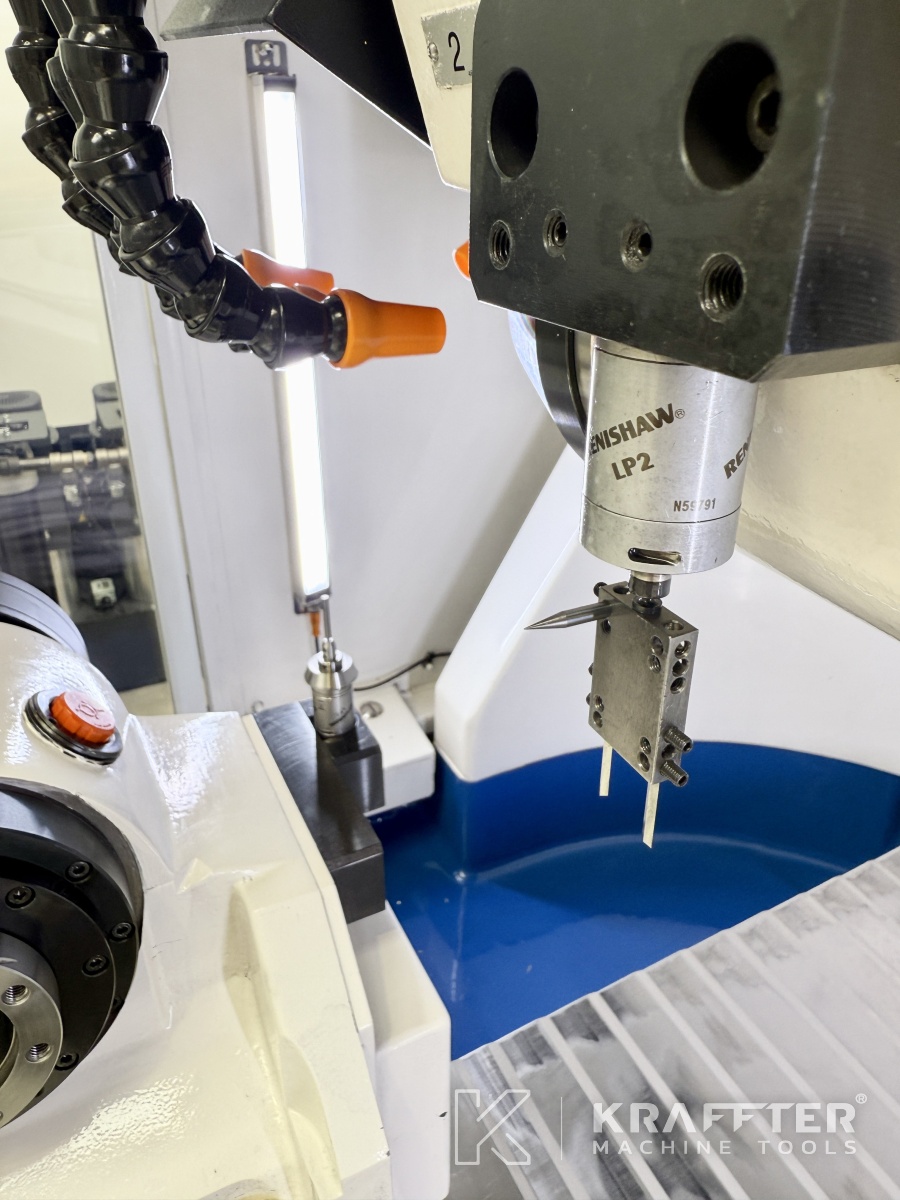

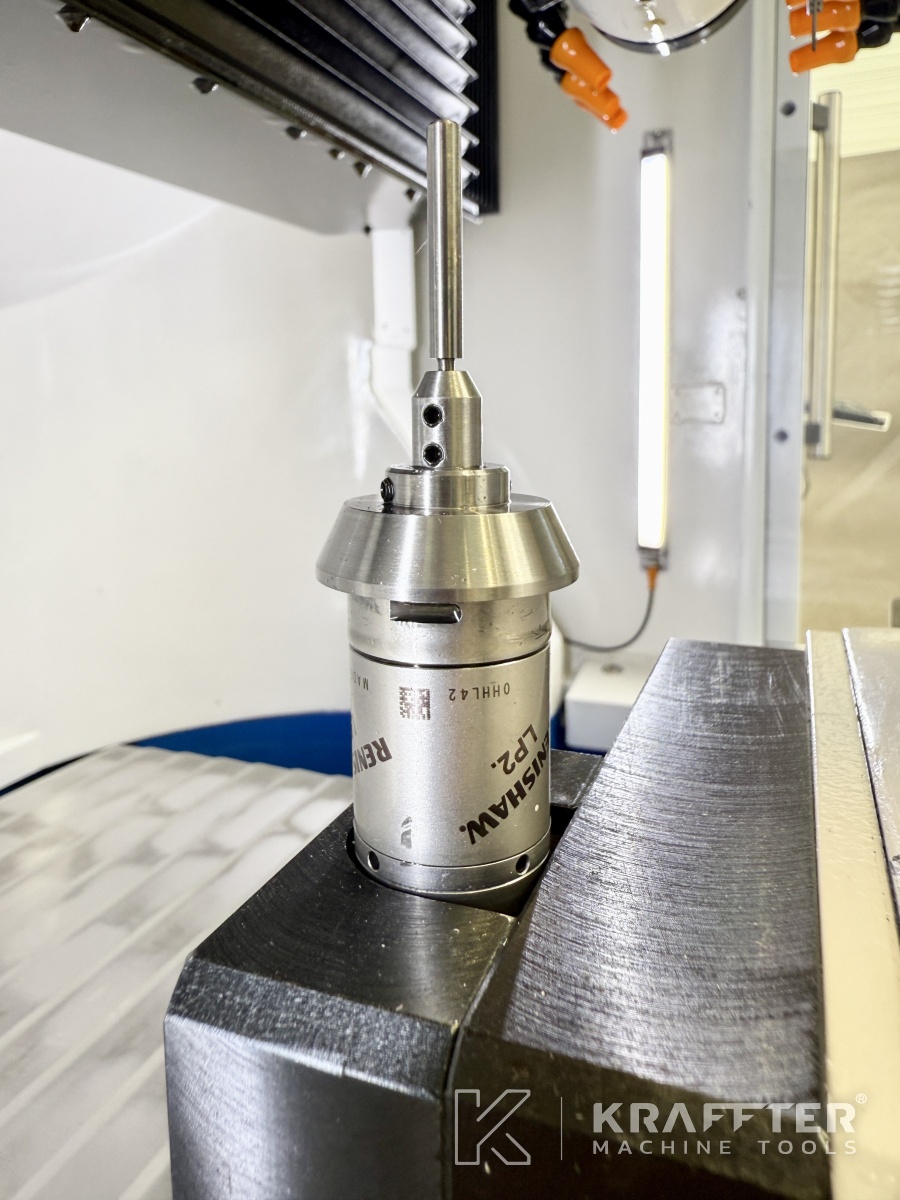

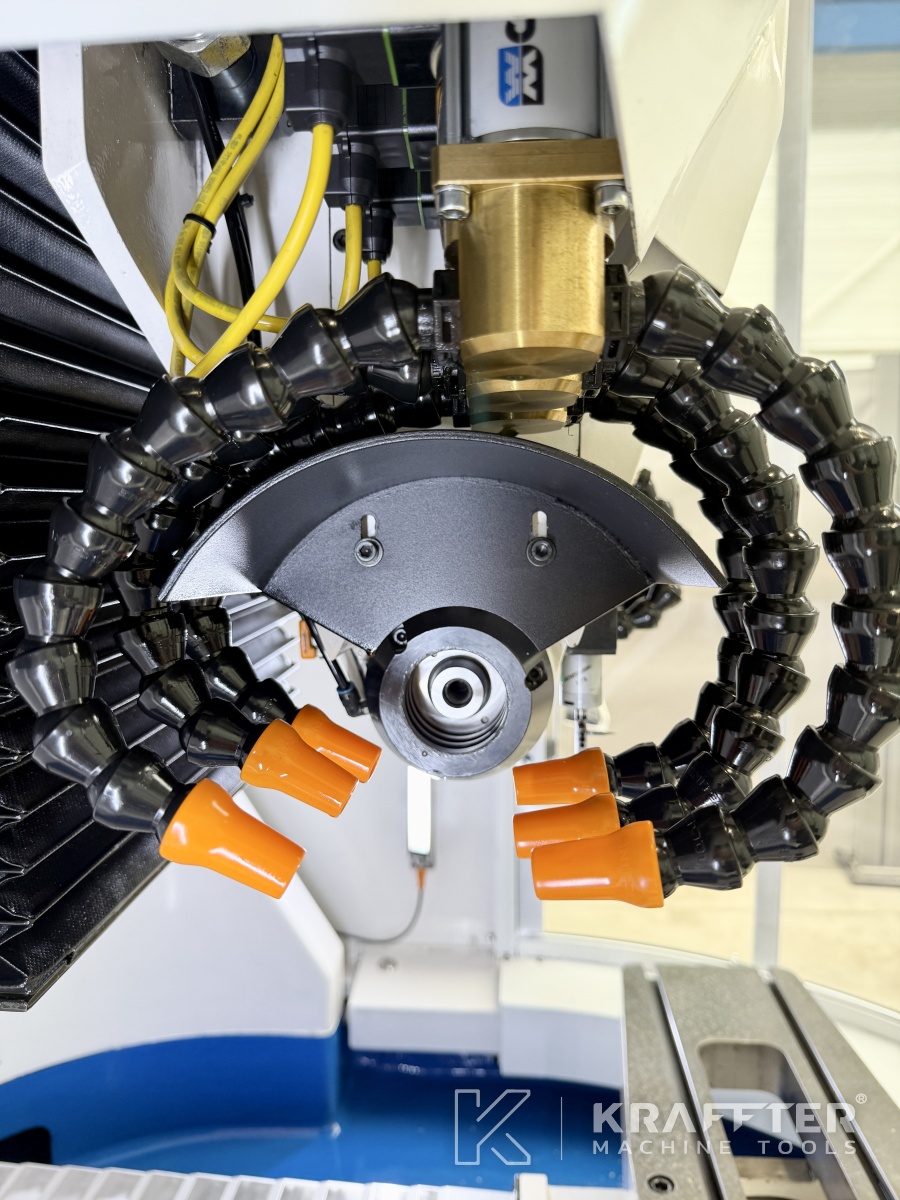

- x1 RENISHAW wheel probe, type LP2DD

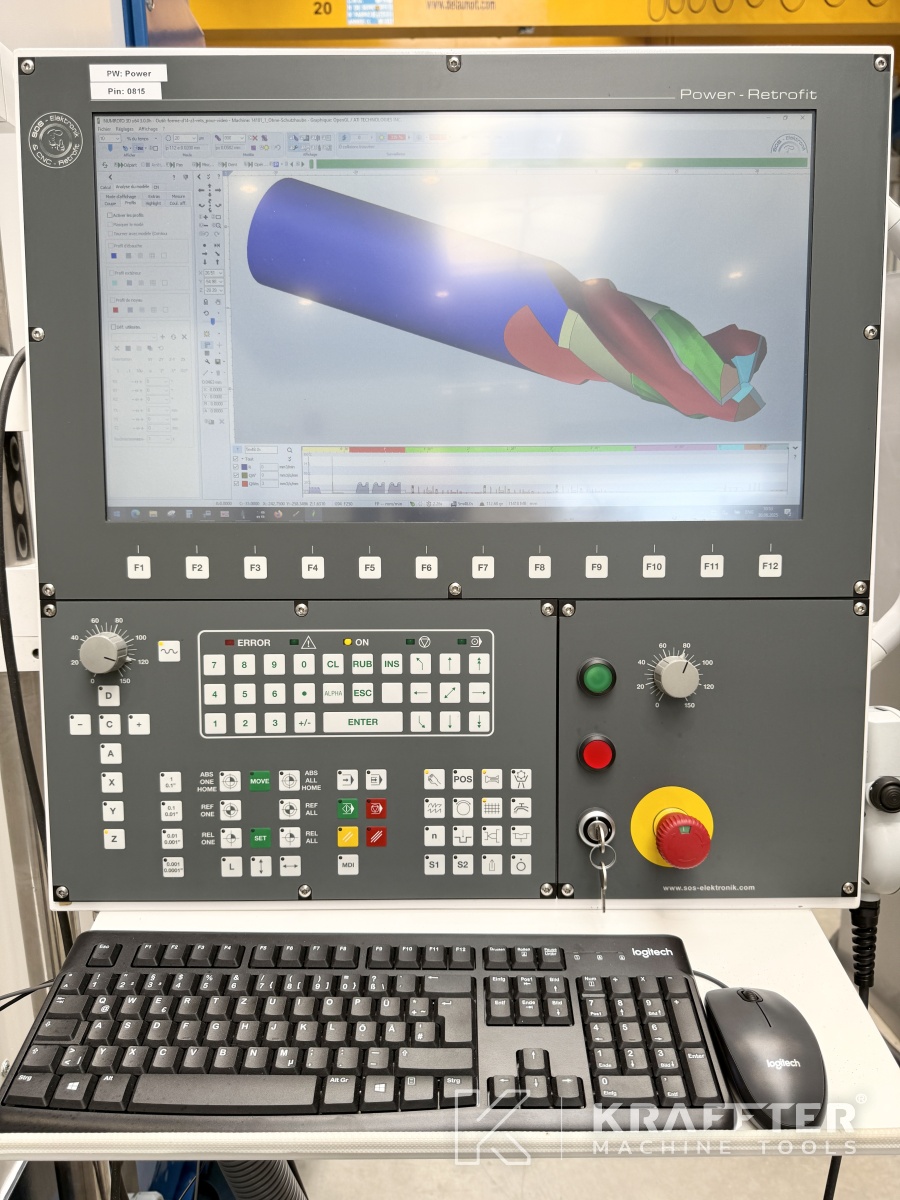

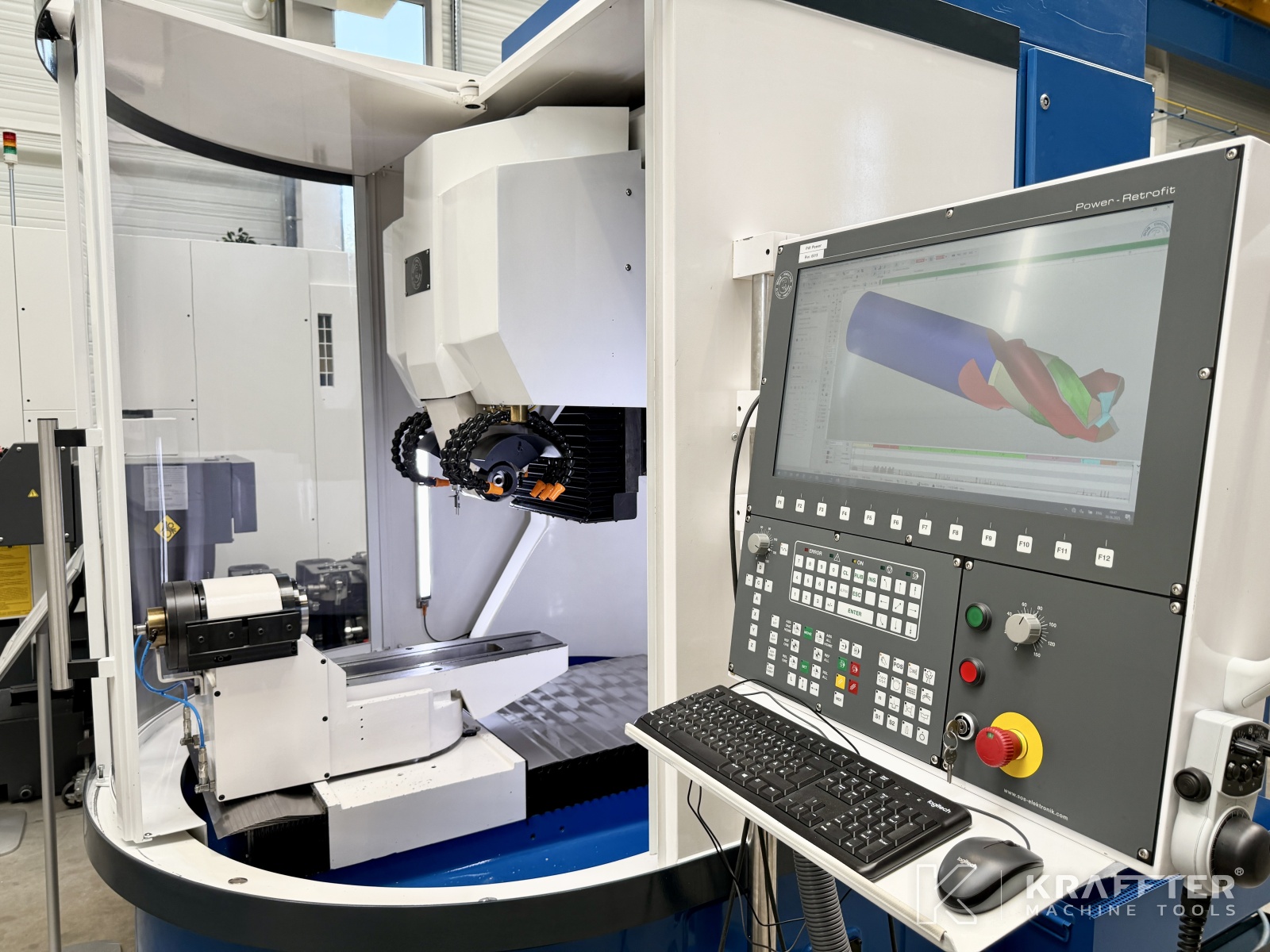

- x1 HMI computer - Intel core i5 – Windows 10
- x1 24" TFT touchscreen monitor

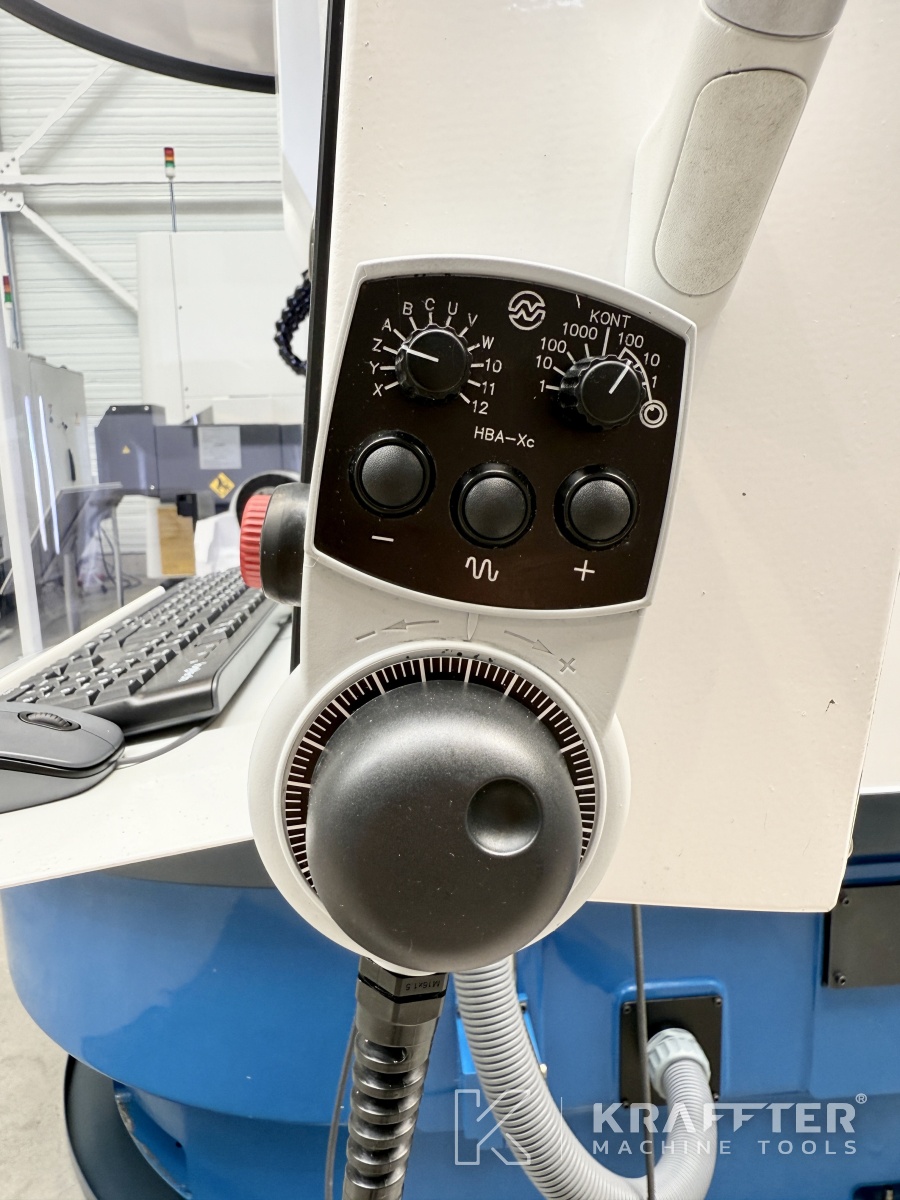

- x1 Remote electronic handwheel – NUM Flexium

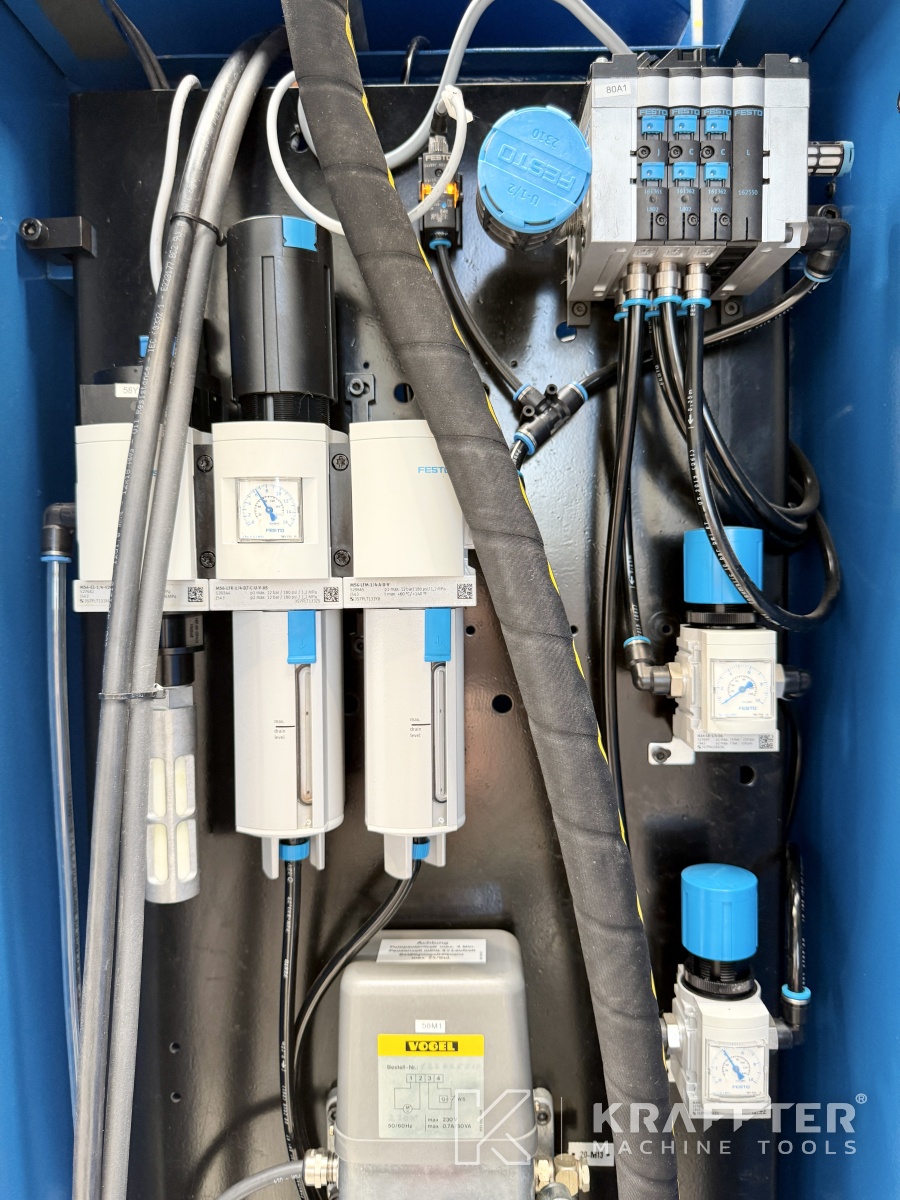

- x1 Centralized lubrication unit

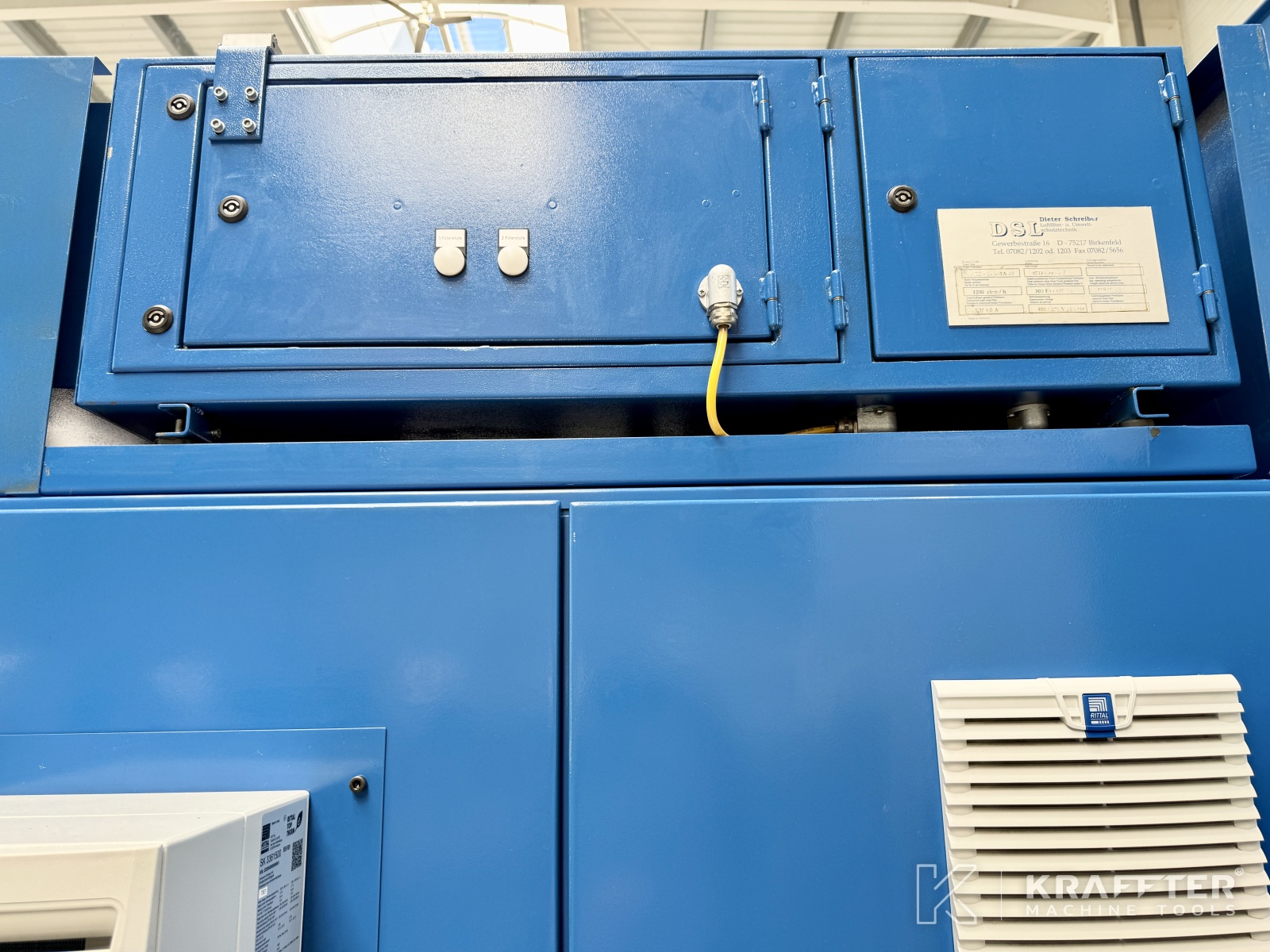

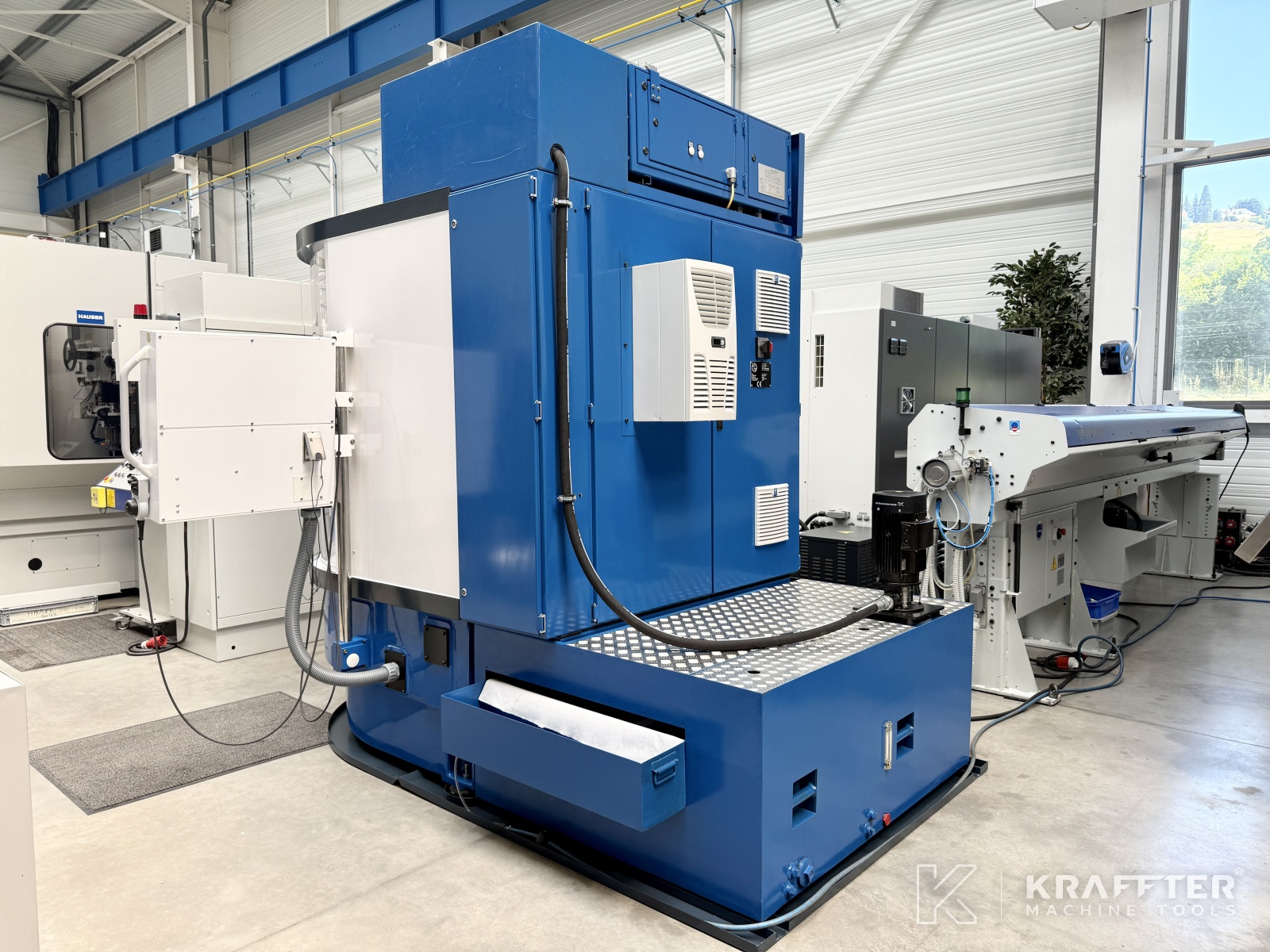

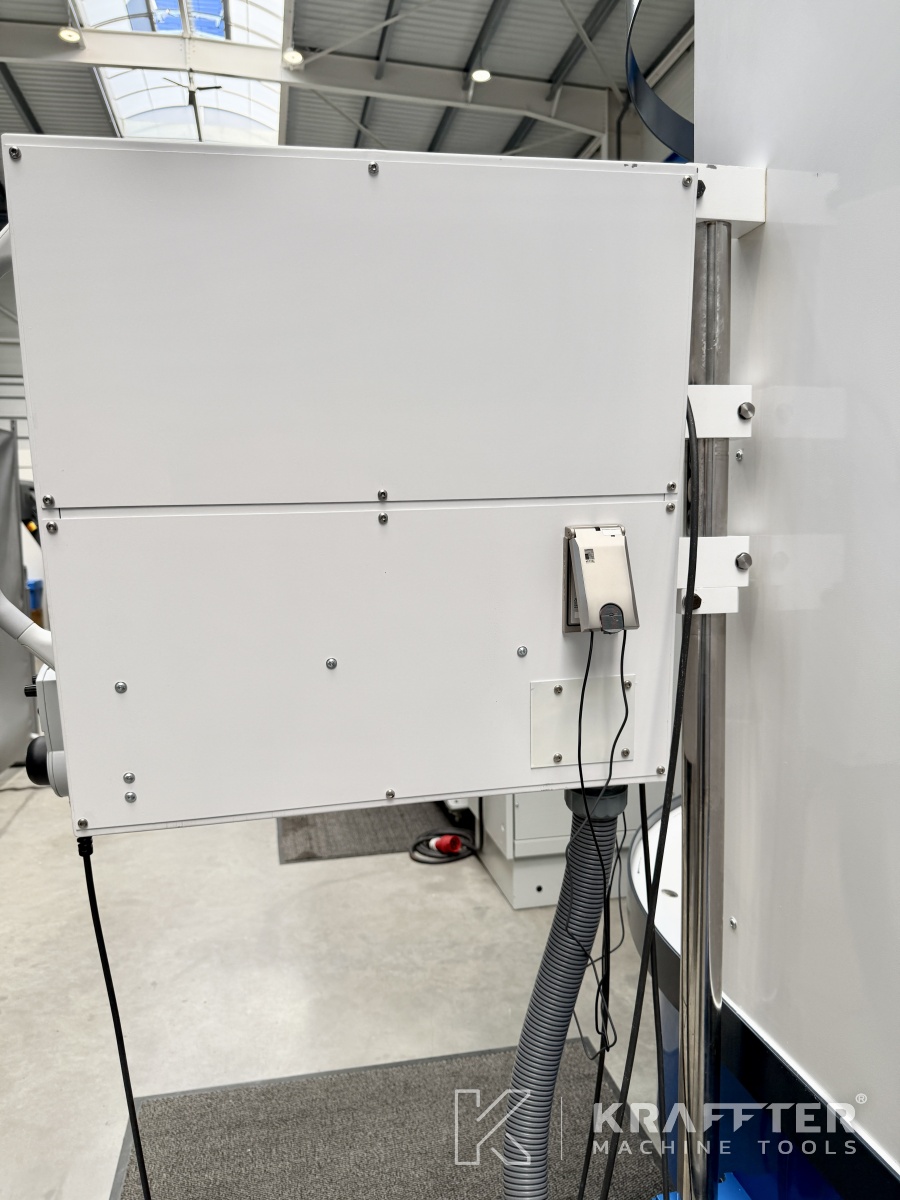

- x1 Mist extractor – DSL AIR TECHNOLOGY, type AES-SIGMA 20

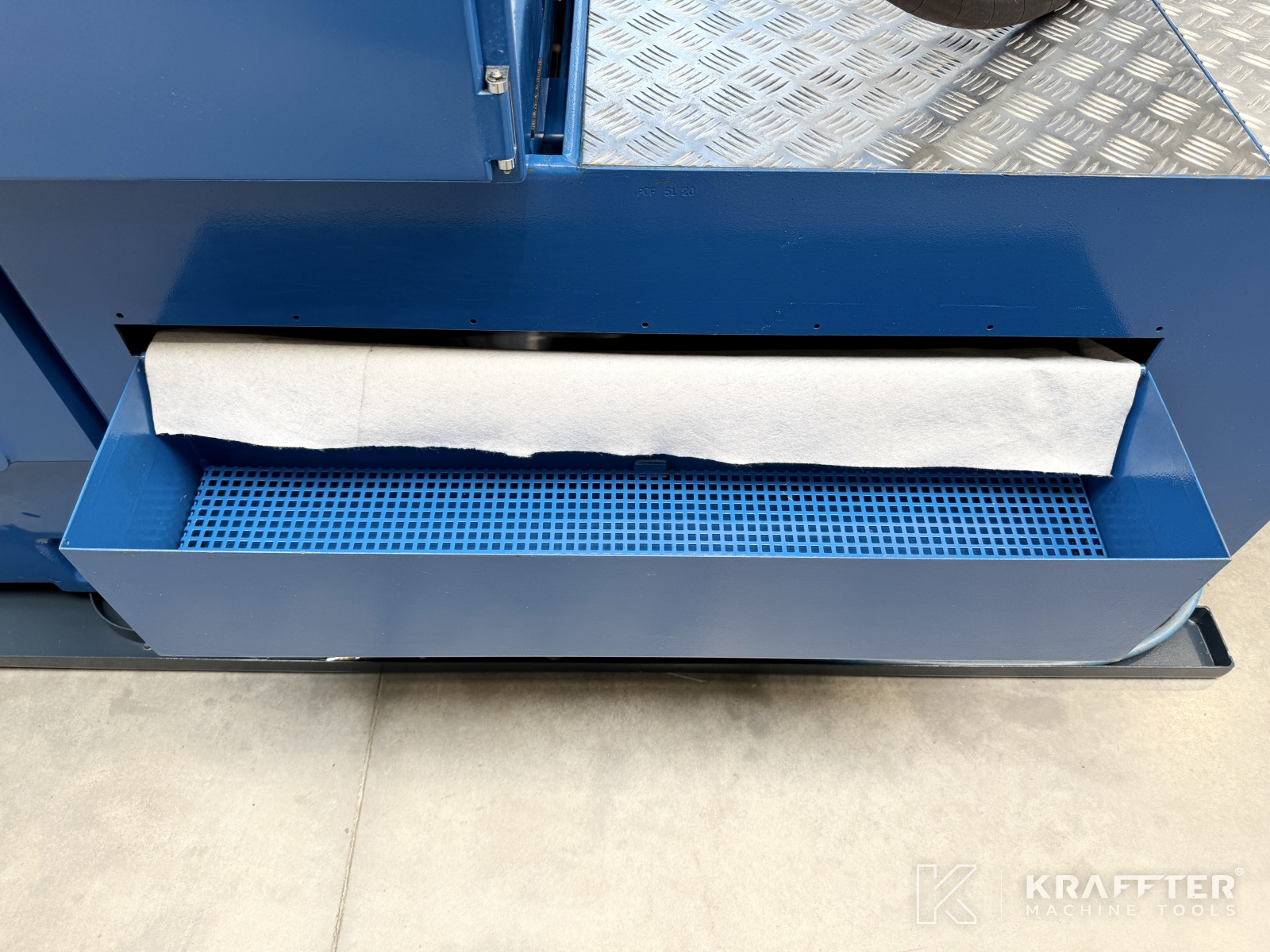

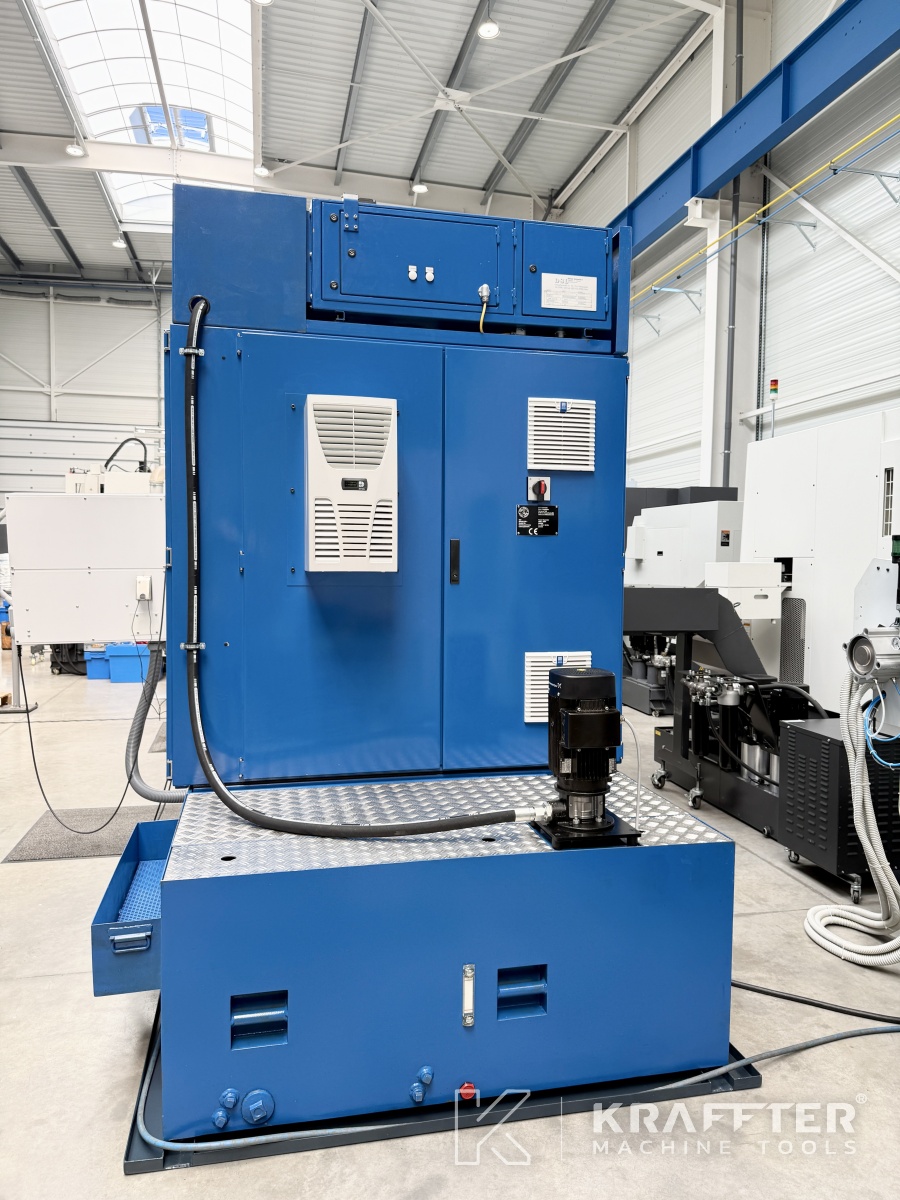

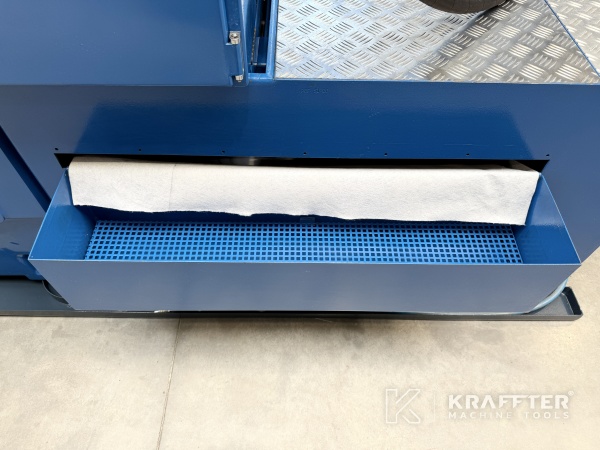

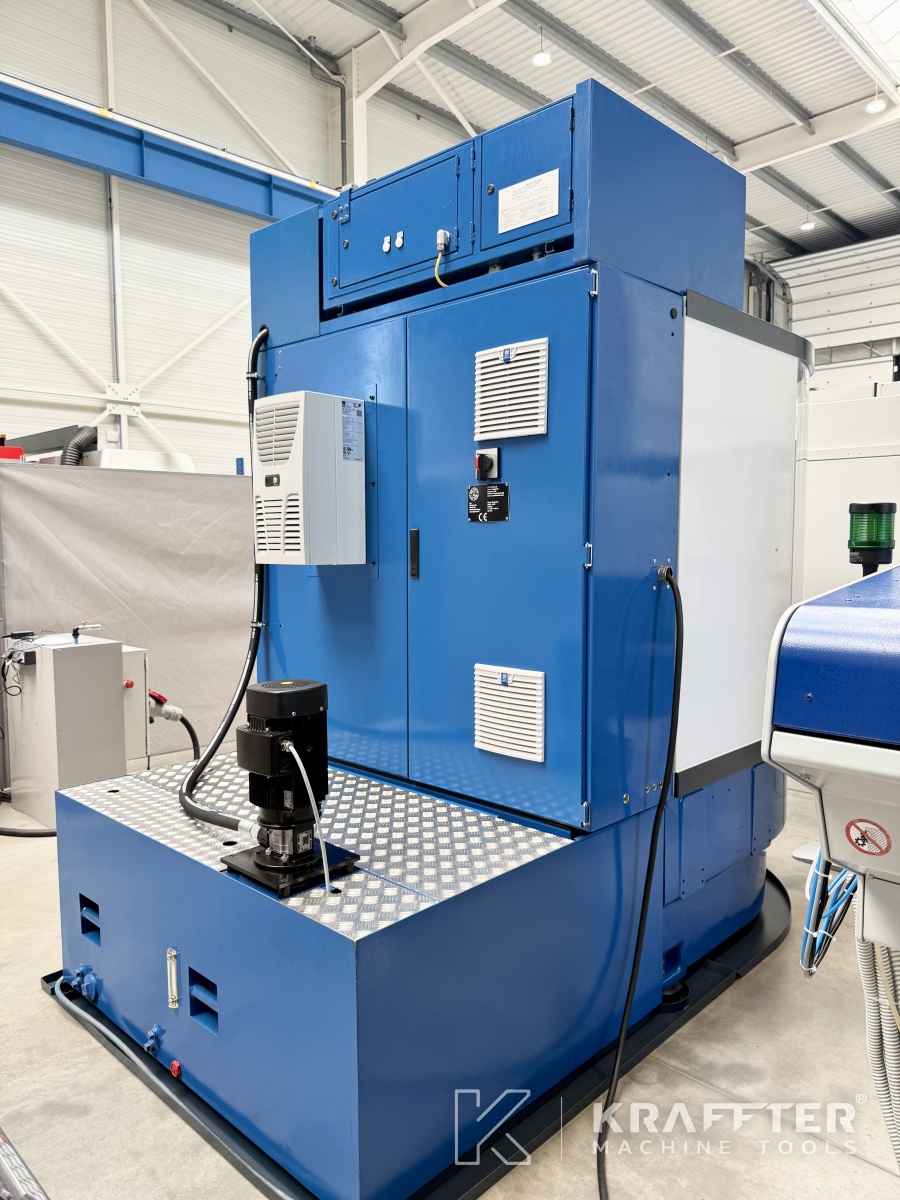

- x1 Coolant tank with paper filtration

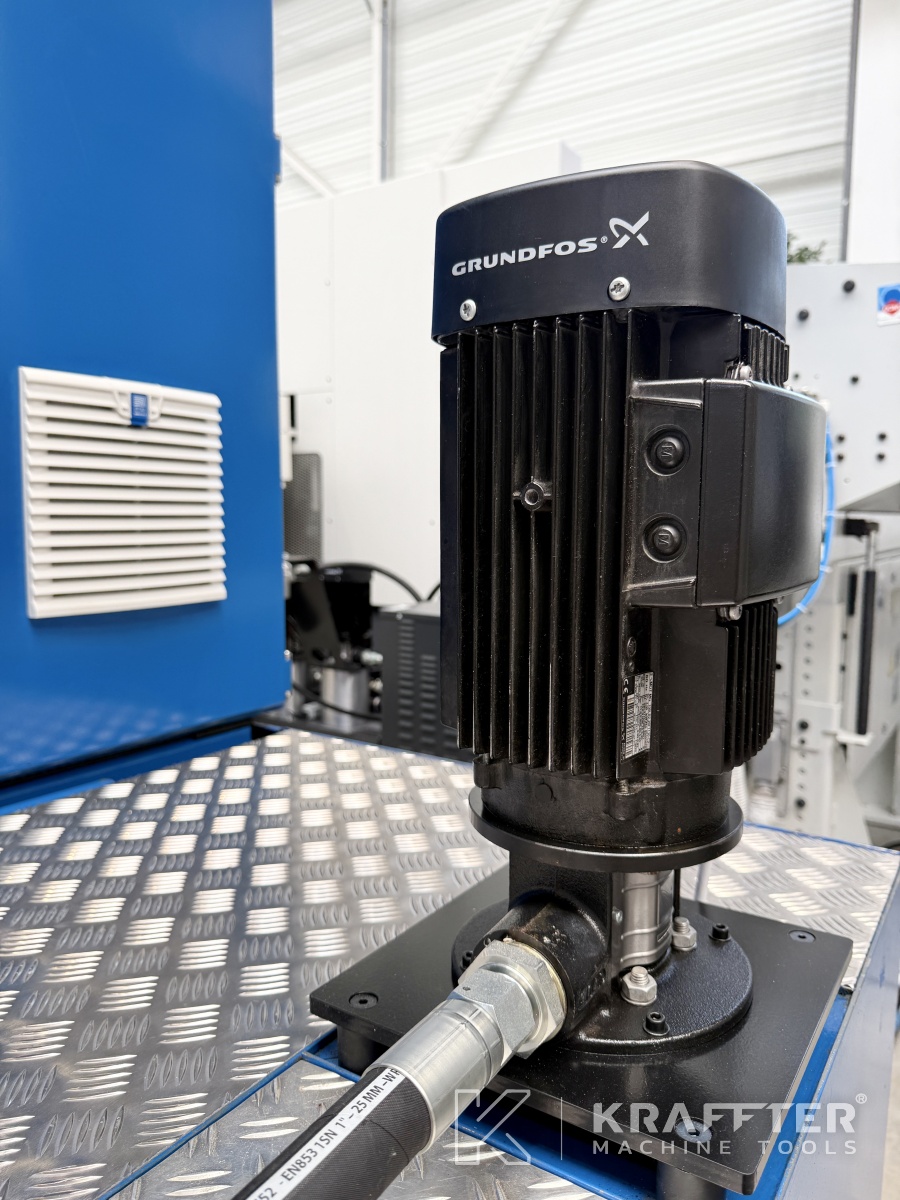

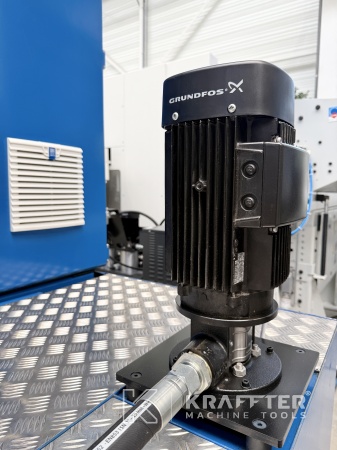

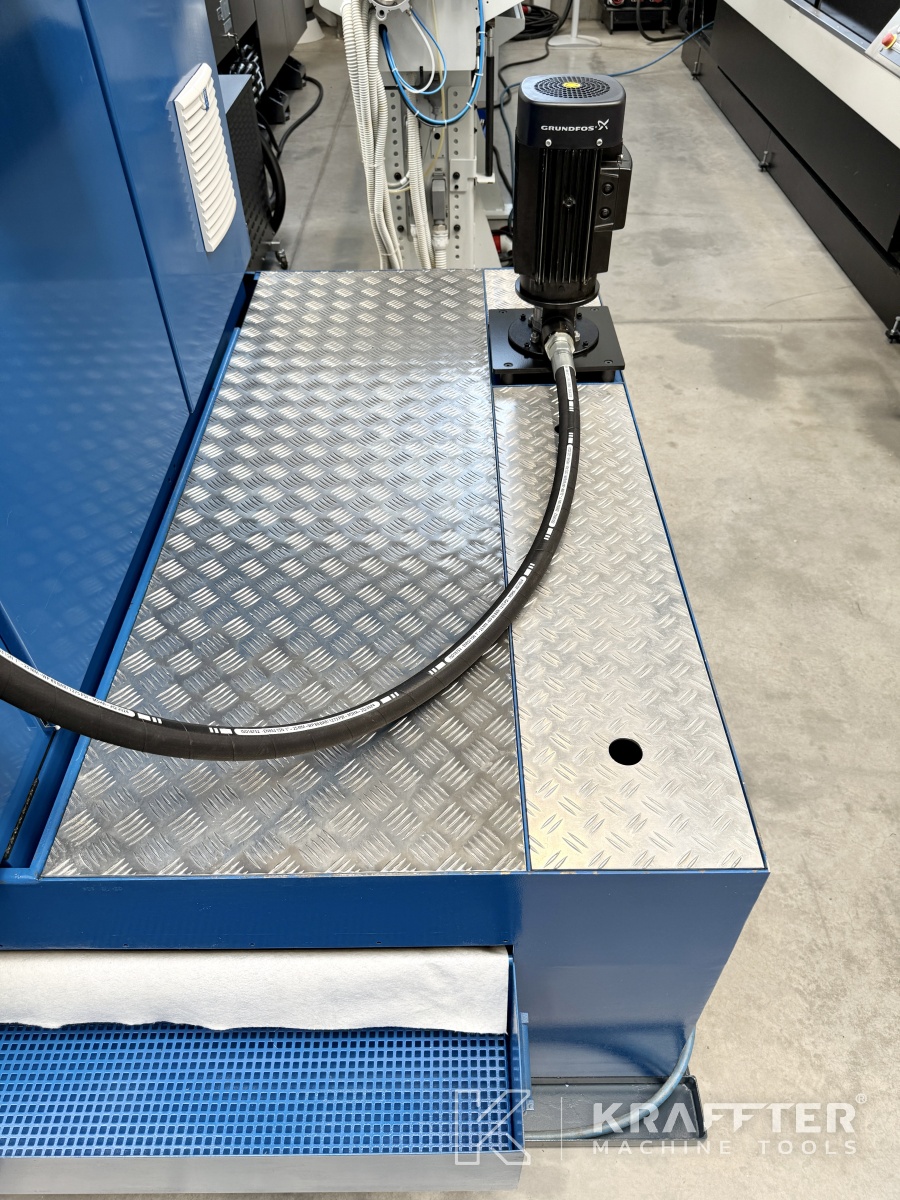

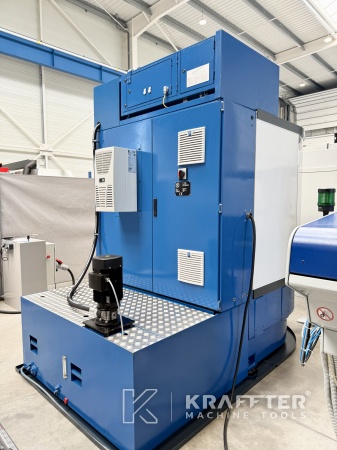

- x1 GRUNDFOS coolant pump (refurbished by GRUNDFOS in 2020 and unused since)

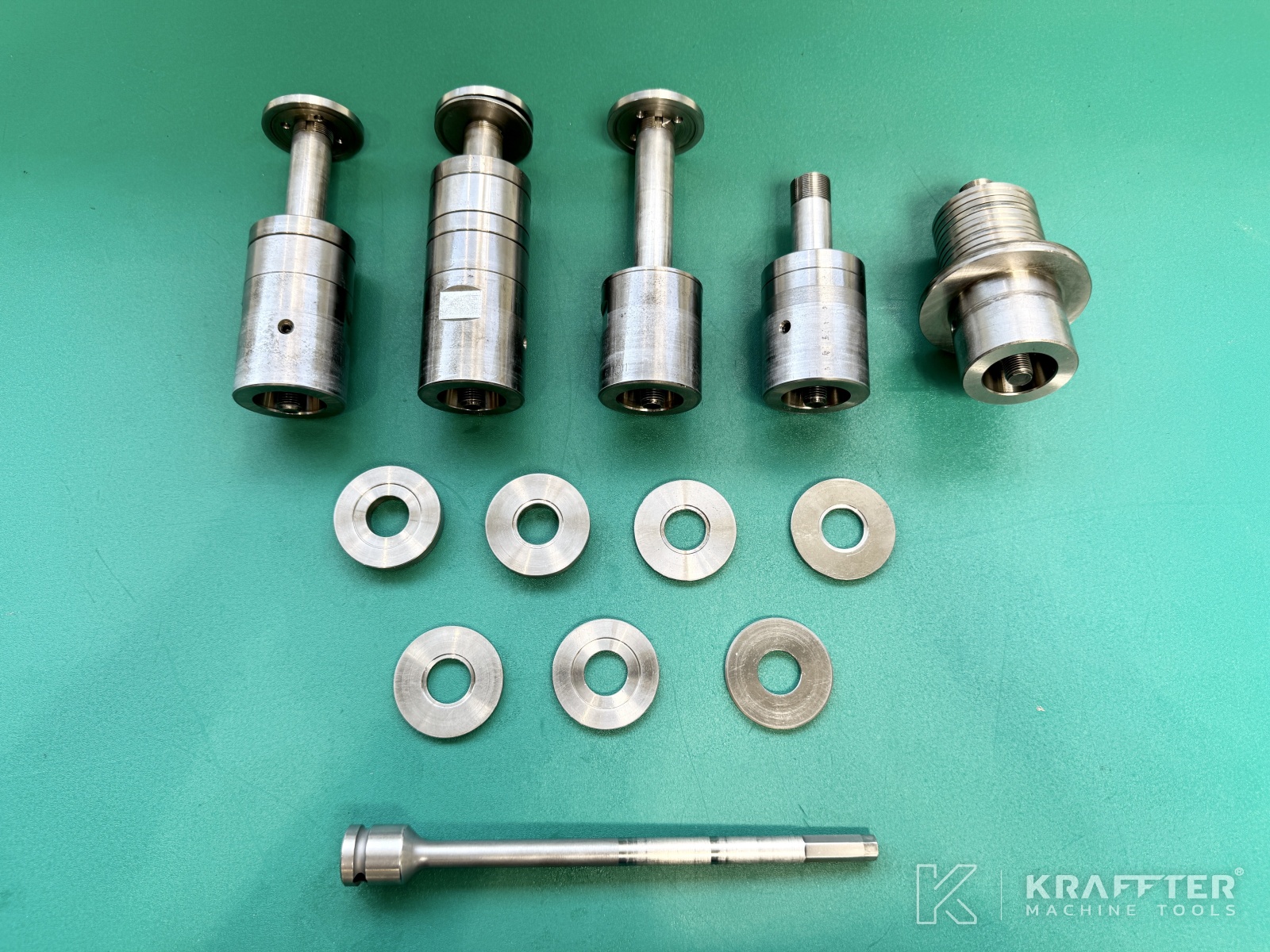

- x5 Wheel holders + spacers

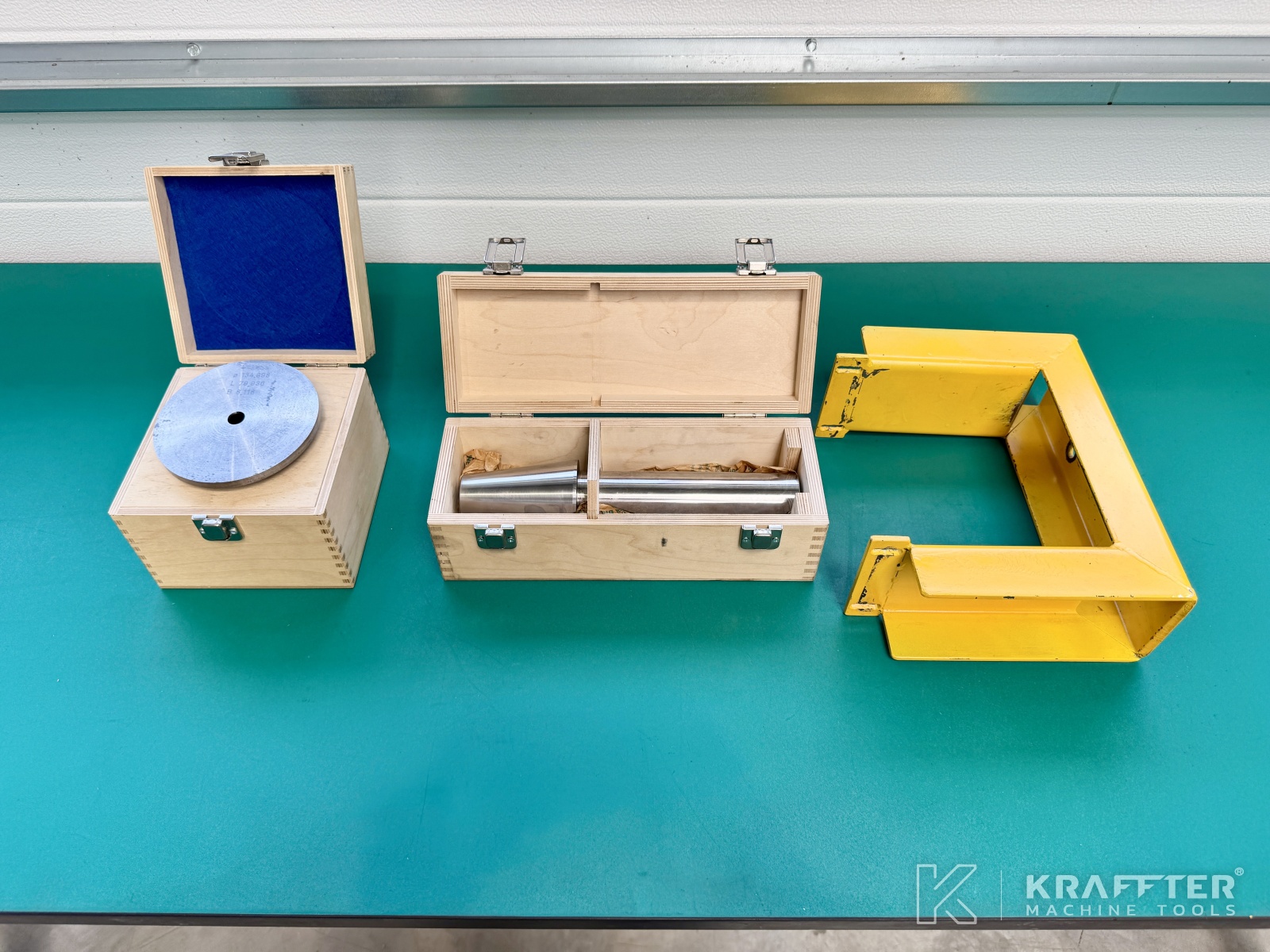

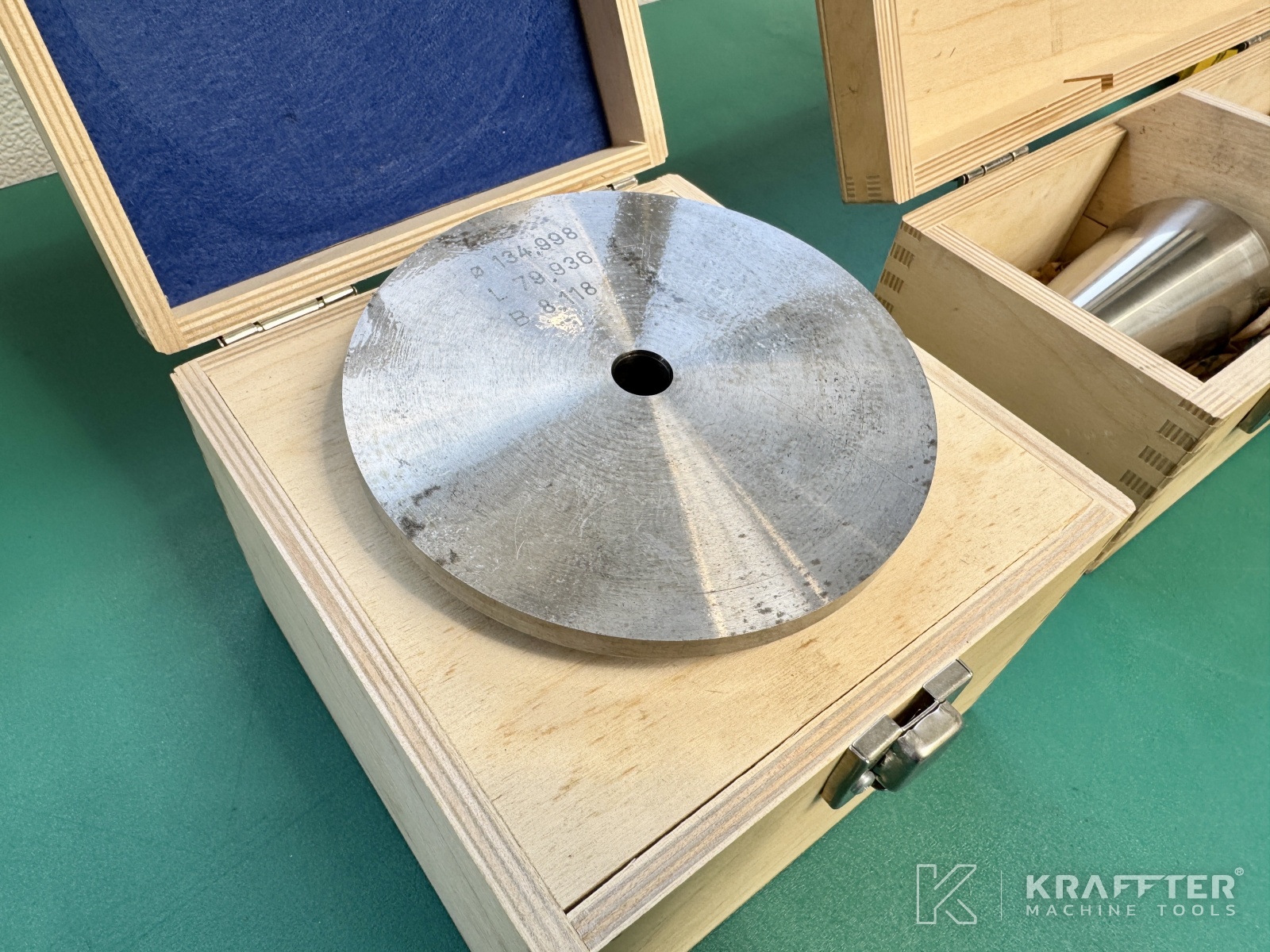

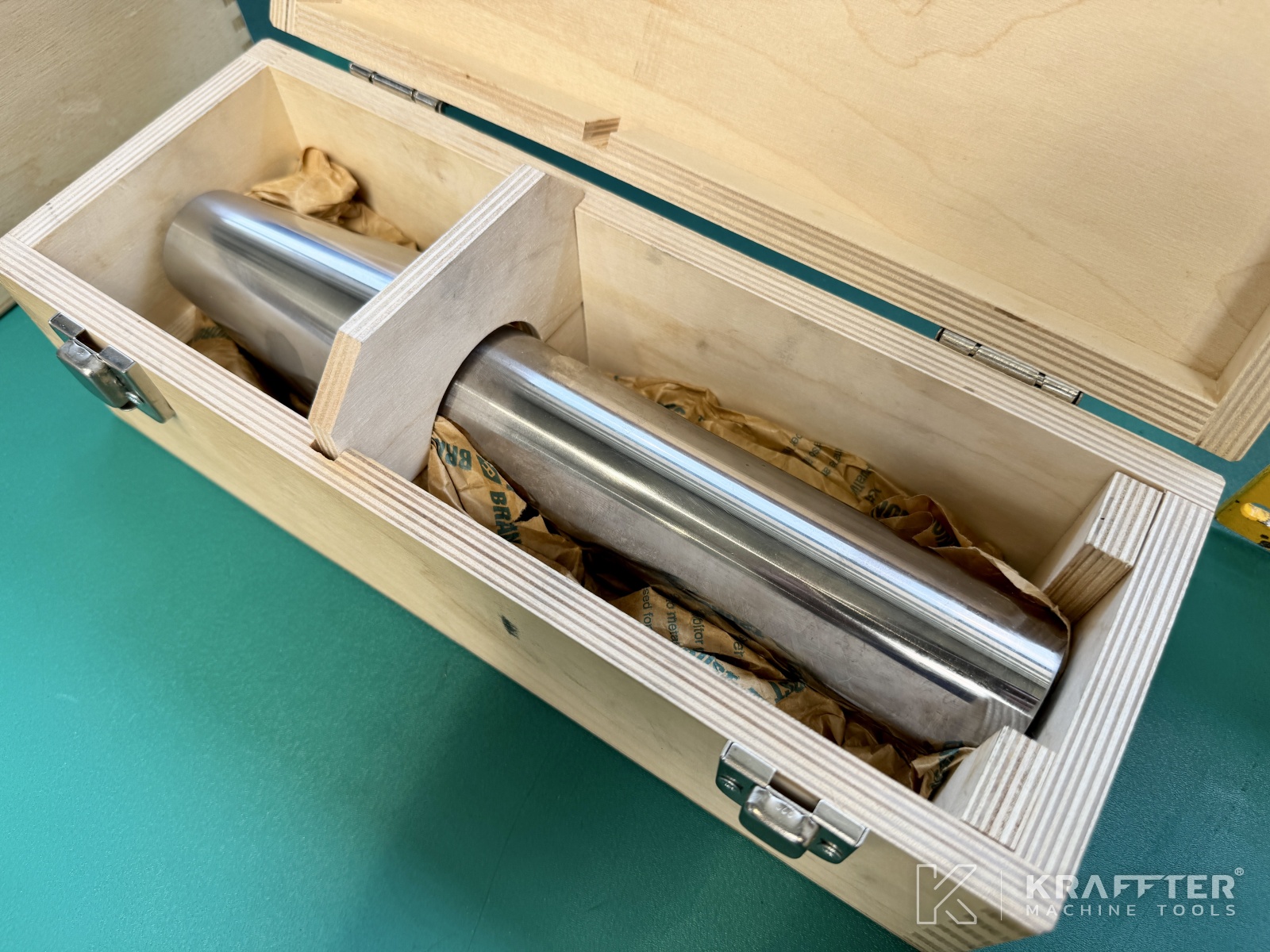

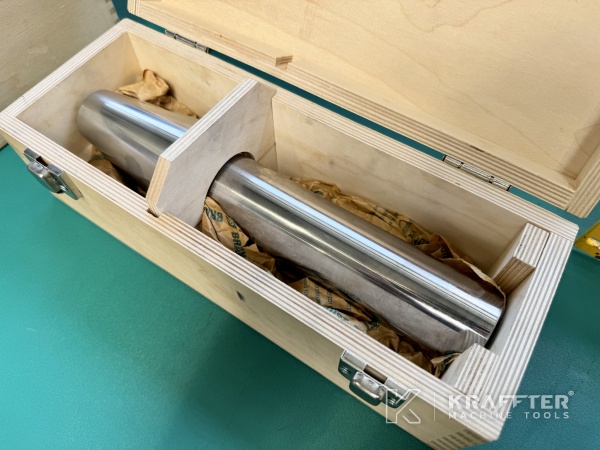

- x1 ISO 50 test mandrel
- x1 disk mandrel
- x1 transport bracket
Included NumRotoPlus software packages:
- CH-50052201 – Basic machine license with hard lock
- CH-50052350 – Standard mill bits
- CH-50052360 – Complex mill bits
- CH-50052145 – Extension rough profile / thread production
- CH-50052430 – Extension multi spirals
- CH-50052370 – Standard drill bits
- CH-50052380 – Complex drill bits and step drills
- CH-50052080 – Extension for form steps defined in DXF files
- CH-50052150 – Form cutters
- CH-50052480 – Special grinding functions
- CH-50052110 – Automated tool probing
- CH-50052190 – Automated wheel probing
- CH-50052870 – Automated wheel sticking
- CH-50052120 – NCI Windows operator screen
- CH-50052230 – NumRoto control
- CH-50052660 – 3D collision protection
- CH-50052670 – 3D tool simulation
- CH-50052720 – 3D special functions
MECHANICAL RETROFIT CARRIED OUT IN 2020:
-
Ball screws on X, Y, and Z axes
-
Linear guides on X, Y, and Z axes
-

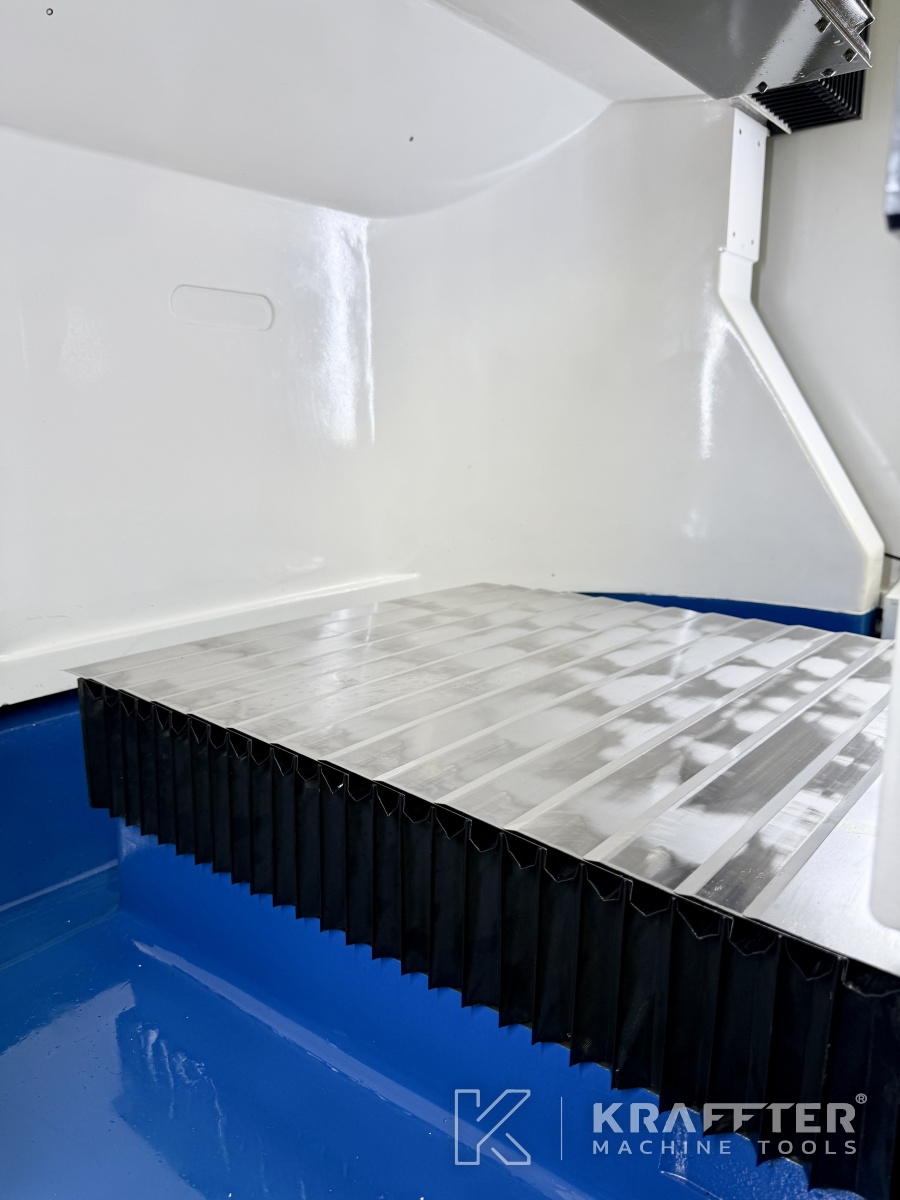

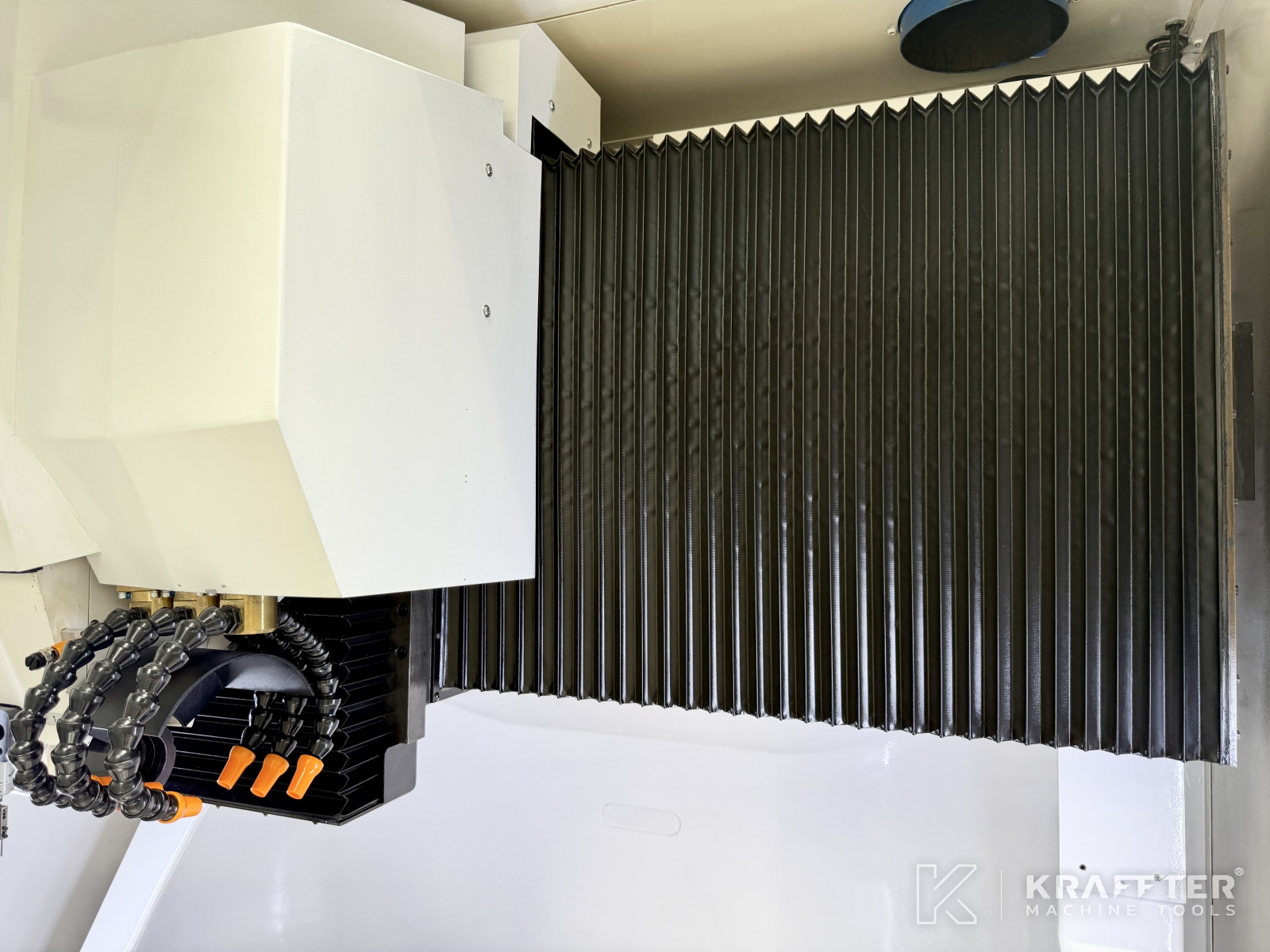

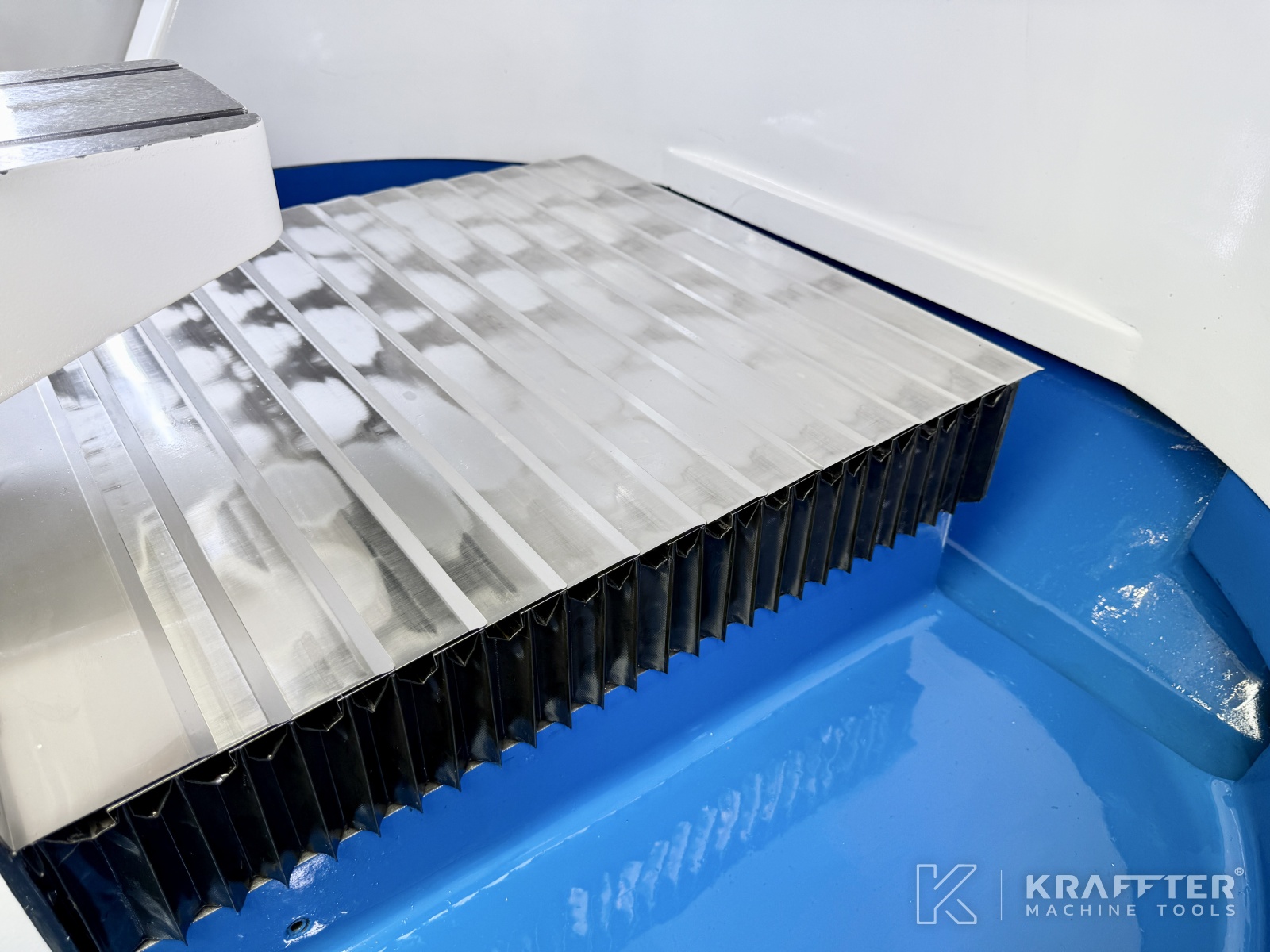

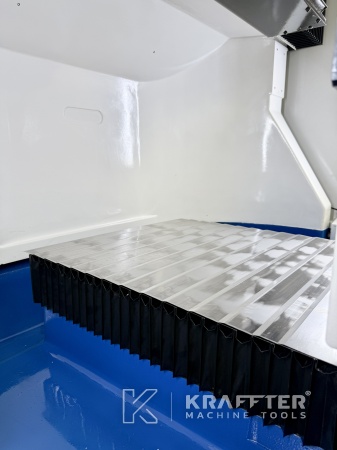

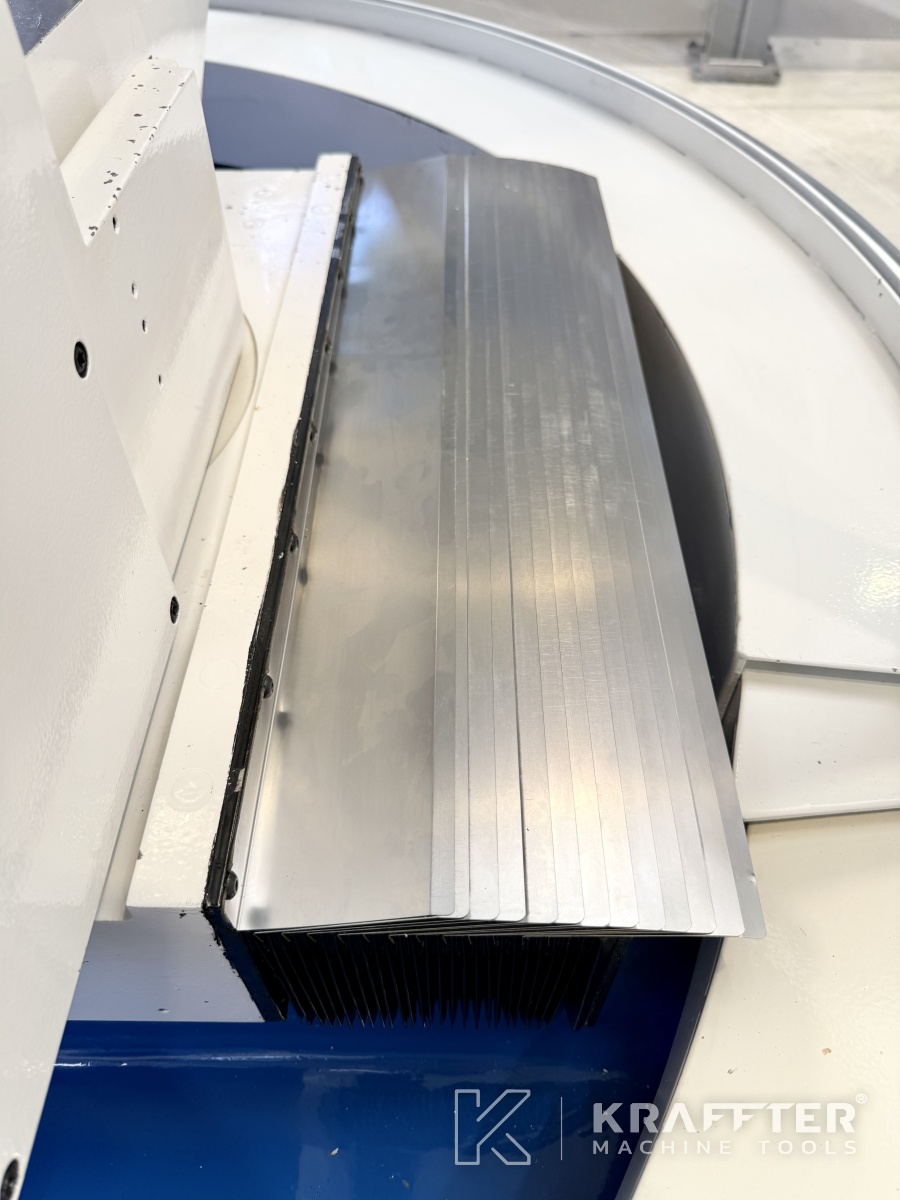

Protective bellows on X, Y, and Z axes
-
Worm gear and wheel assemblies on A and C axes
-
Belts on A and C axes
-

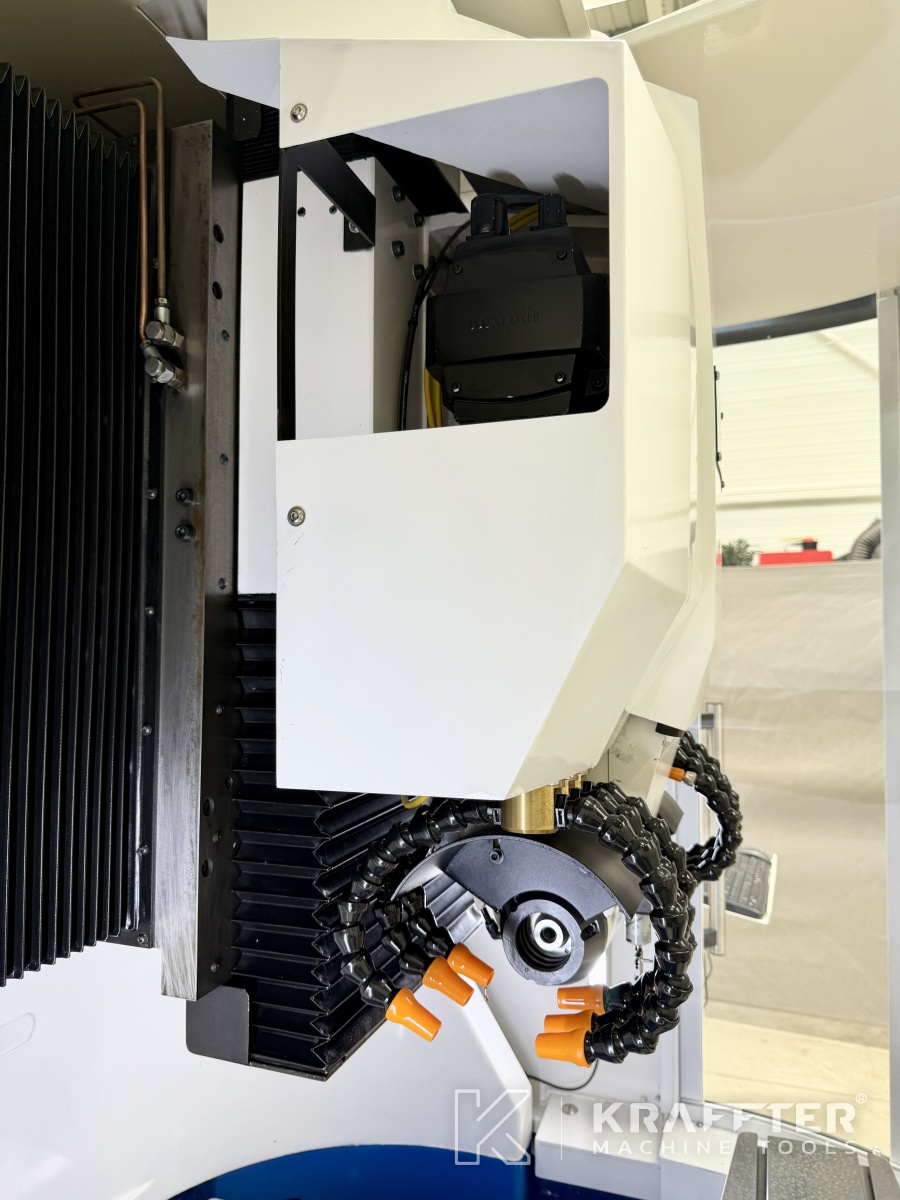

Grinding spindle
-
Grinding spindle belt
-

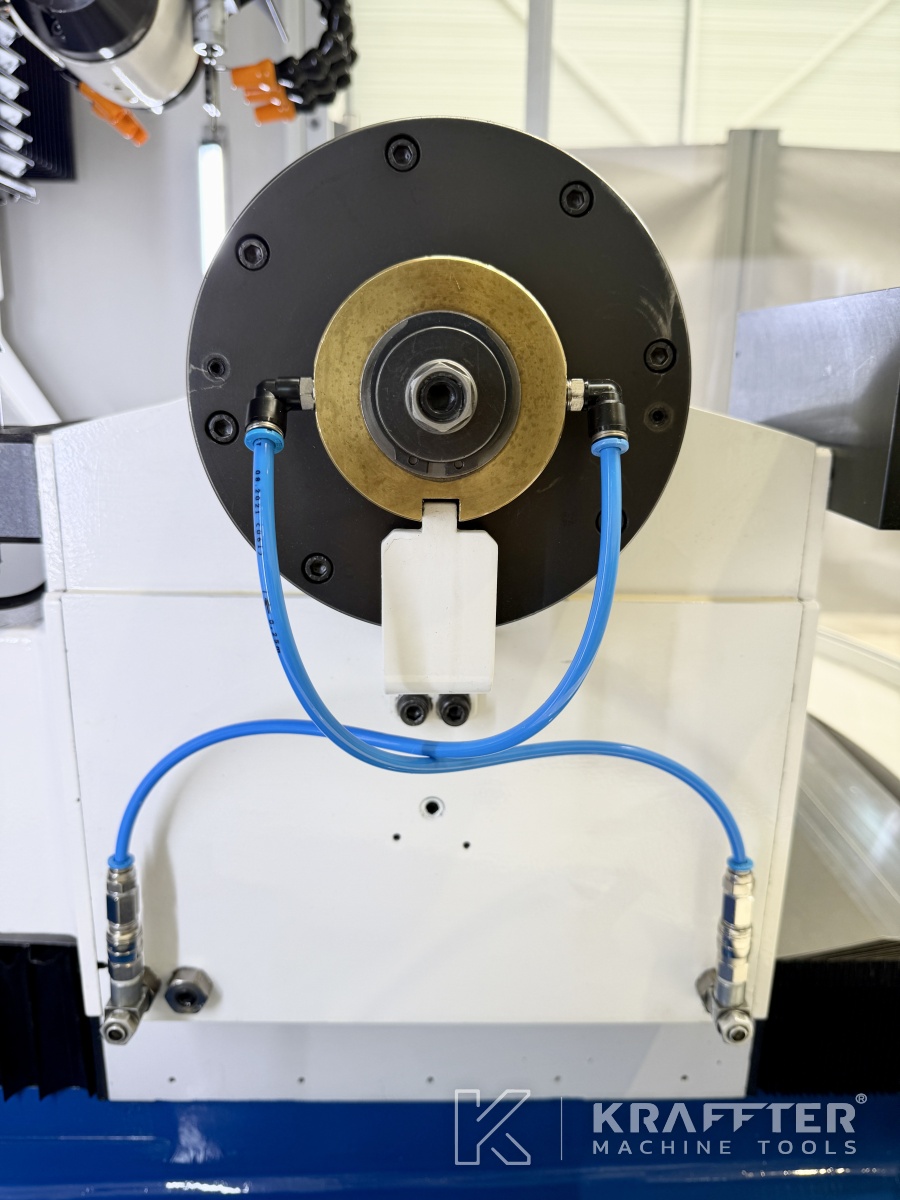

Workpiece spindle bearings

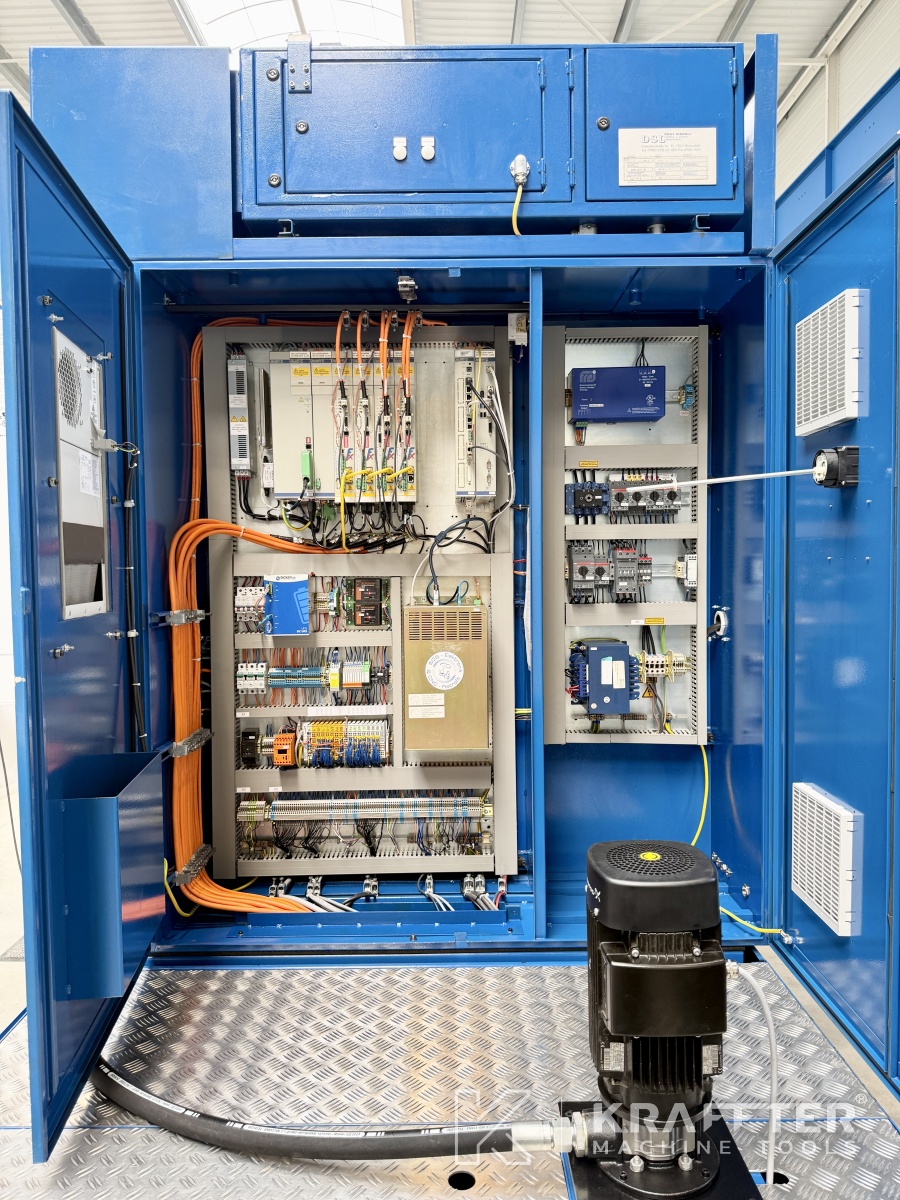

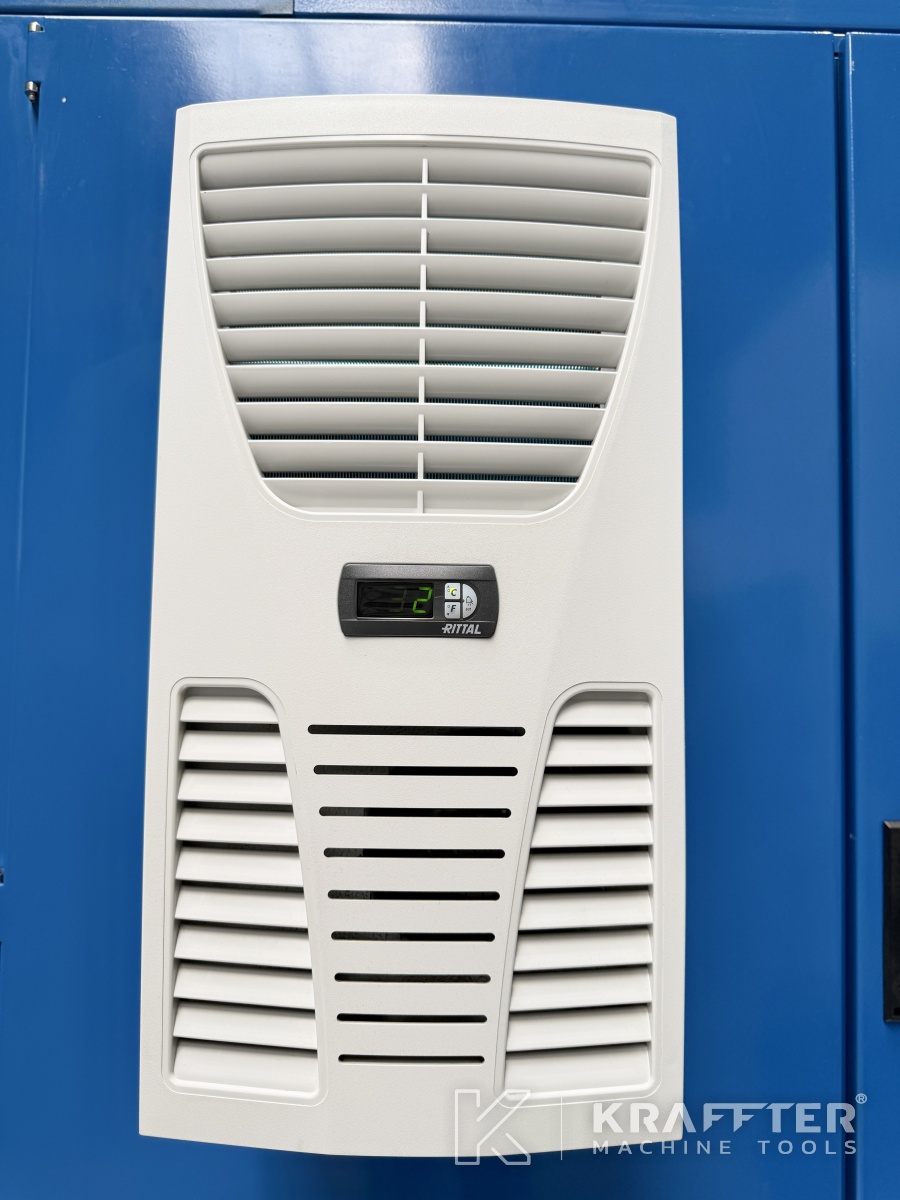

CNC RETROFIT CARRIED OUT IN 2020:
-

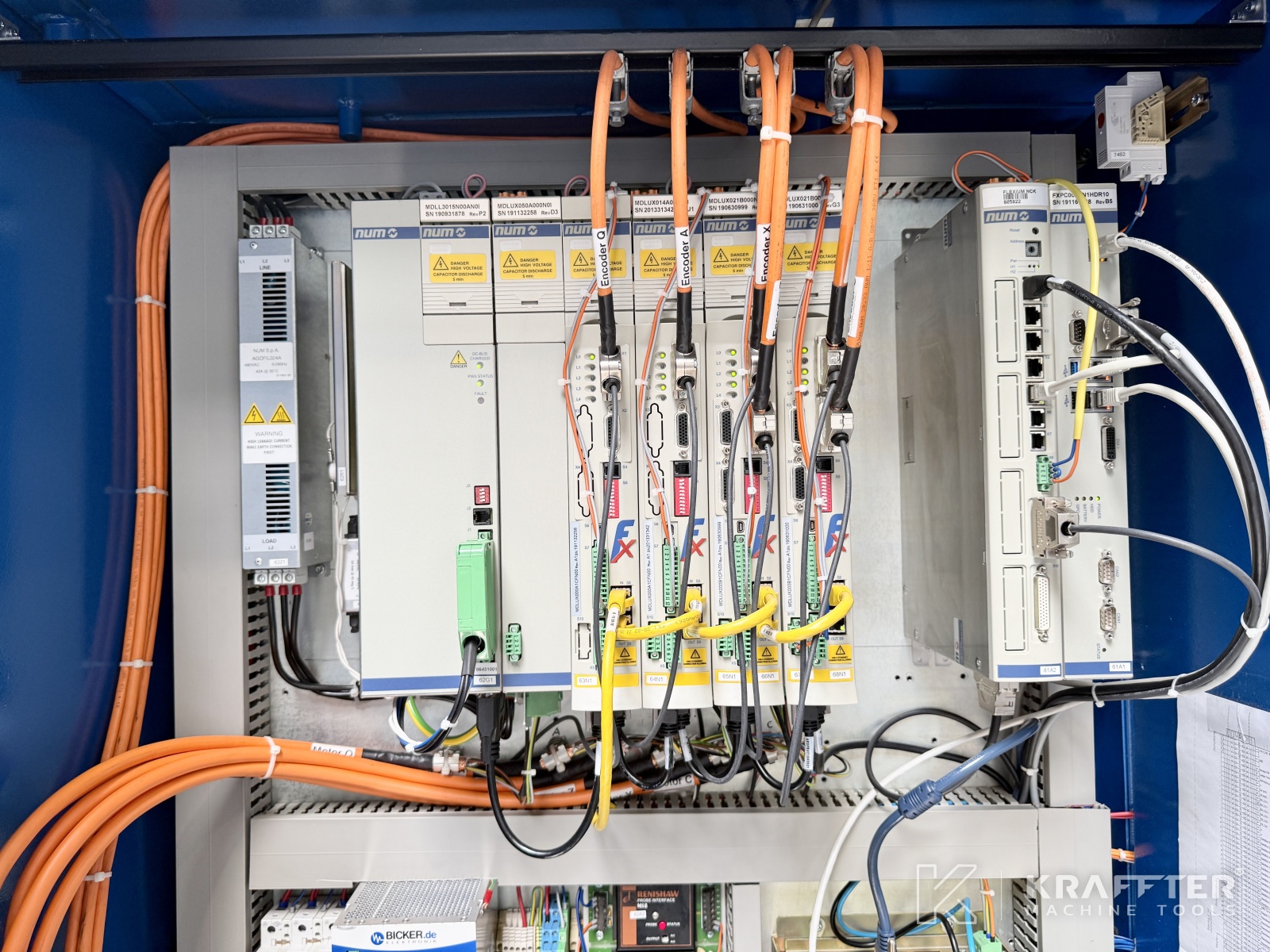

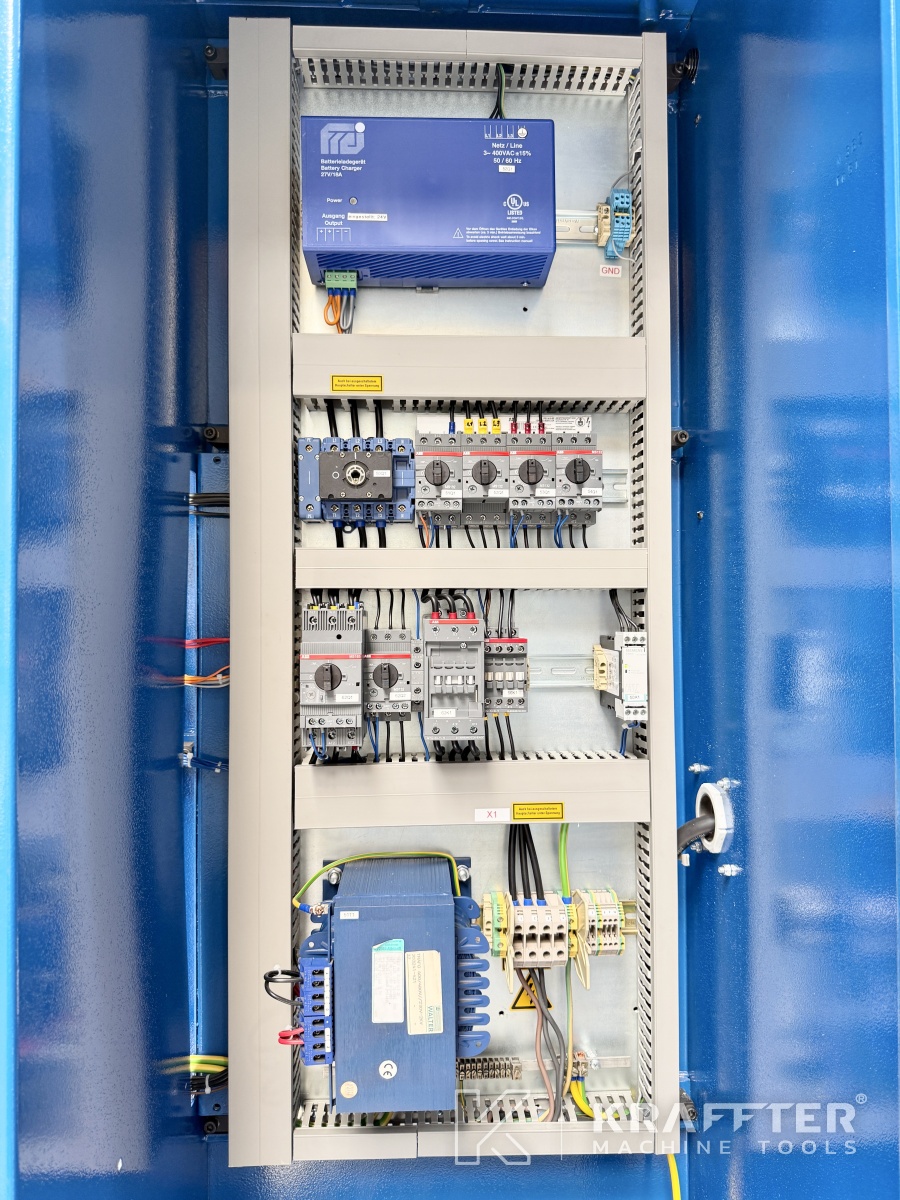

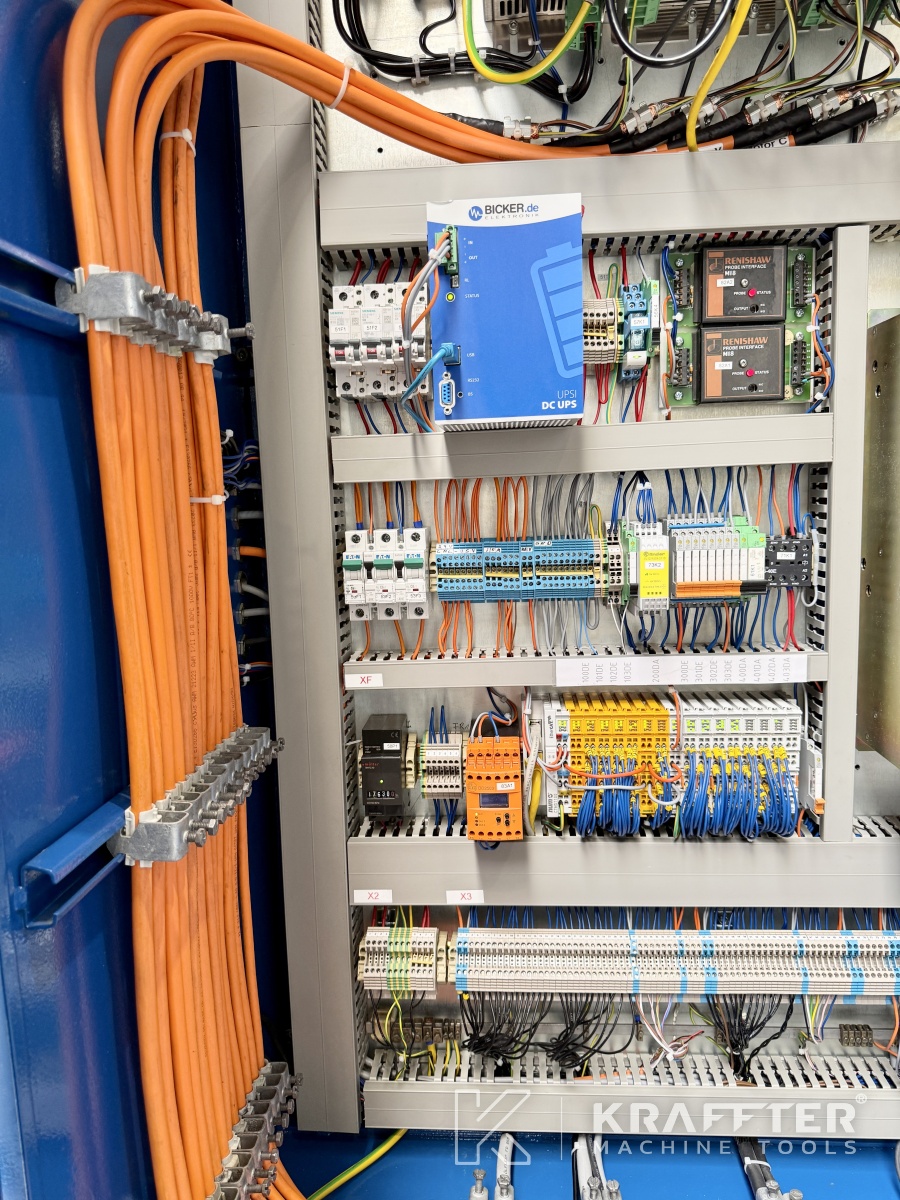

CNC system - control, drives, PLC : NUM Flexium
-
HMI computer: Intel Core i5 – Windows 10
-
Software: Numroto Plus
-

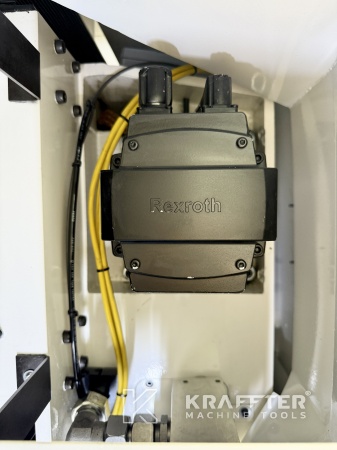

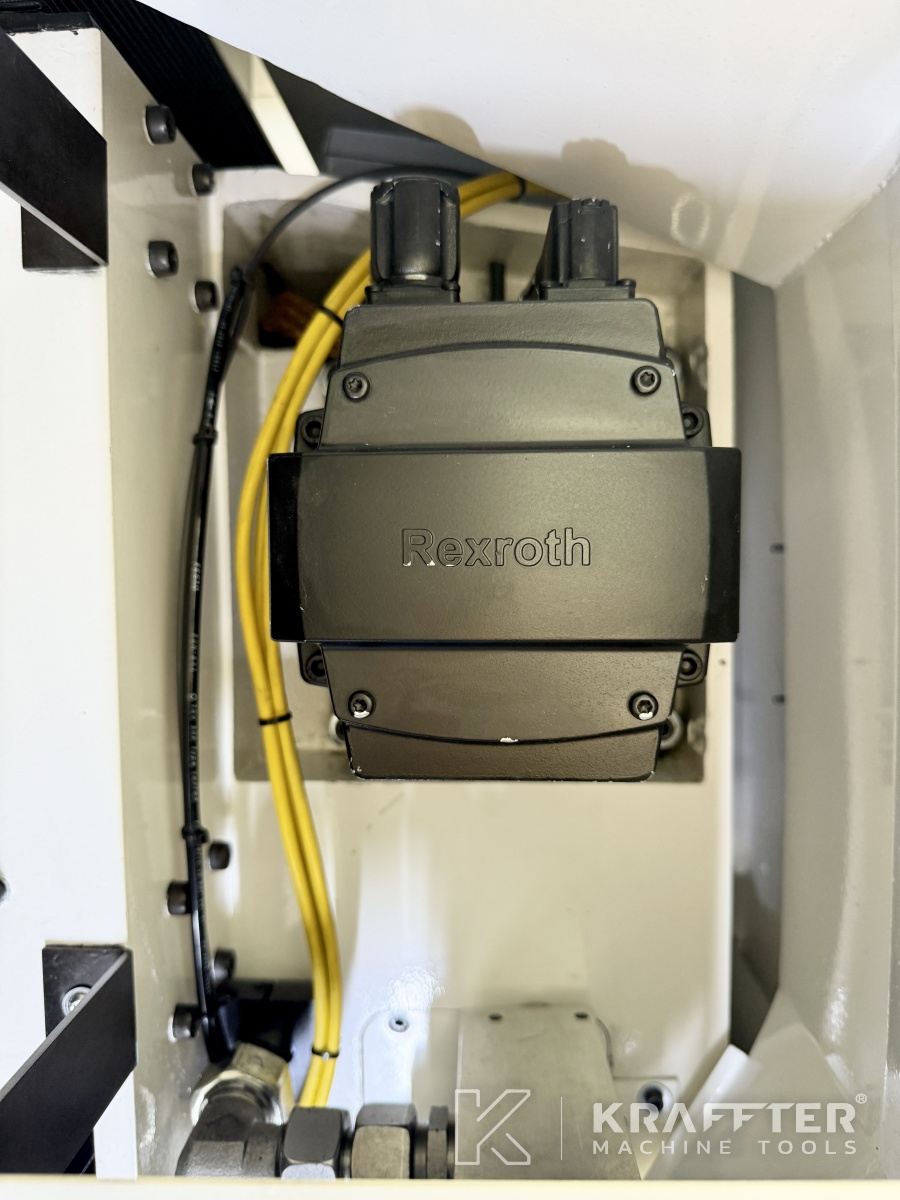

Servo motors: BOSCH
-
24" TFT touchscreen
-
Remote electronic handwheel: NUM Flexium
-
Tool probe: RENISHAW type LP2DD
-
Wheel probe: RENISHAW type LP2DD
