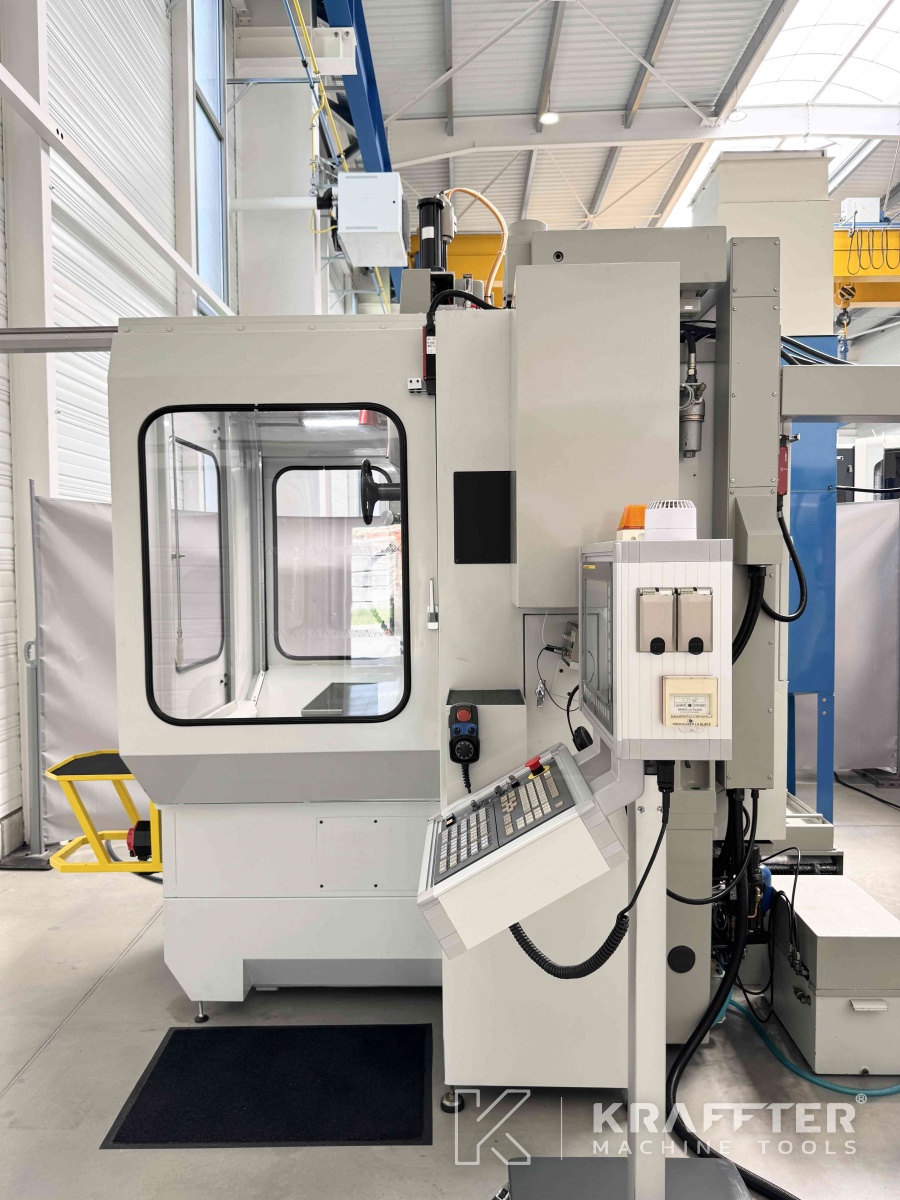

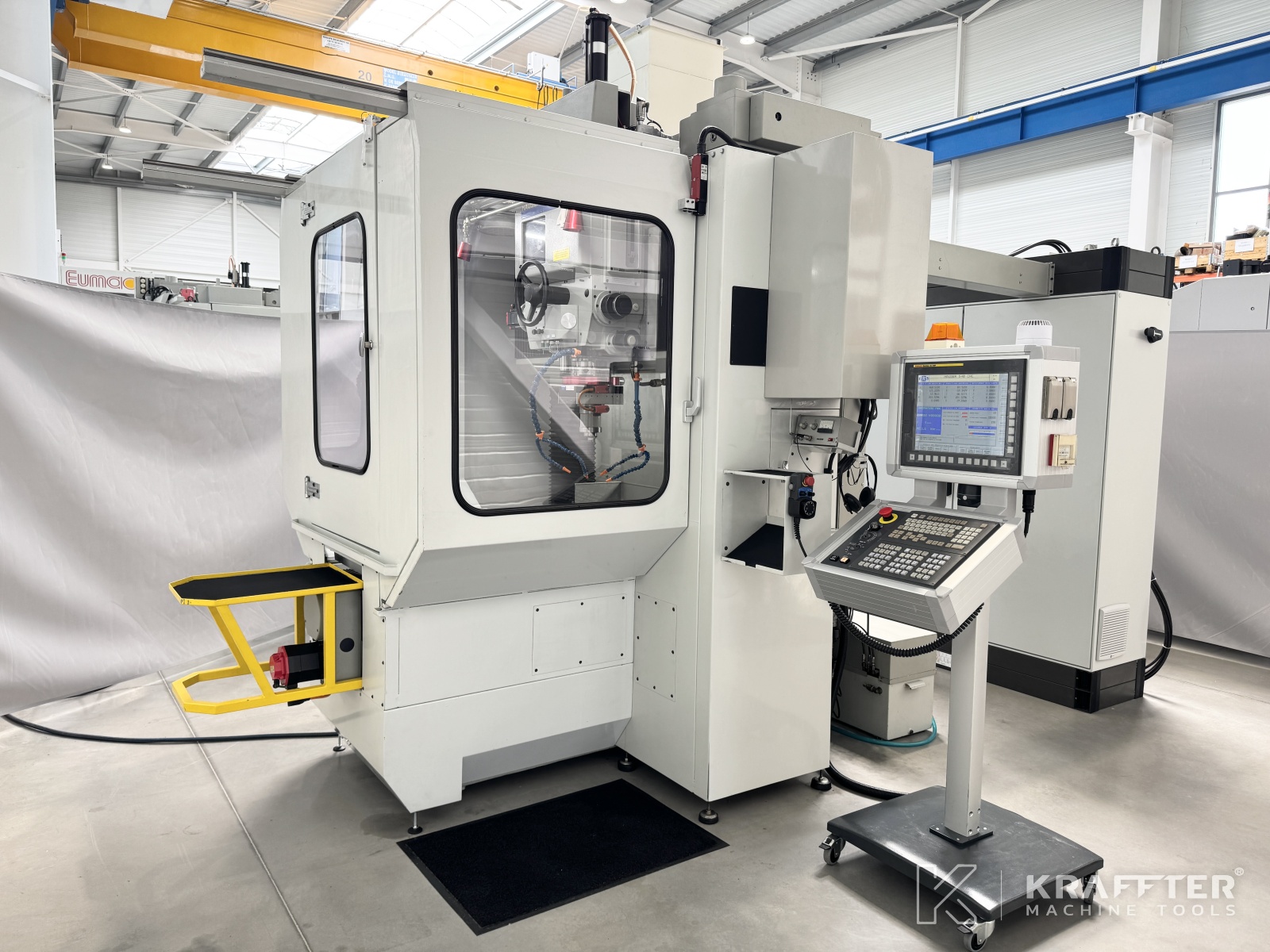

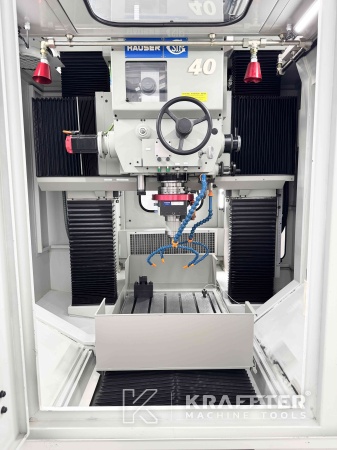

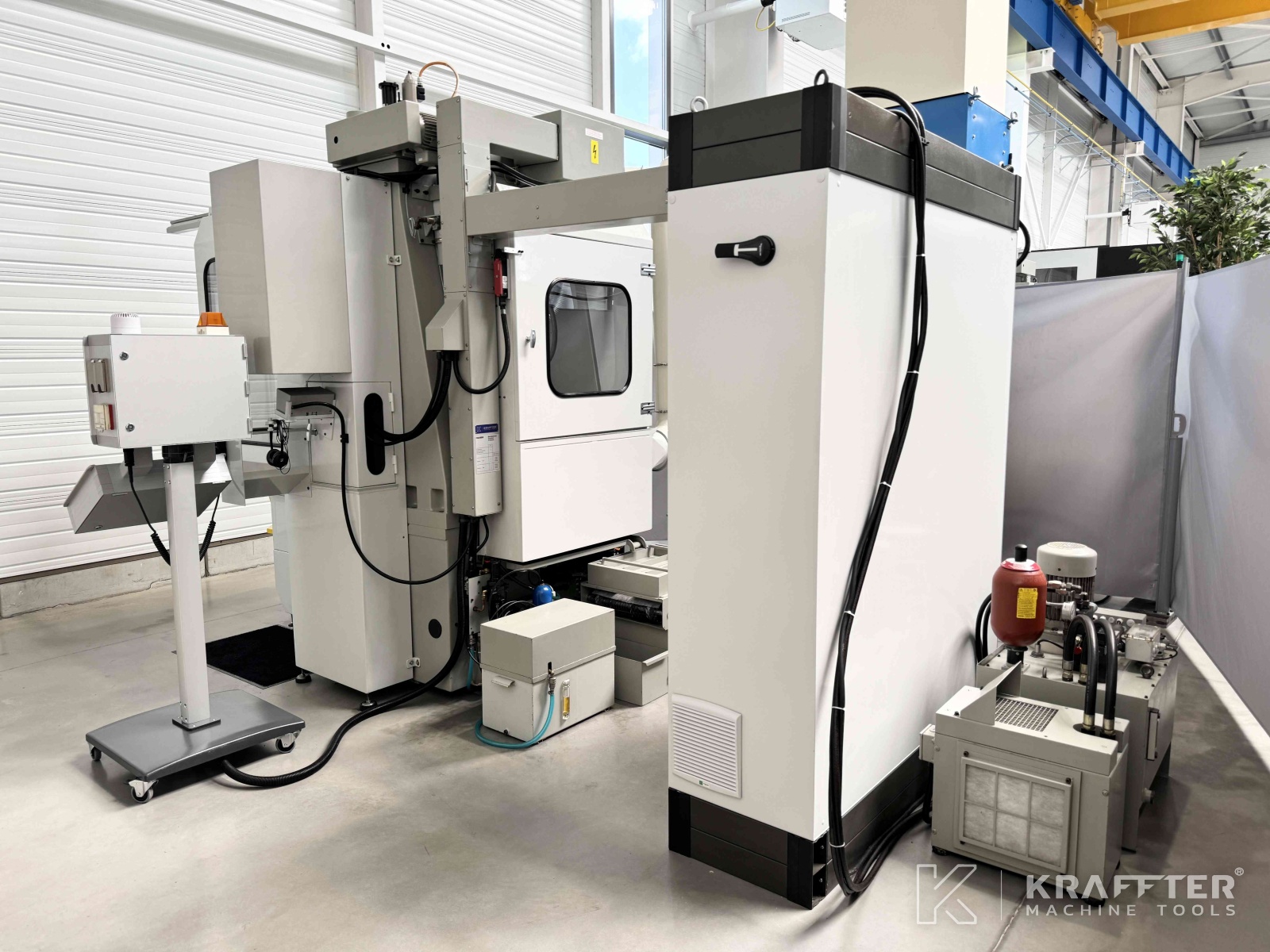

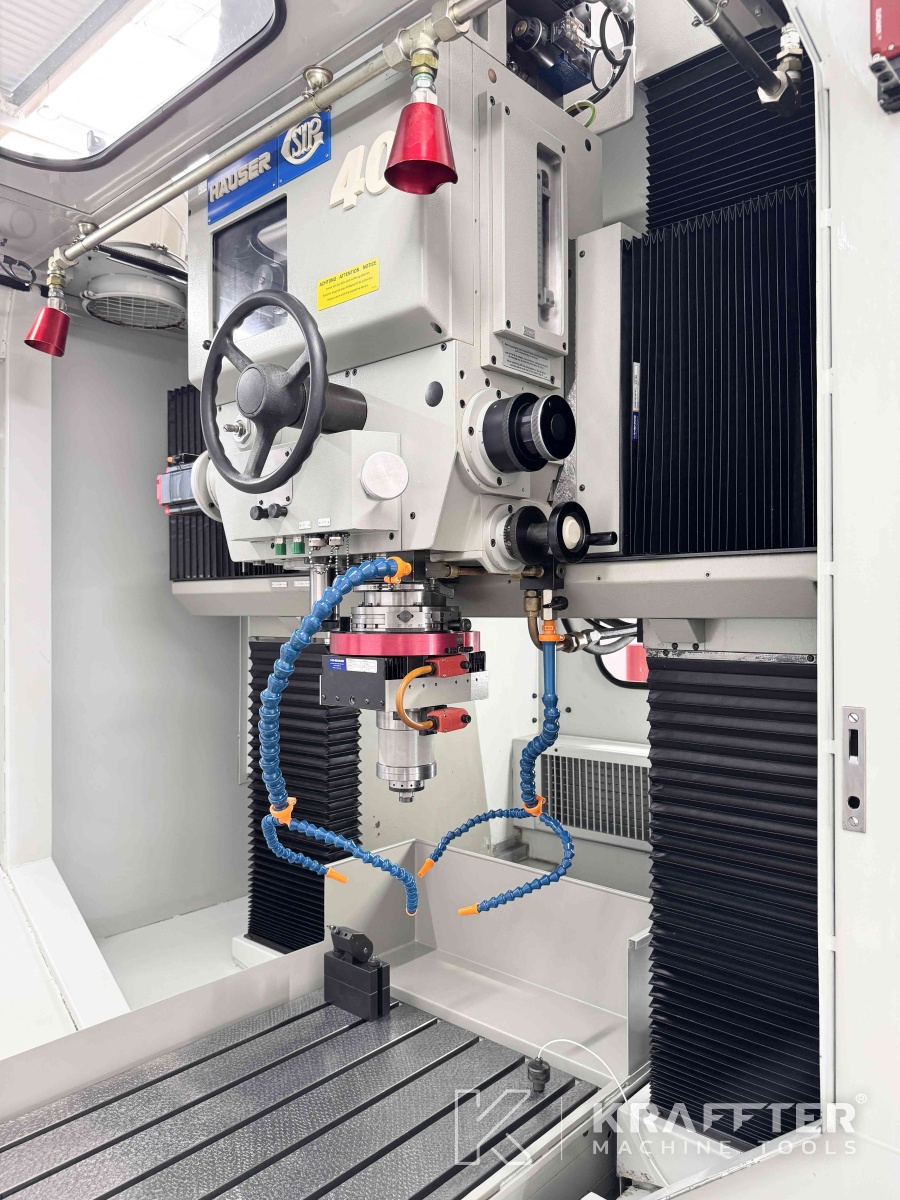

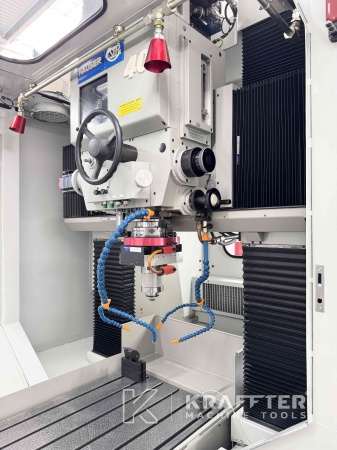

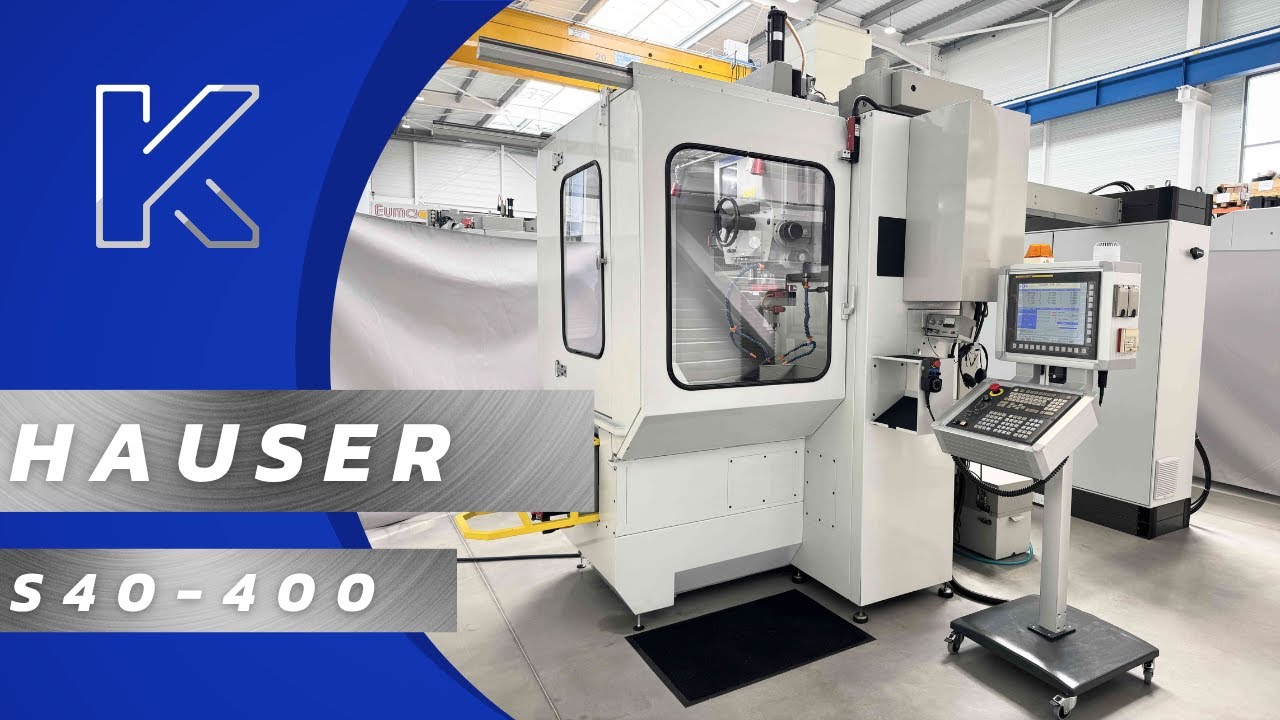

Unsere Maschinen : HAUSER S40-400

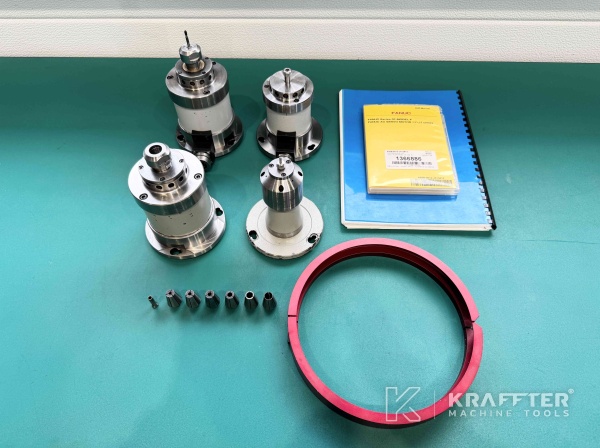

INCLUDED EQUIPMENT:

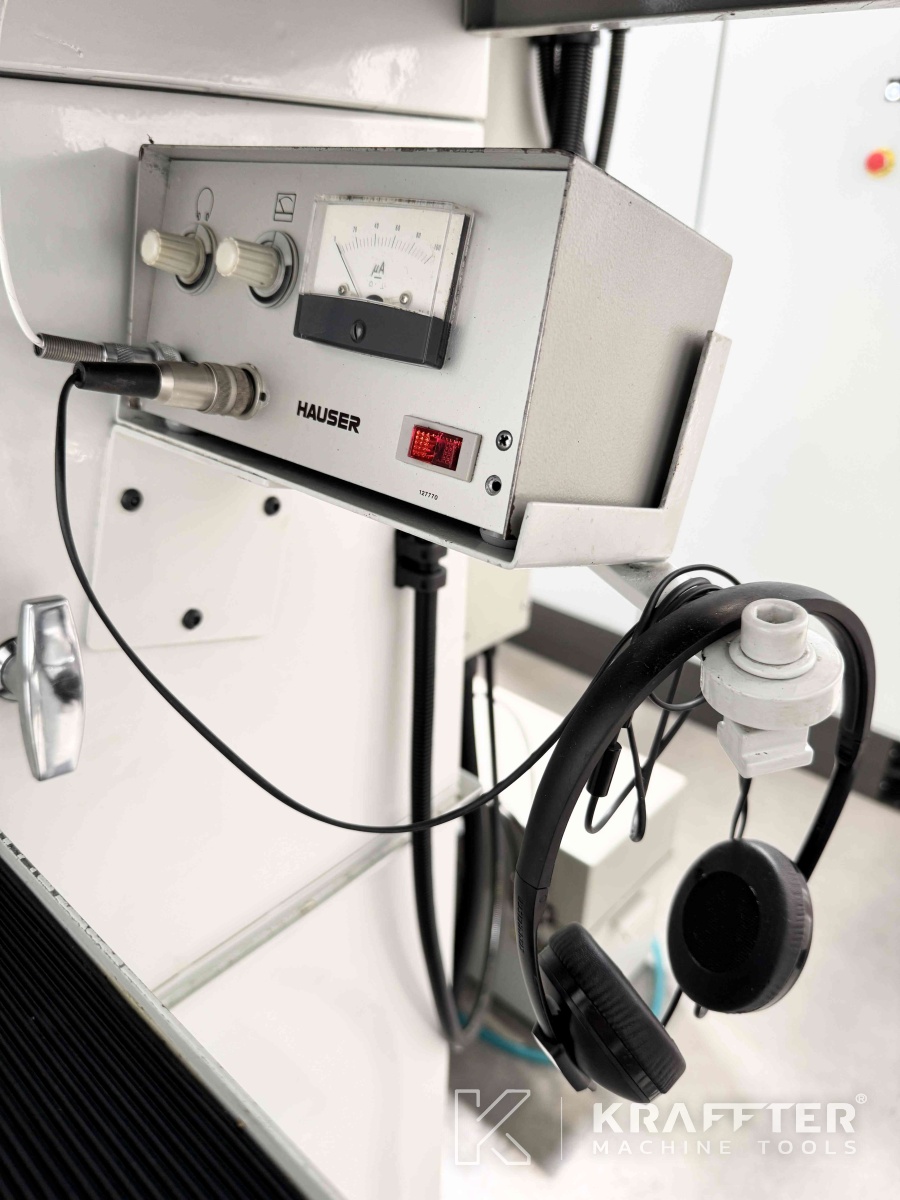

• 1 tool detection device

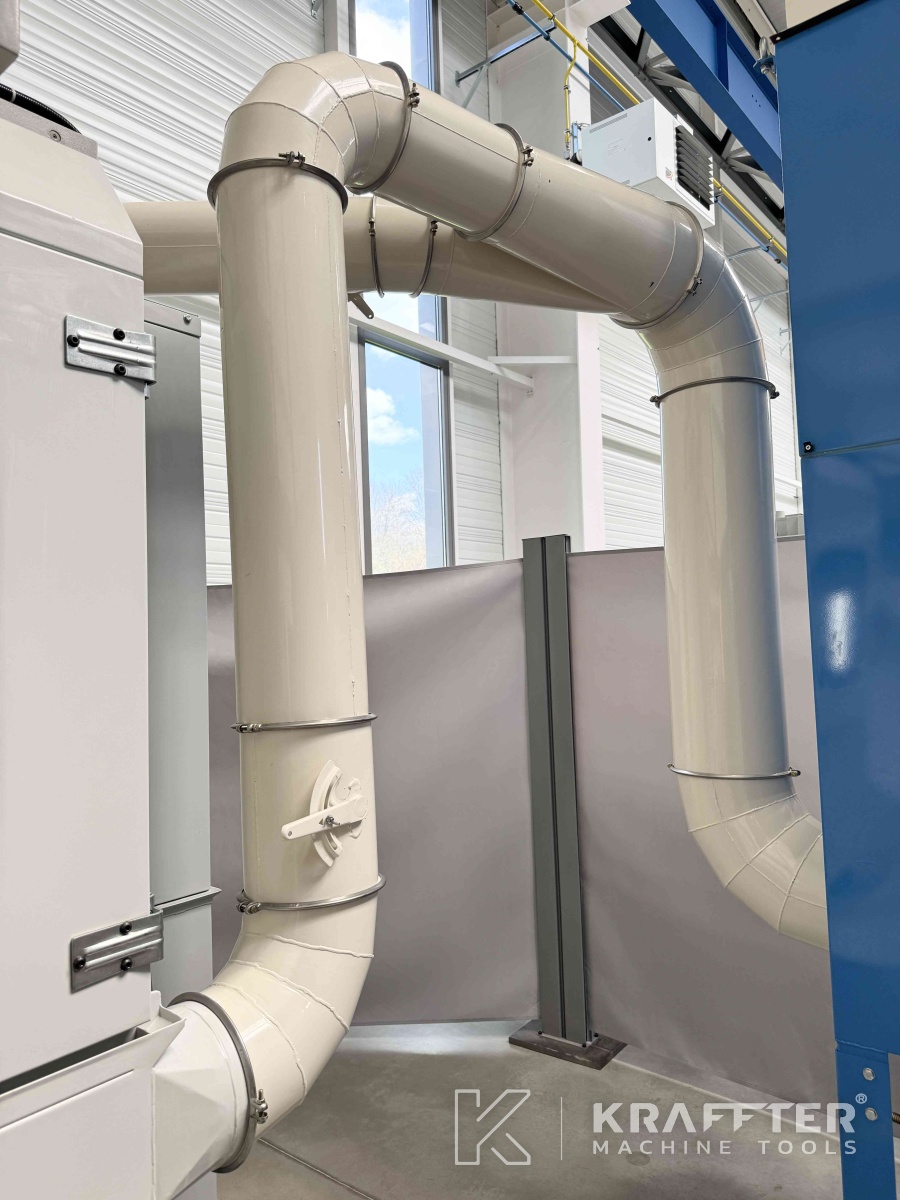

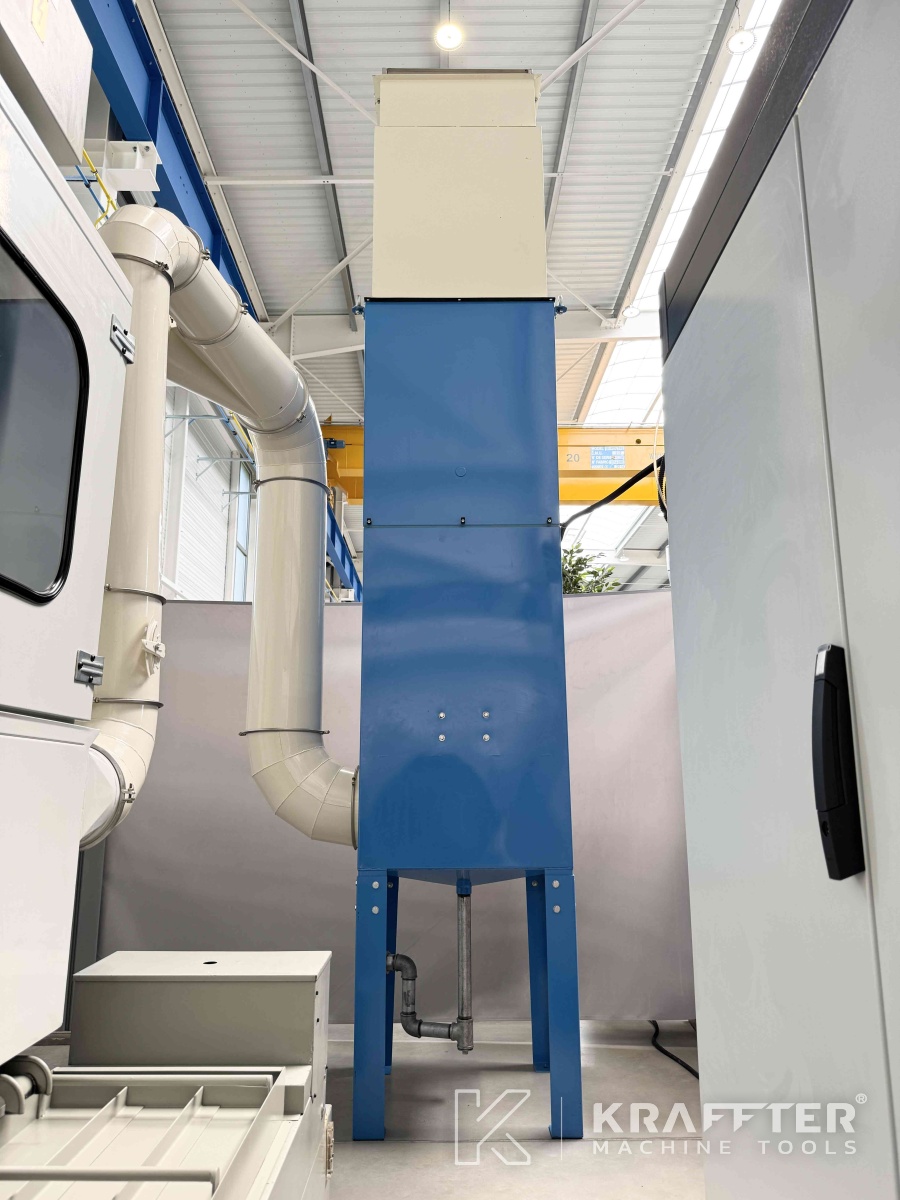

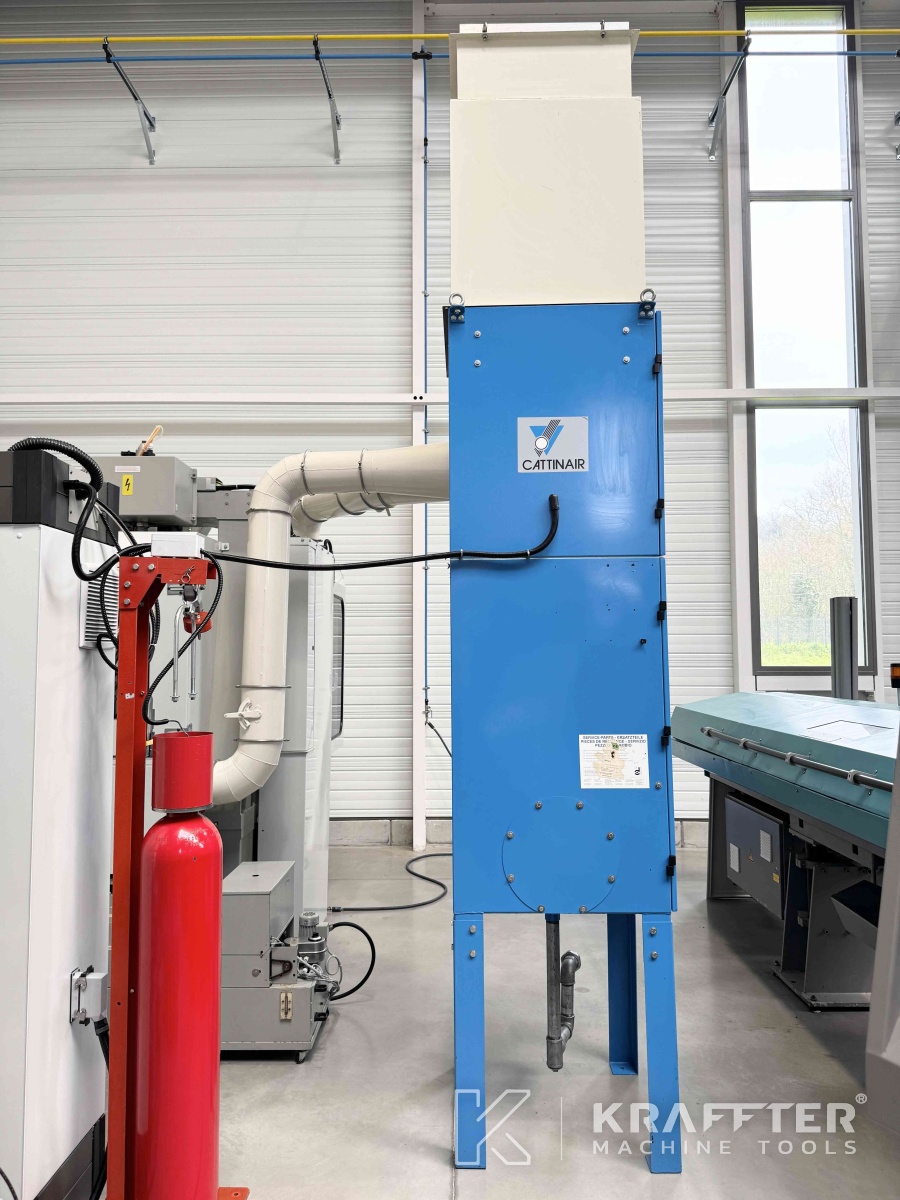

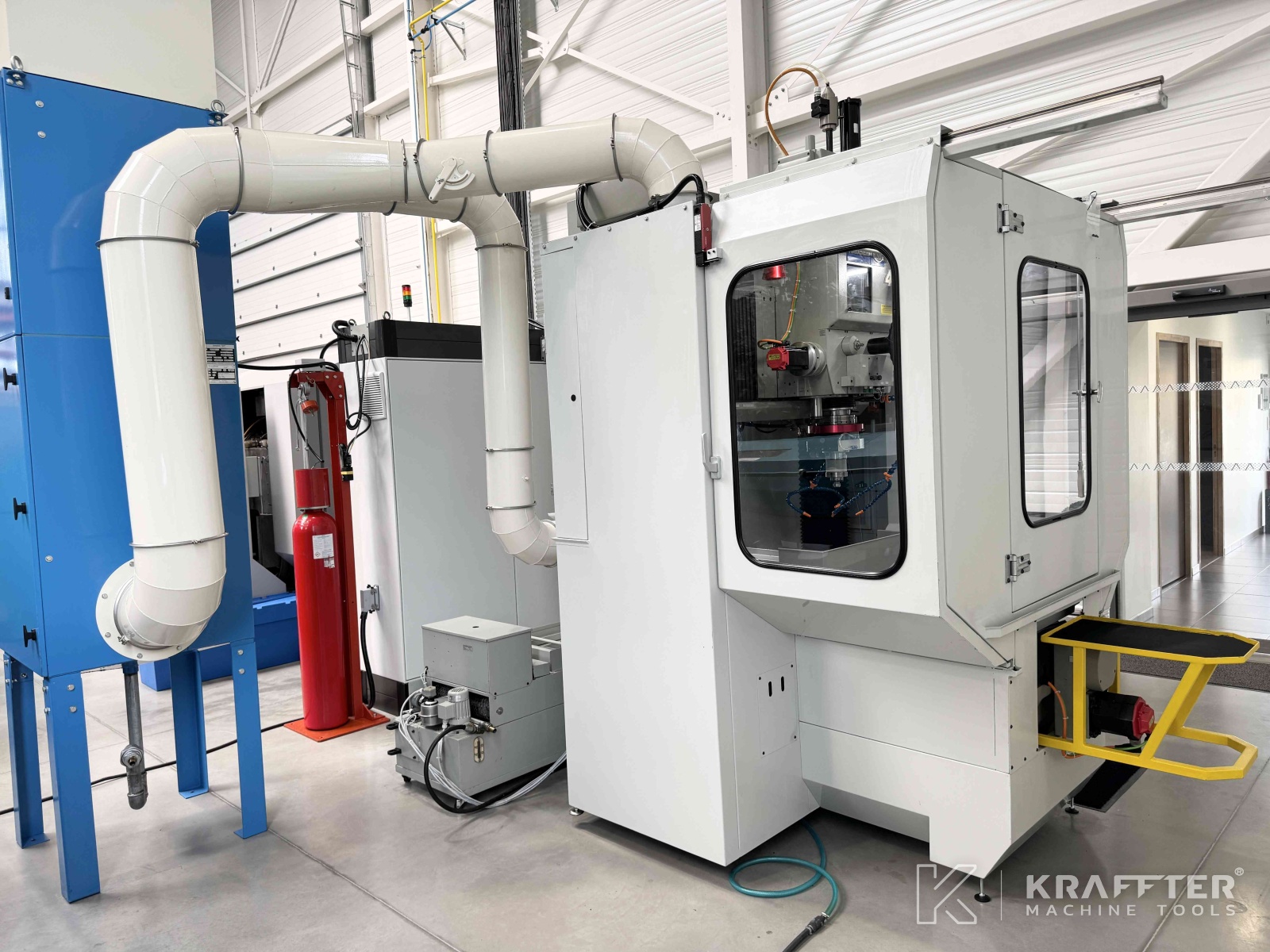

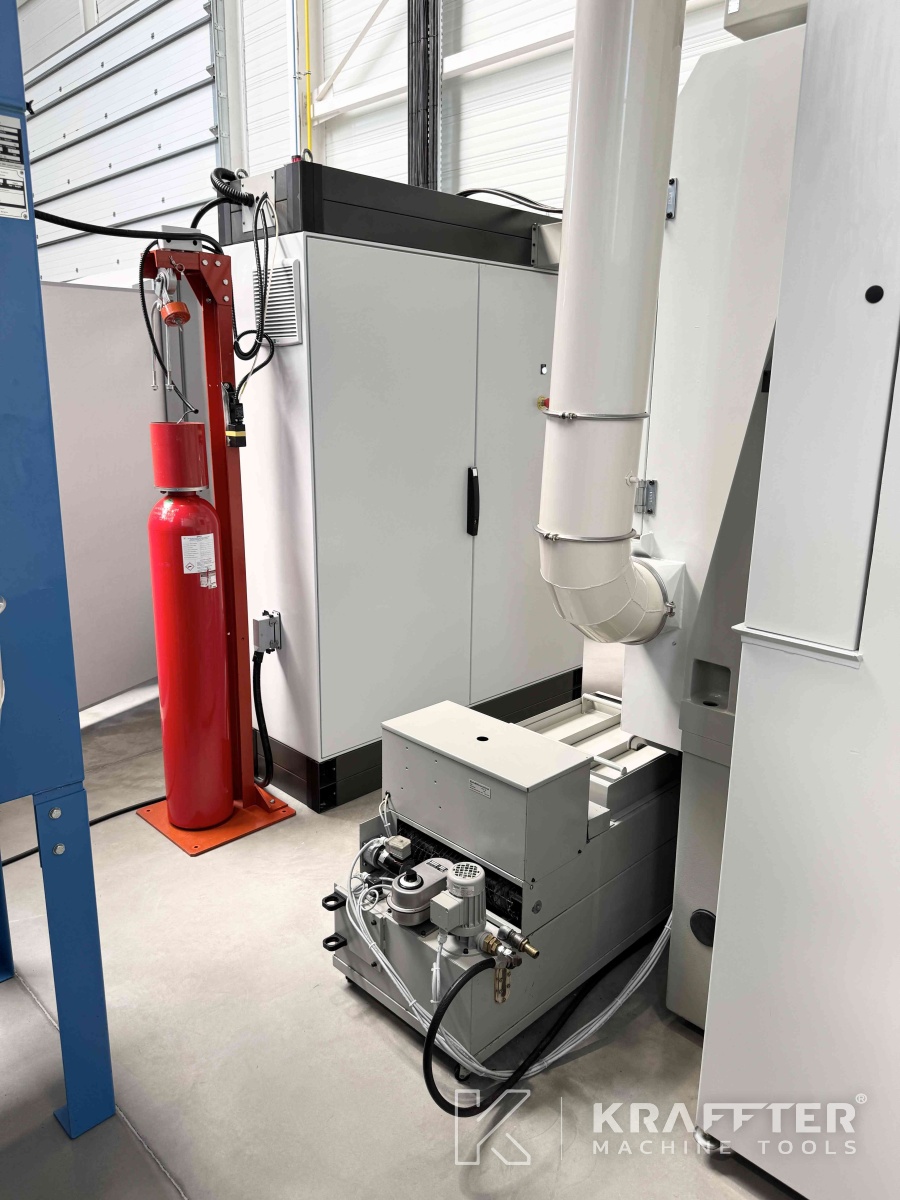

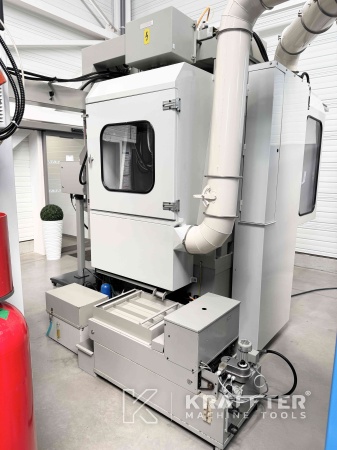

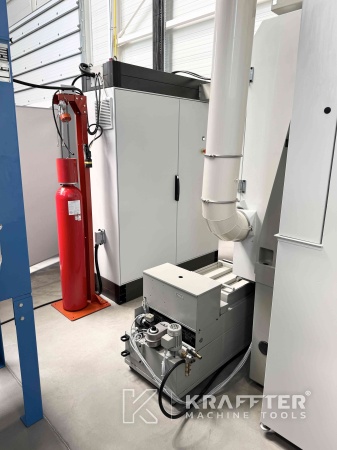

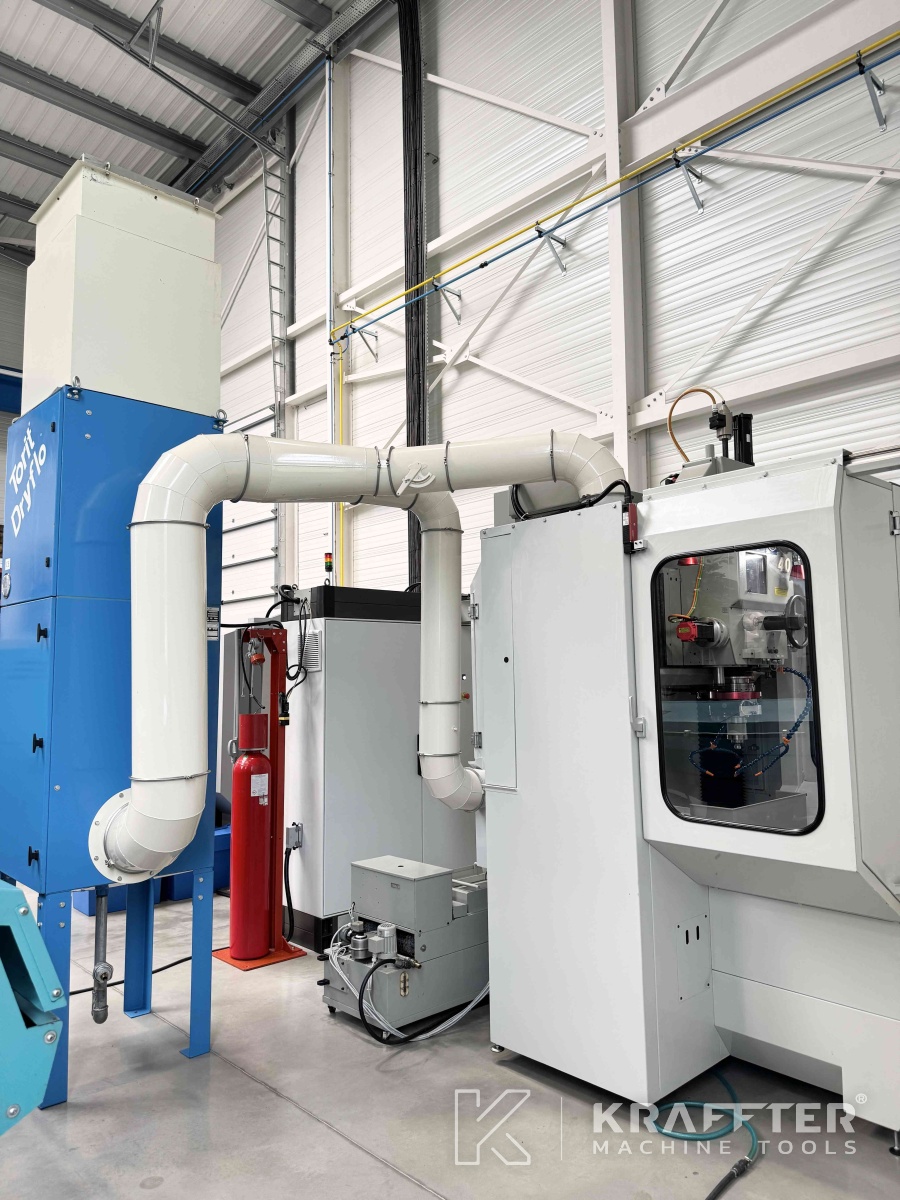

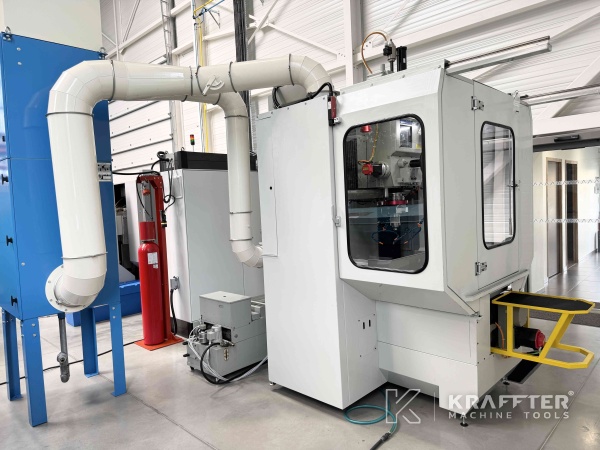

• 1 DONALDSON oil mist extraction unit DMC-D1,

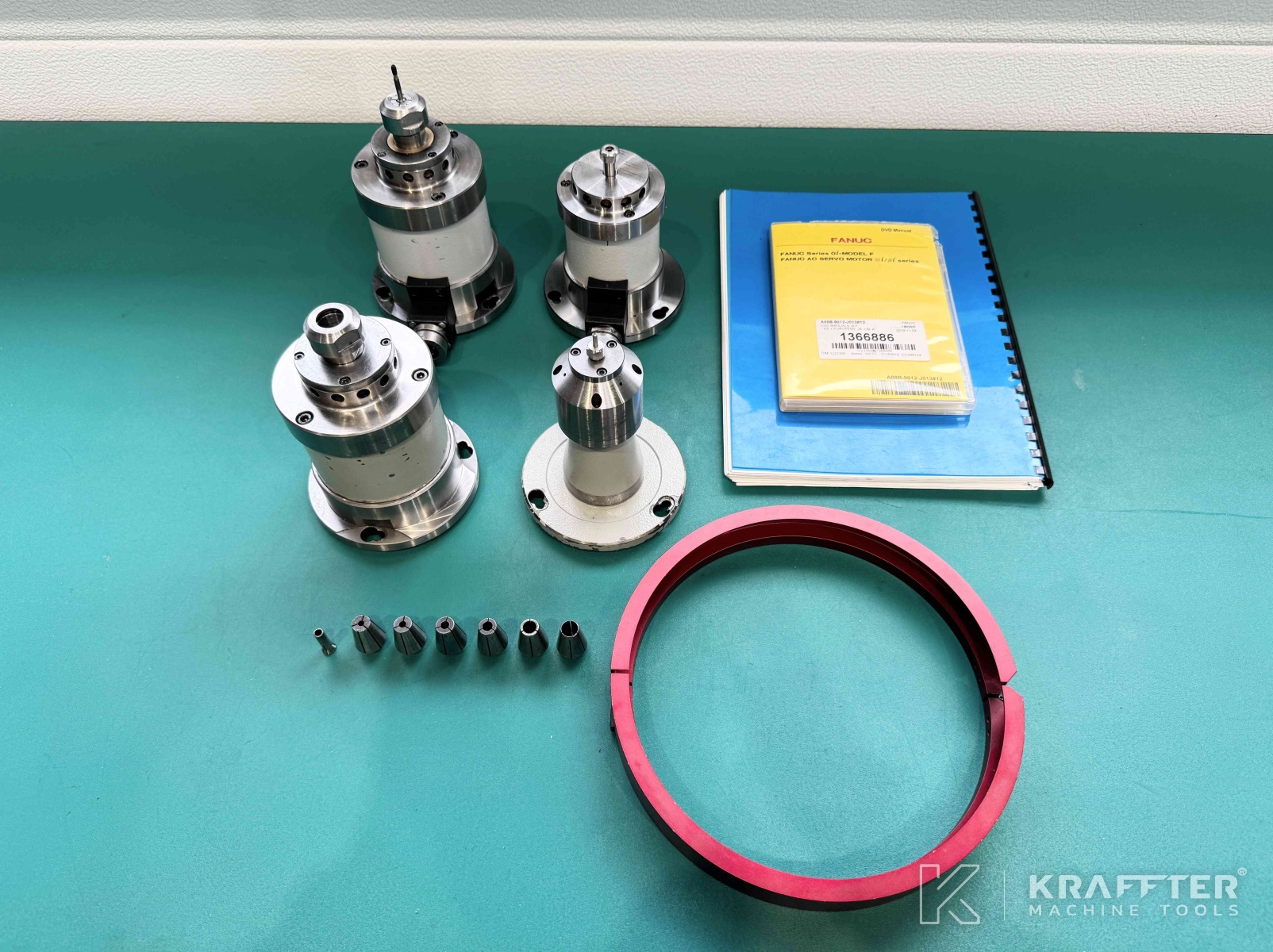

• 2 45 S grinding motors, speed 9000 - 4500 [rpm] - reference: 144017,

• 1 80 S grinding motor, speed 40000 - 80000 [rpm] - reference: 144021,

• 1 T10 grinding turbine, speed: 100,000 [rpm] - reference: 157420,

• 1 turbine holder with filter - reference: 166497,

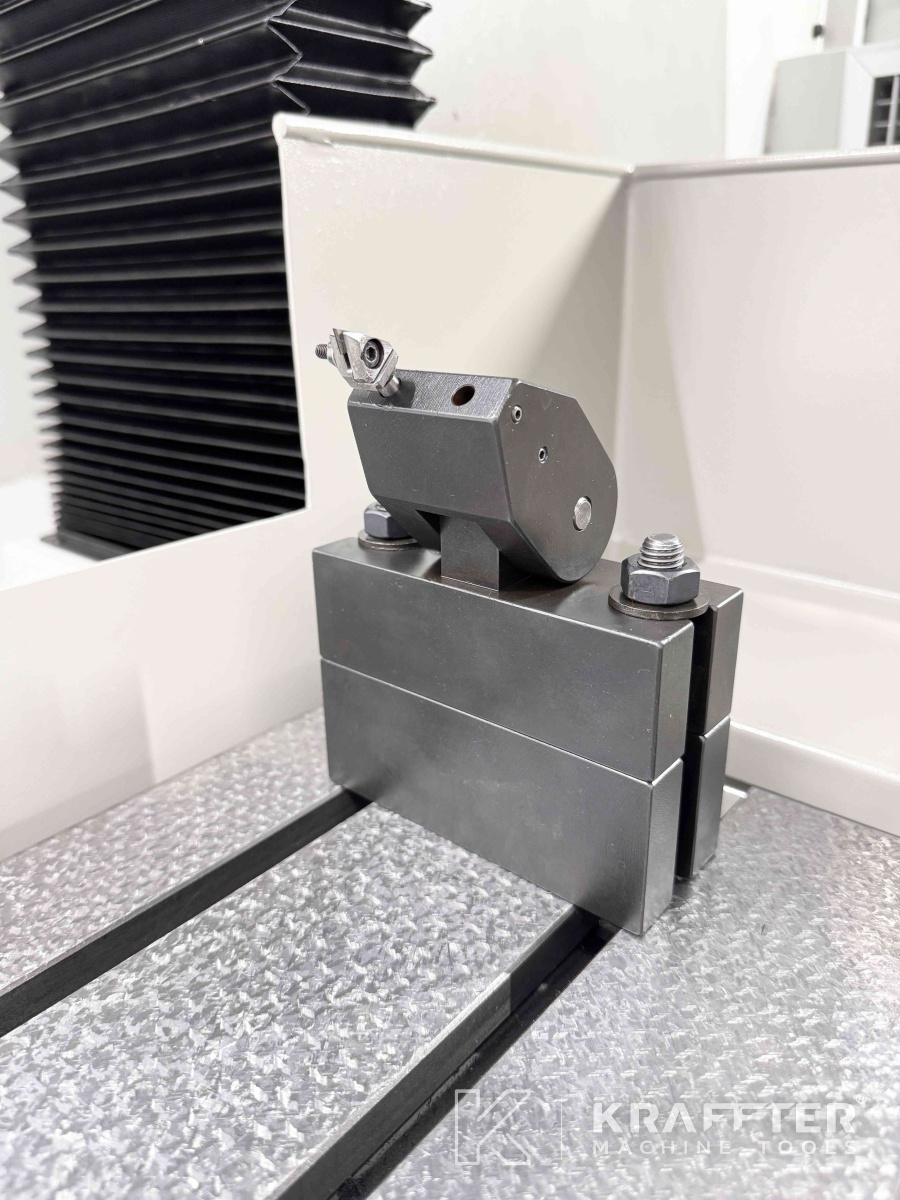

• 1 profile dresser on table, 200 [°] pivotable - reference: 194590

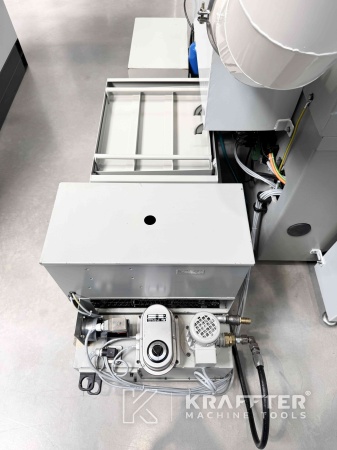

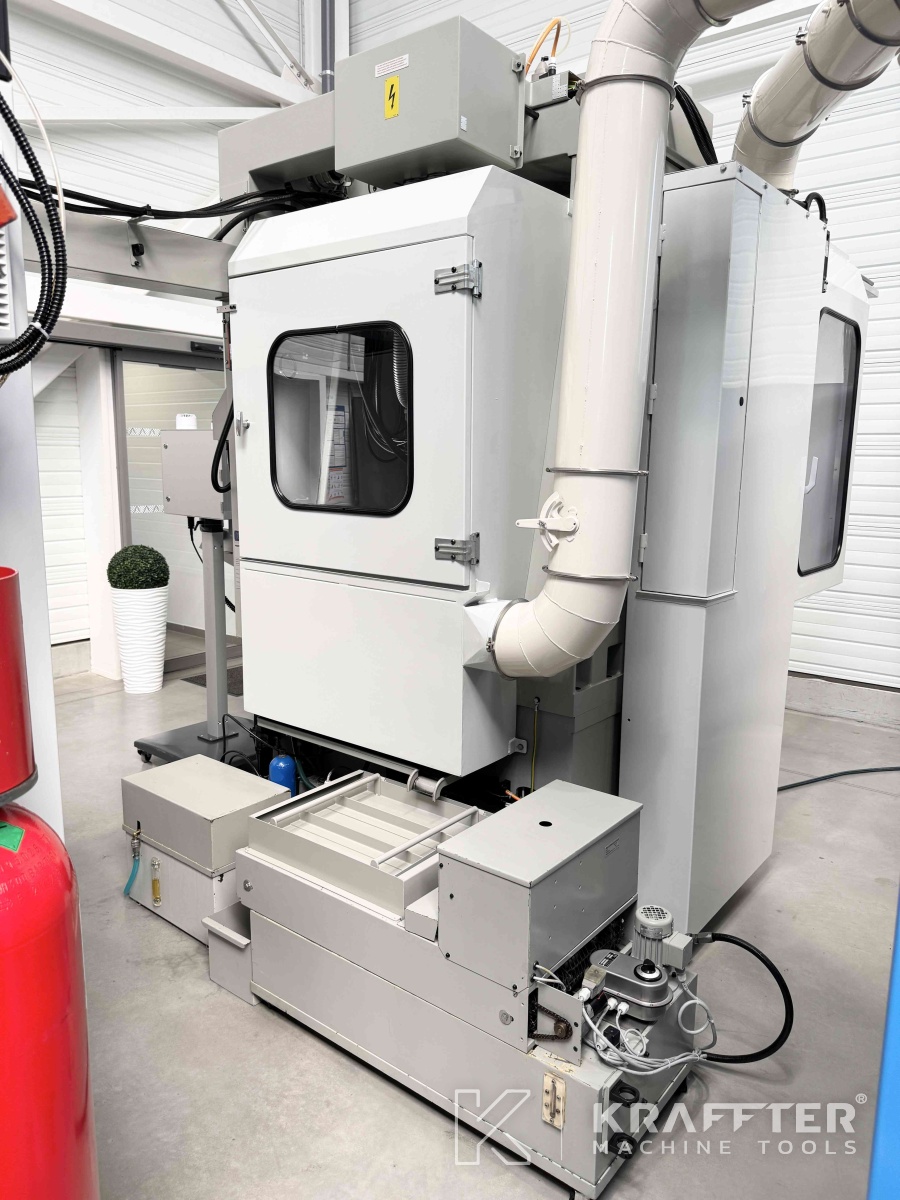

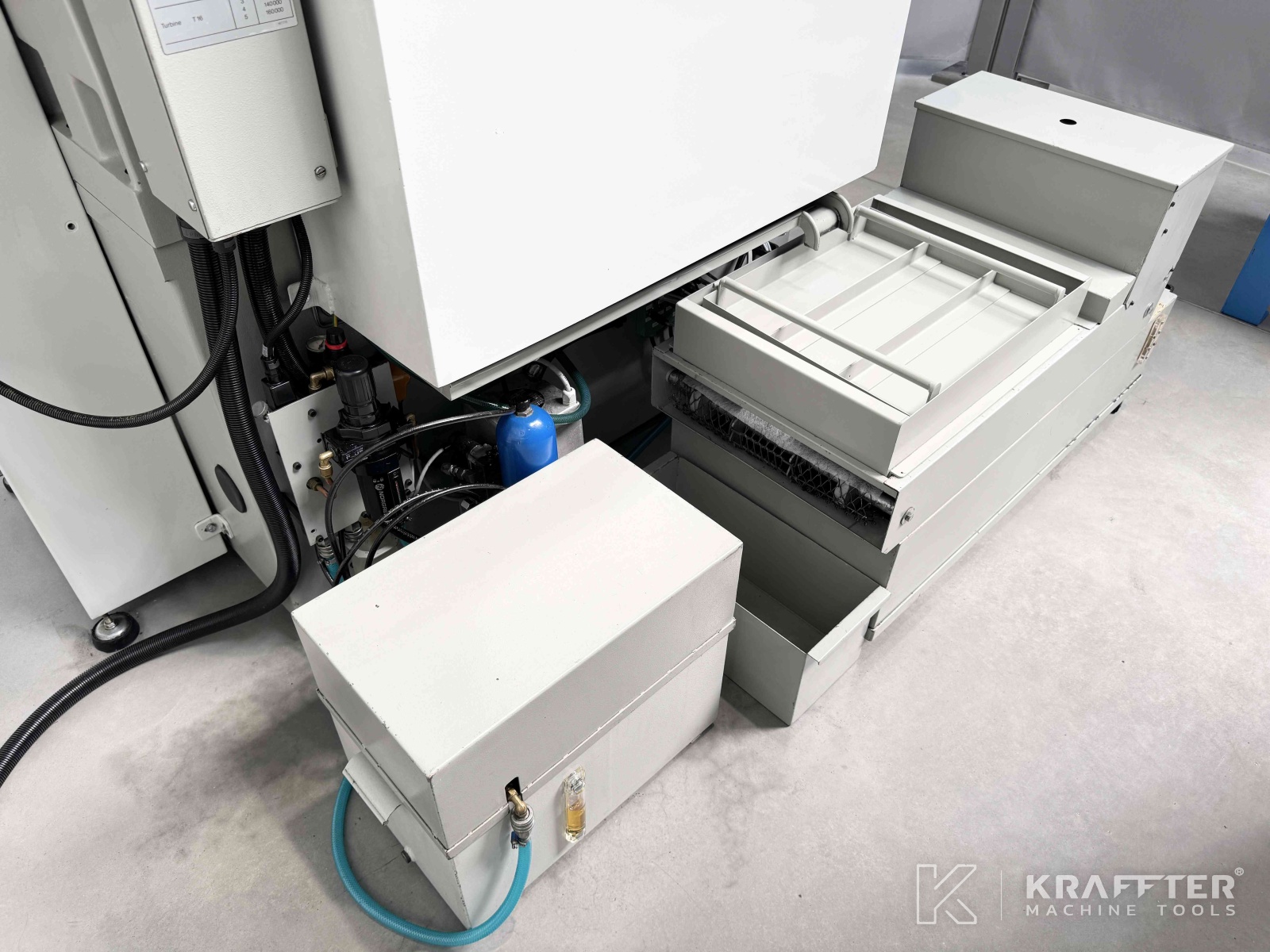

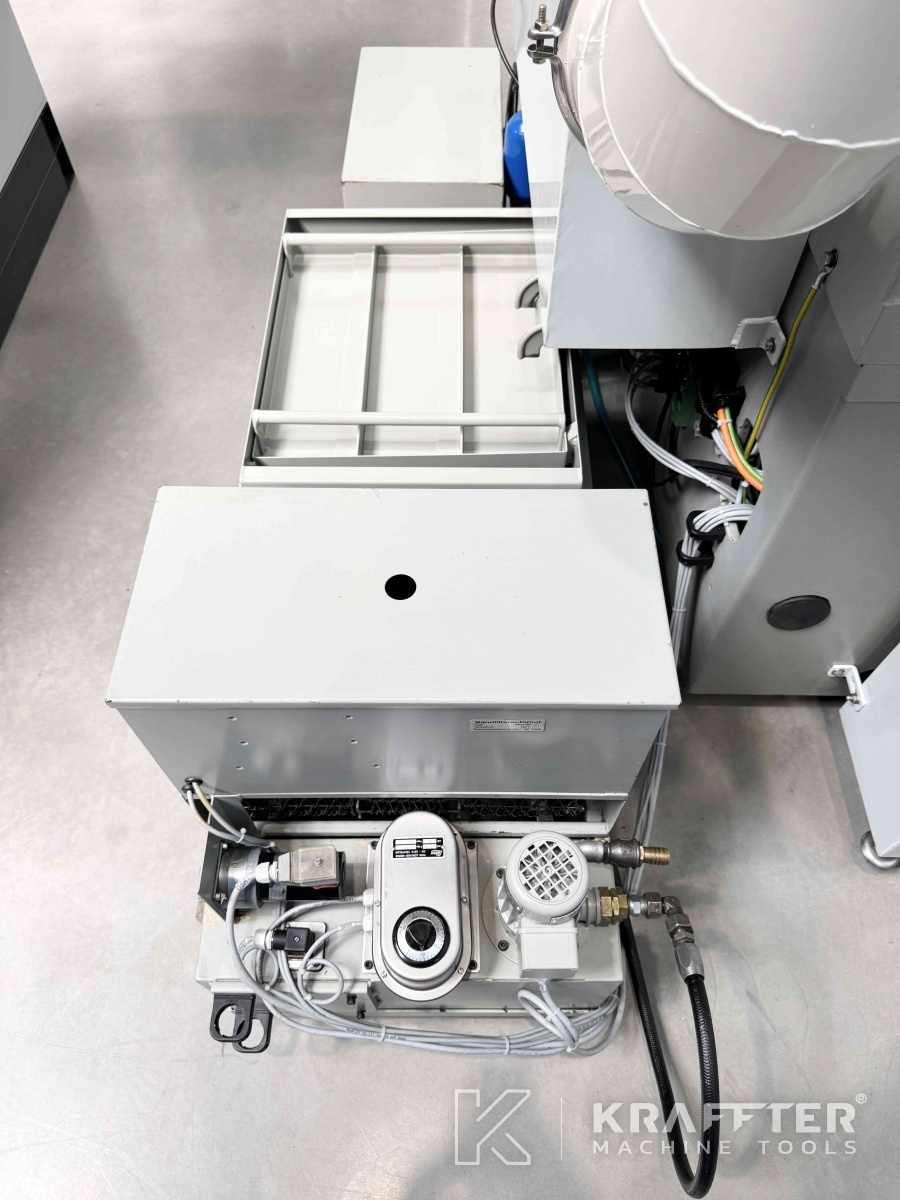

• 1 coolant tank + paper tape filtration device

• 6 collets,

• 1 operator's manual in French.

RETROFIT WORK CARRIED OUT IN 2020:

ELECTRICAL SECTION:

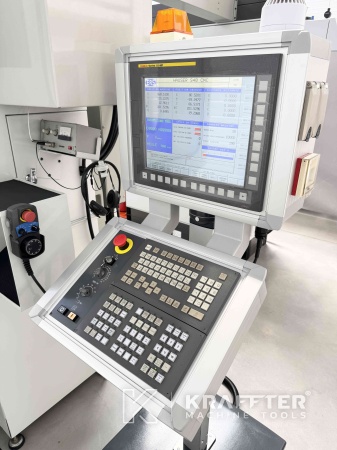

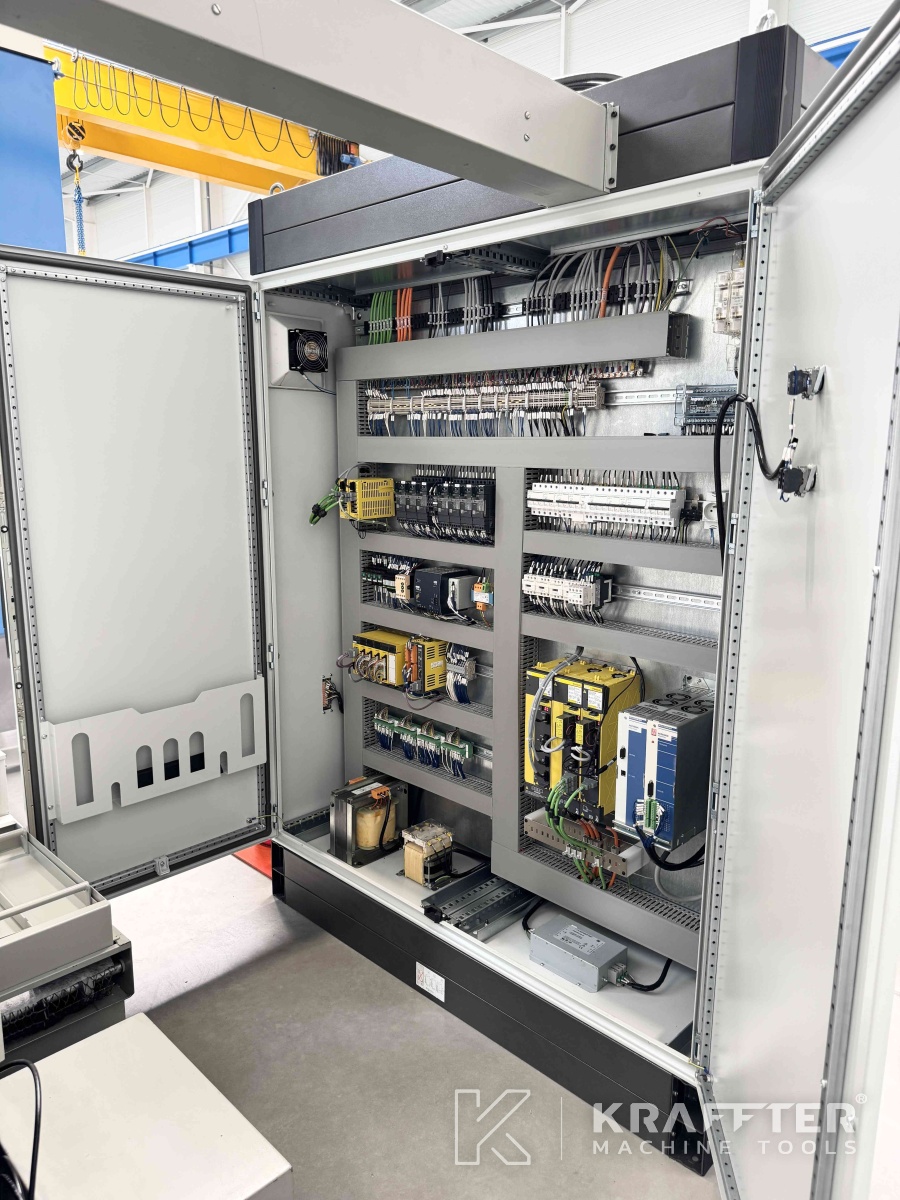

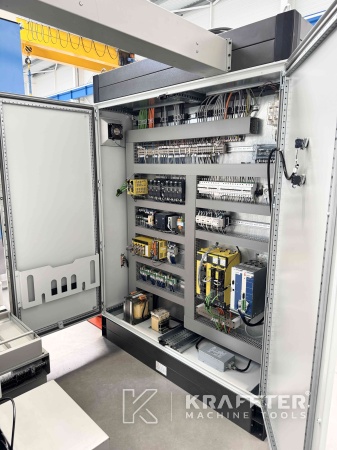

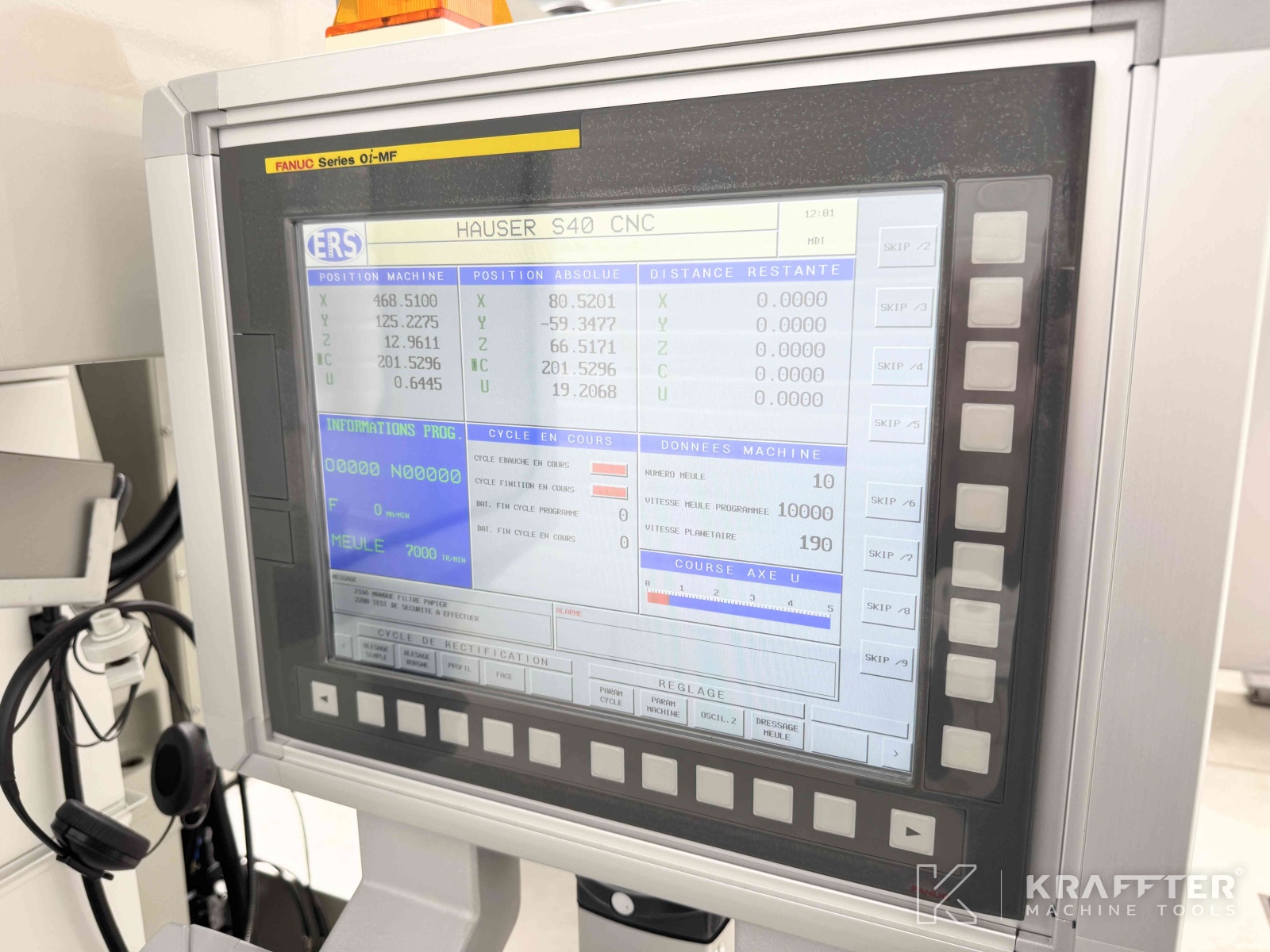

• Supply of an electrical cabinet equipped with a FANUC 0iF numerical control,

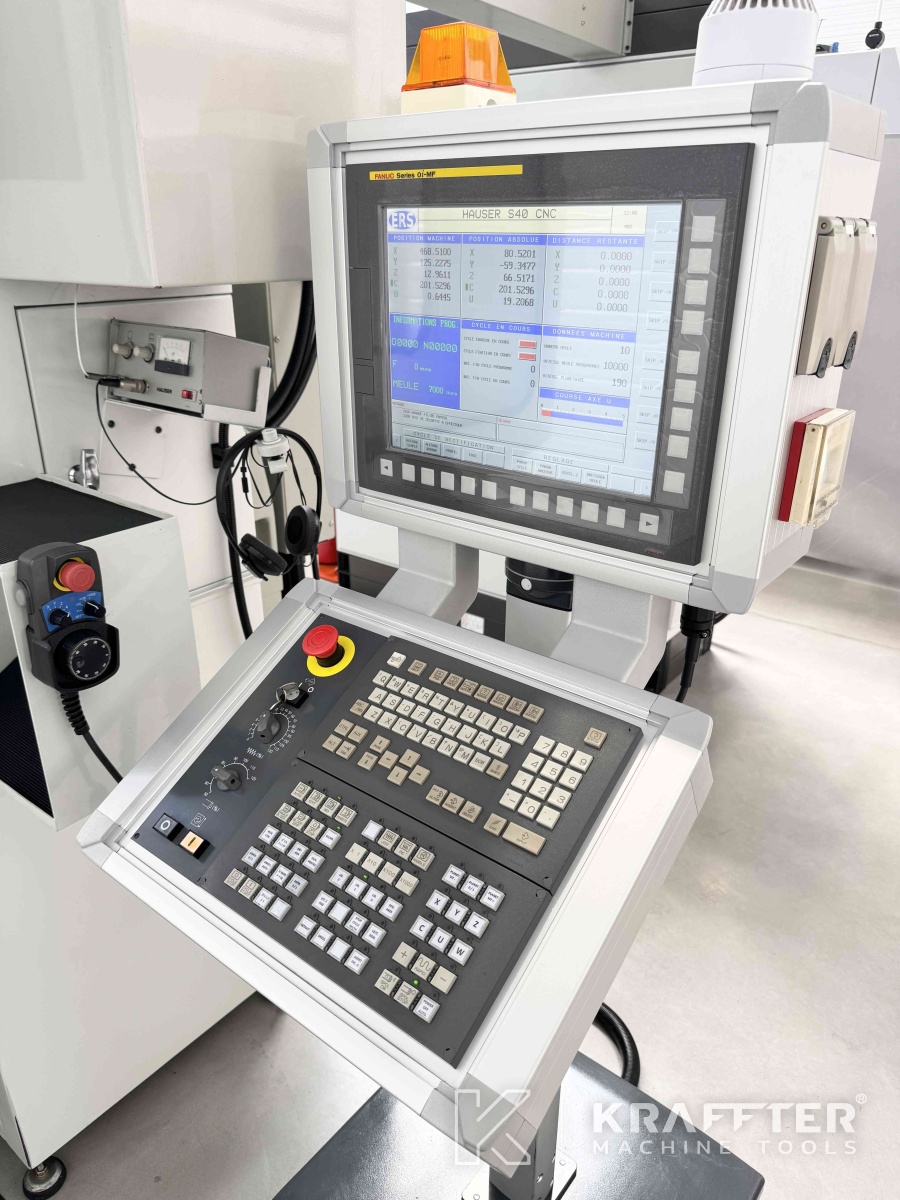

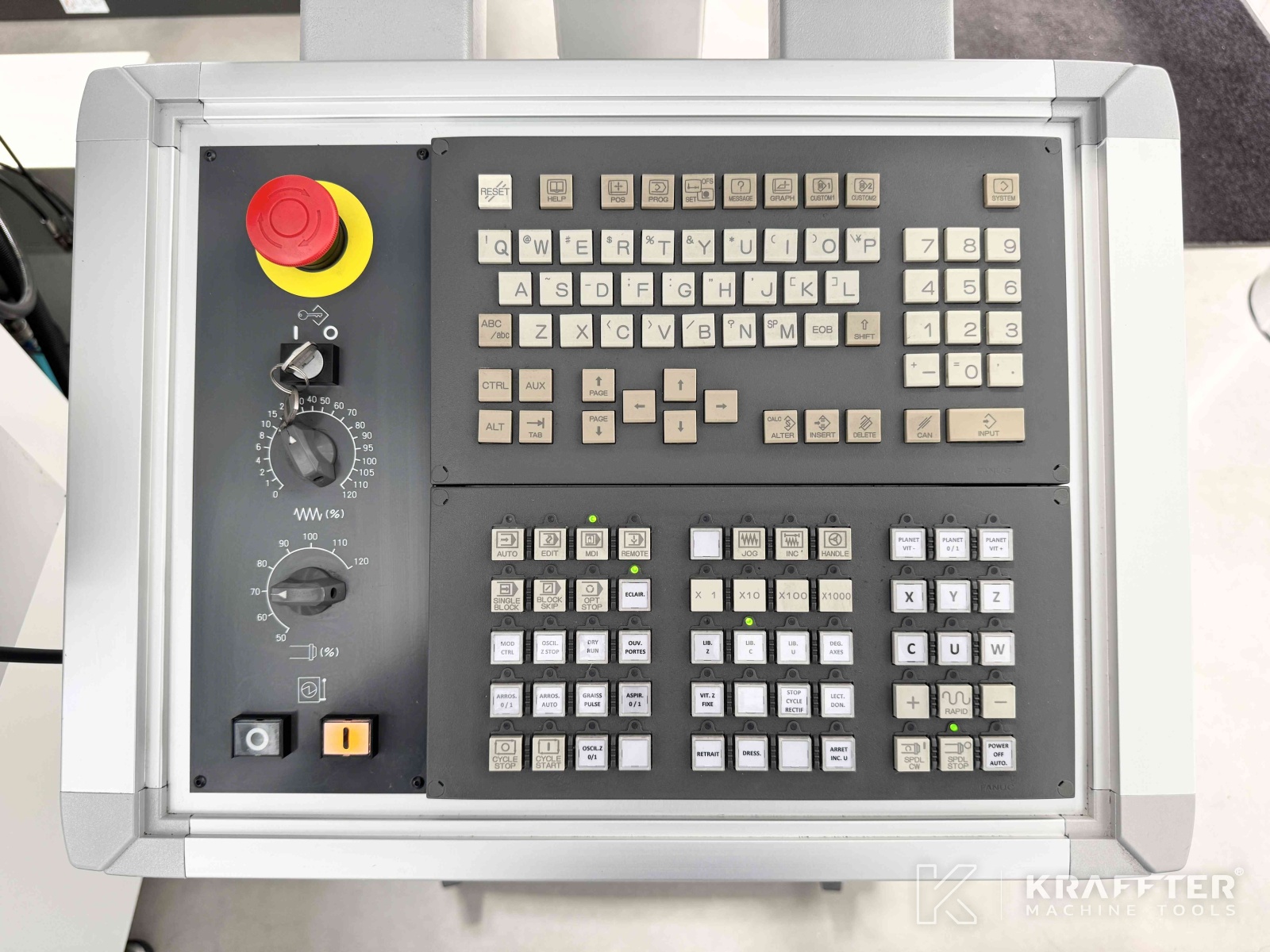

• Supply of a control panel for FANUC with 15" screen and keyboard,

• Axes controlled by the numerical control: X, Y, Z, C, and U,

• Wiring of the electrical cabinet,

• Machine wiring with replacement of all sensors and cables,

• Connection and powering of the electrical cabinet,

• Adjustment of axis servos,

• Installation and programming of cycles and conversational pages for HAUSER.

MECHANICAL SECTION:

• Supply of axis motor adapters,

• Supply of an electrical rotary joint,

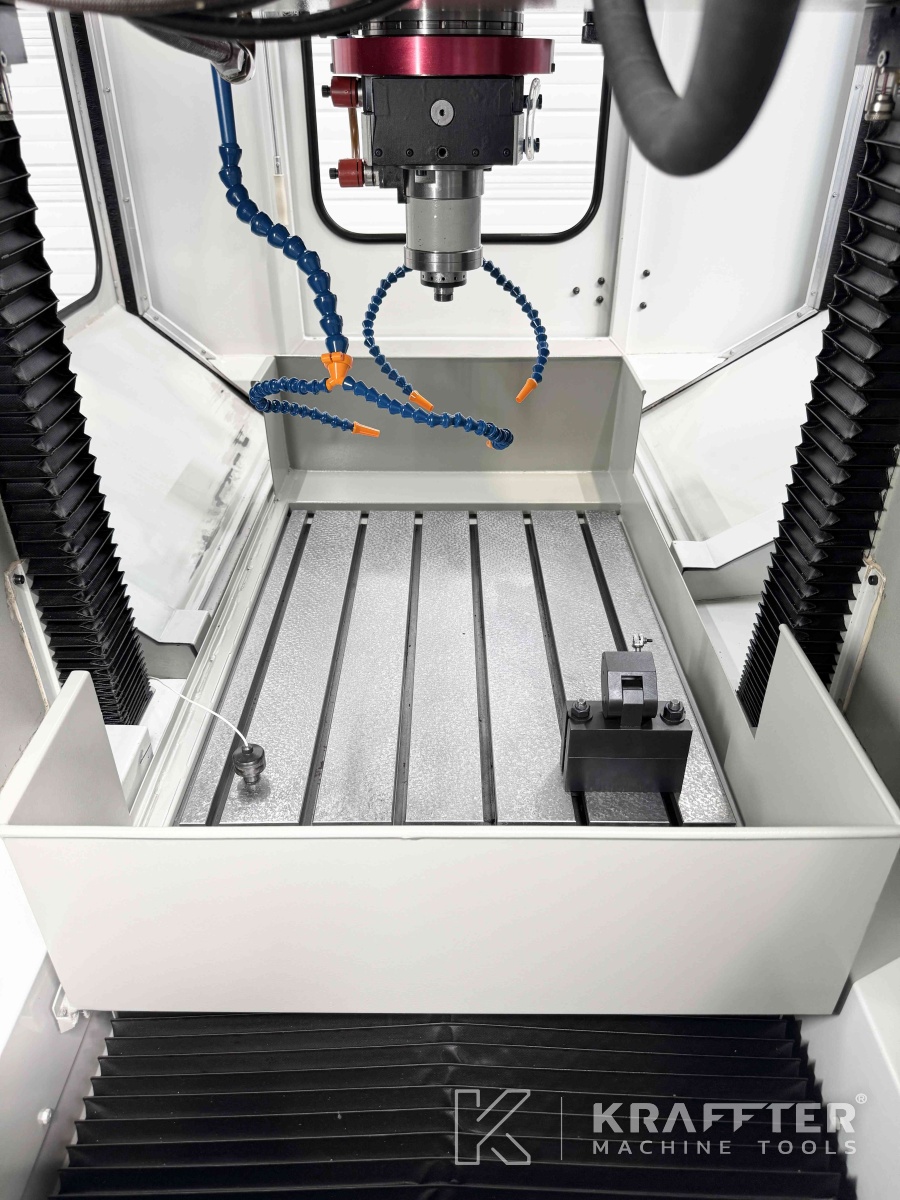

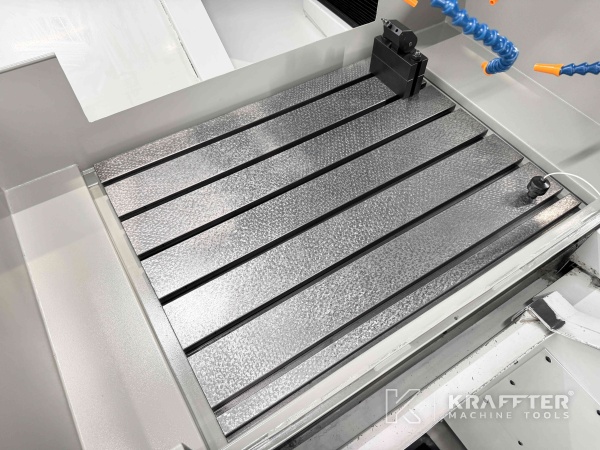

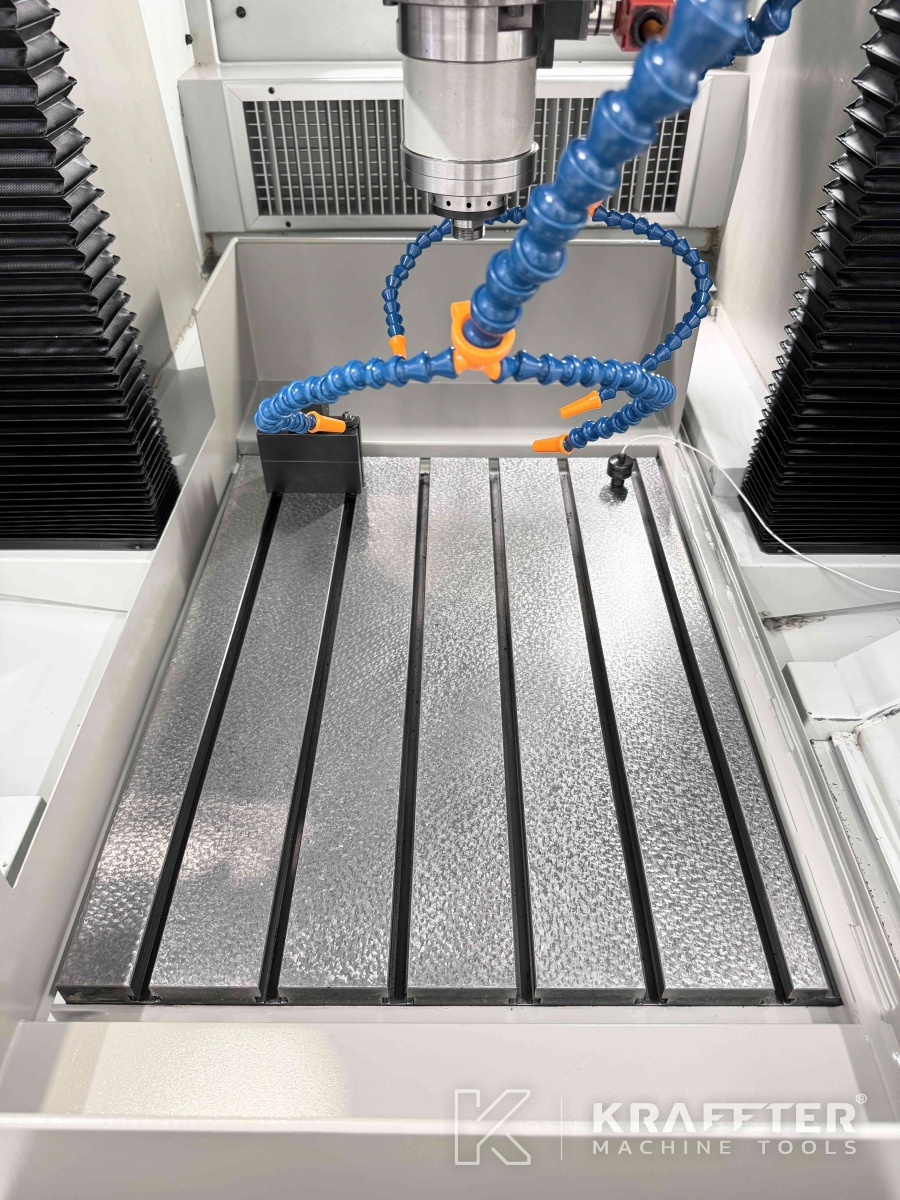

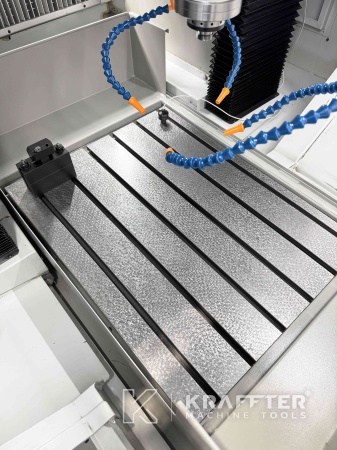

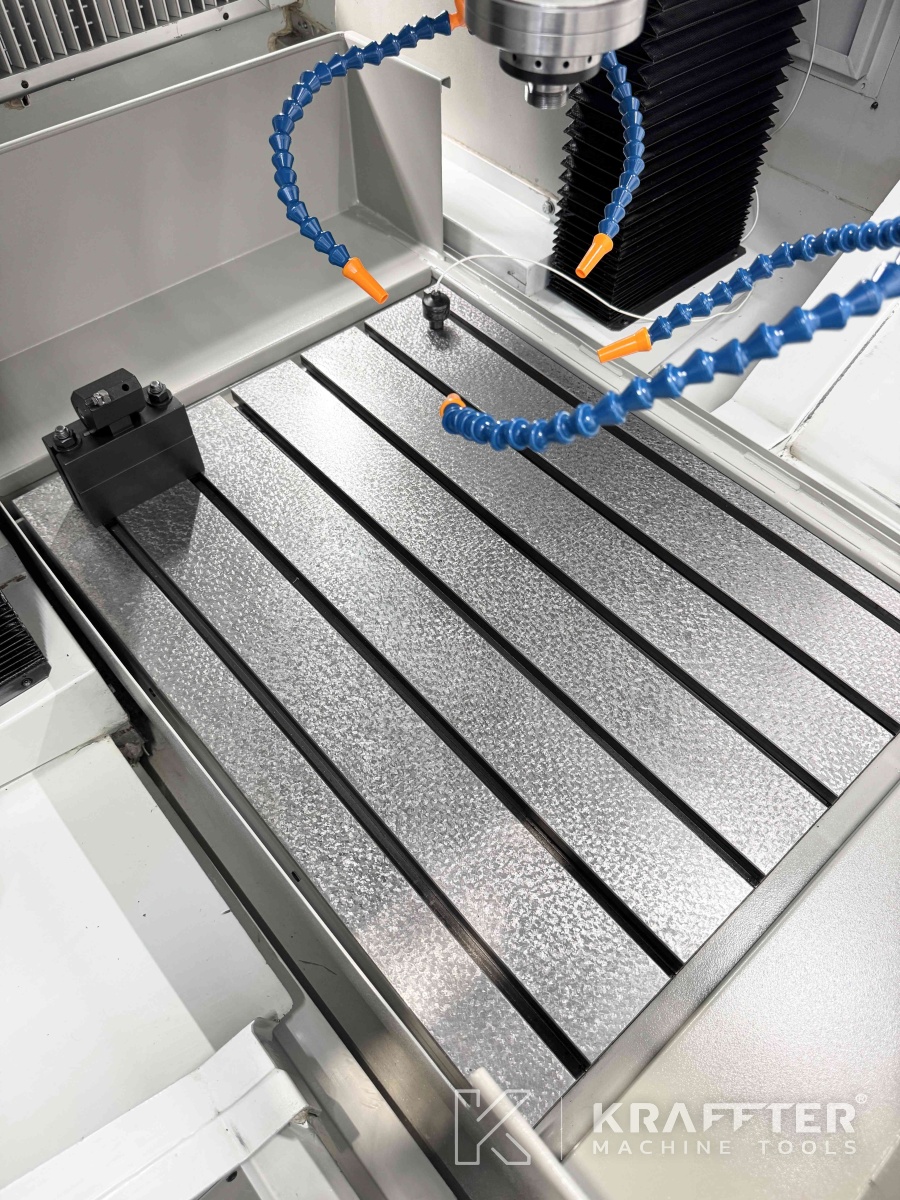

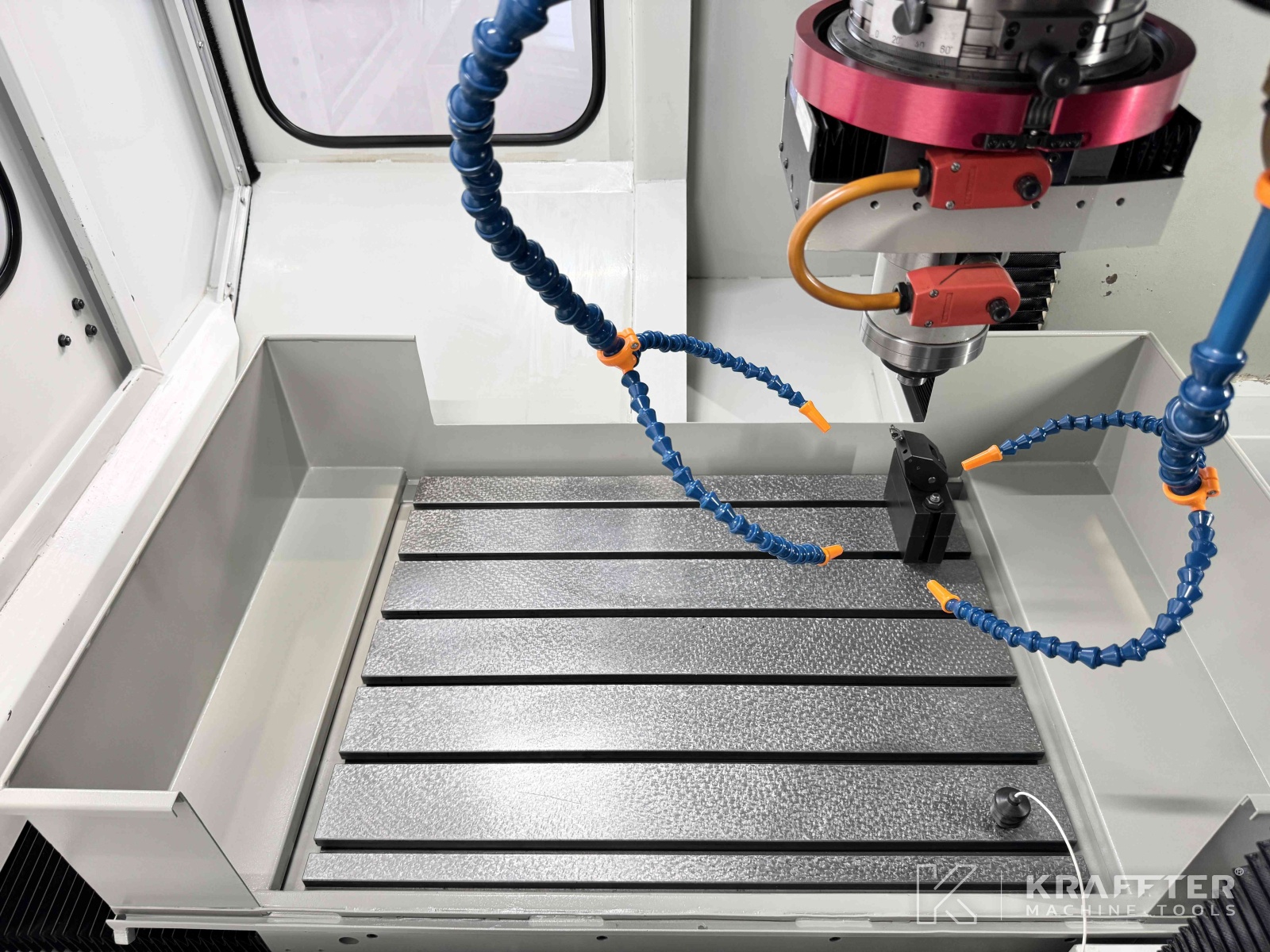

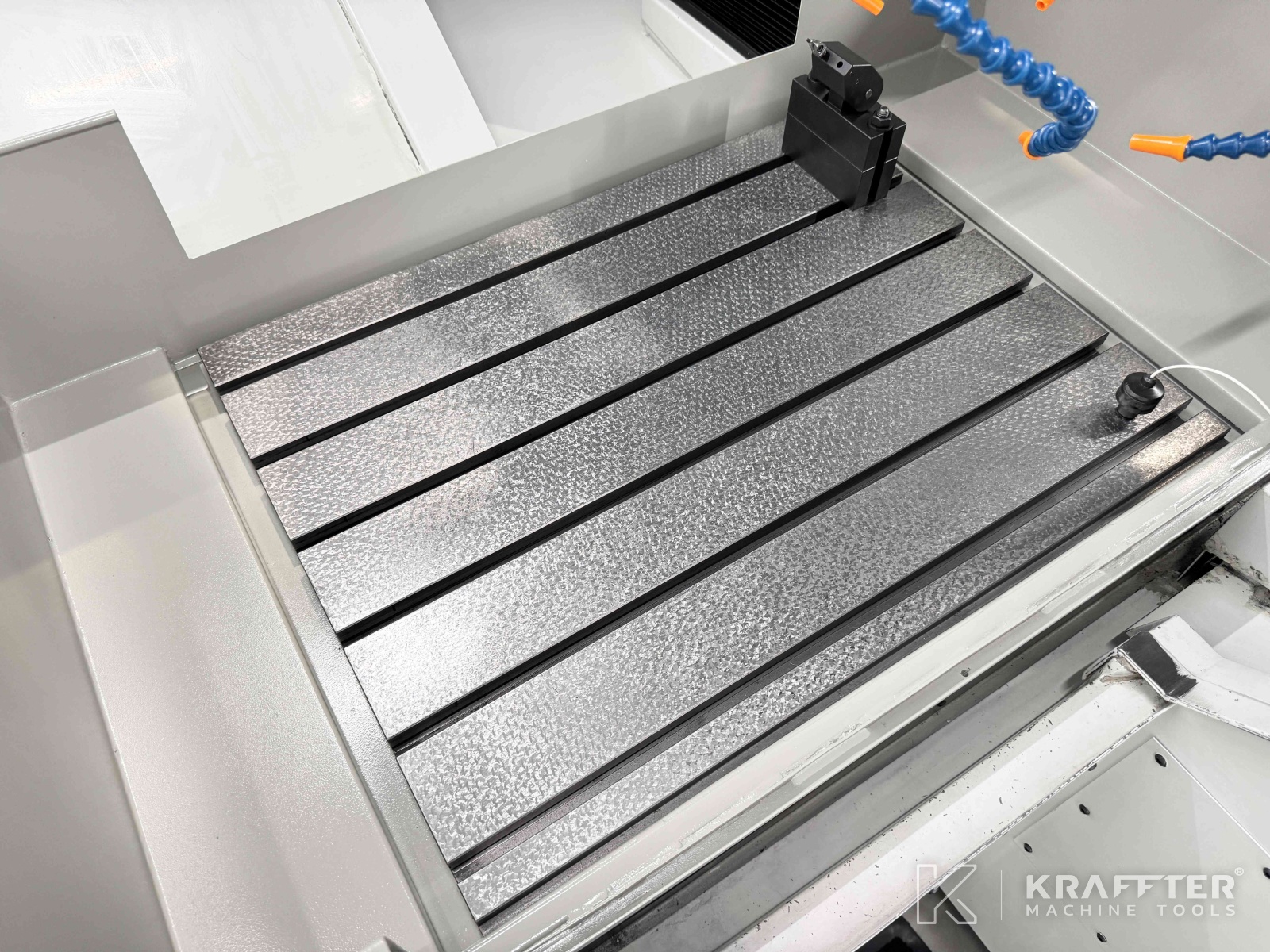

• Scraping of the table surface,

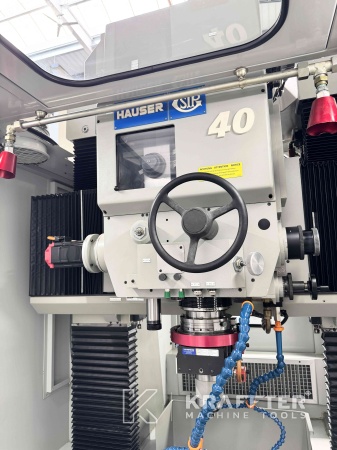

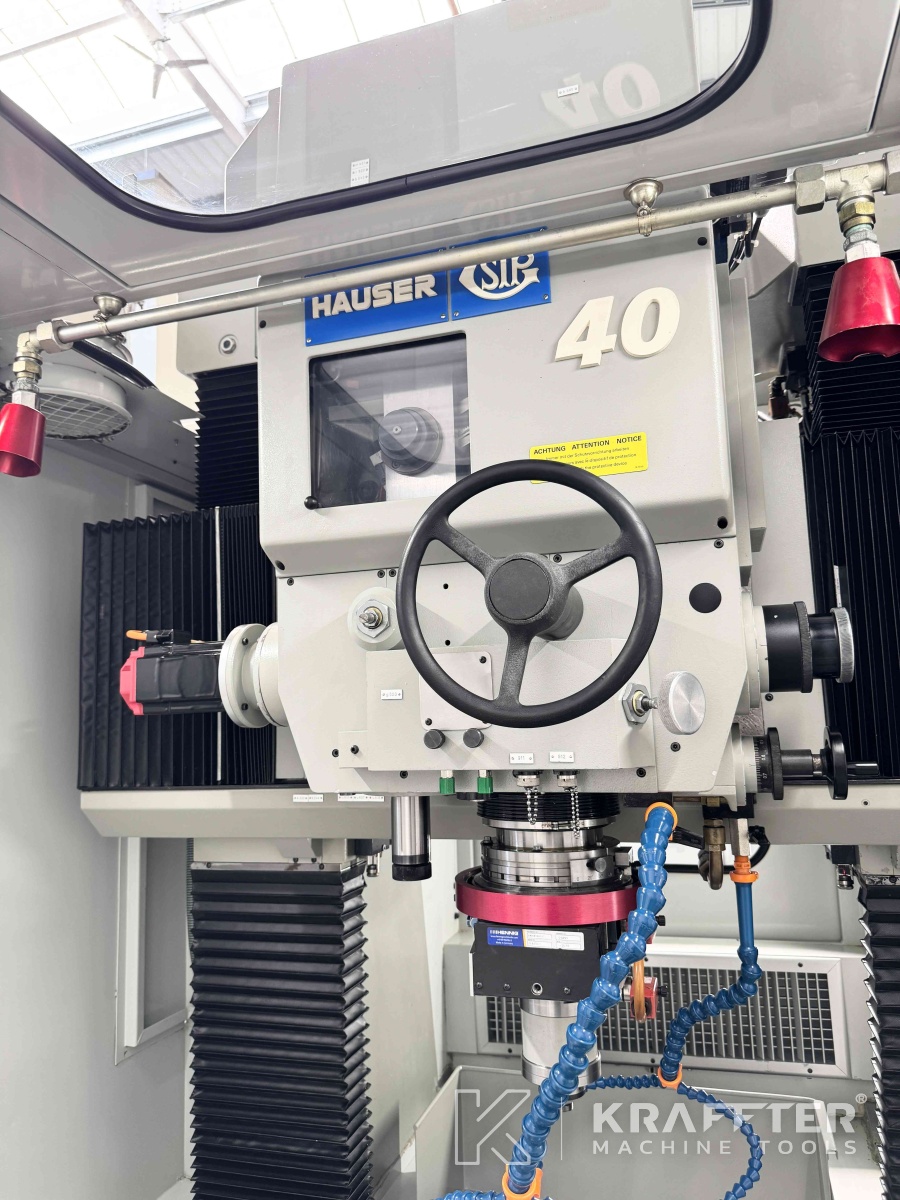

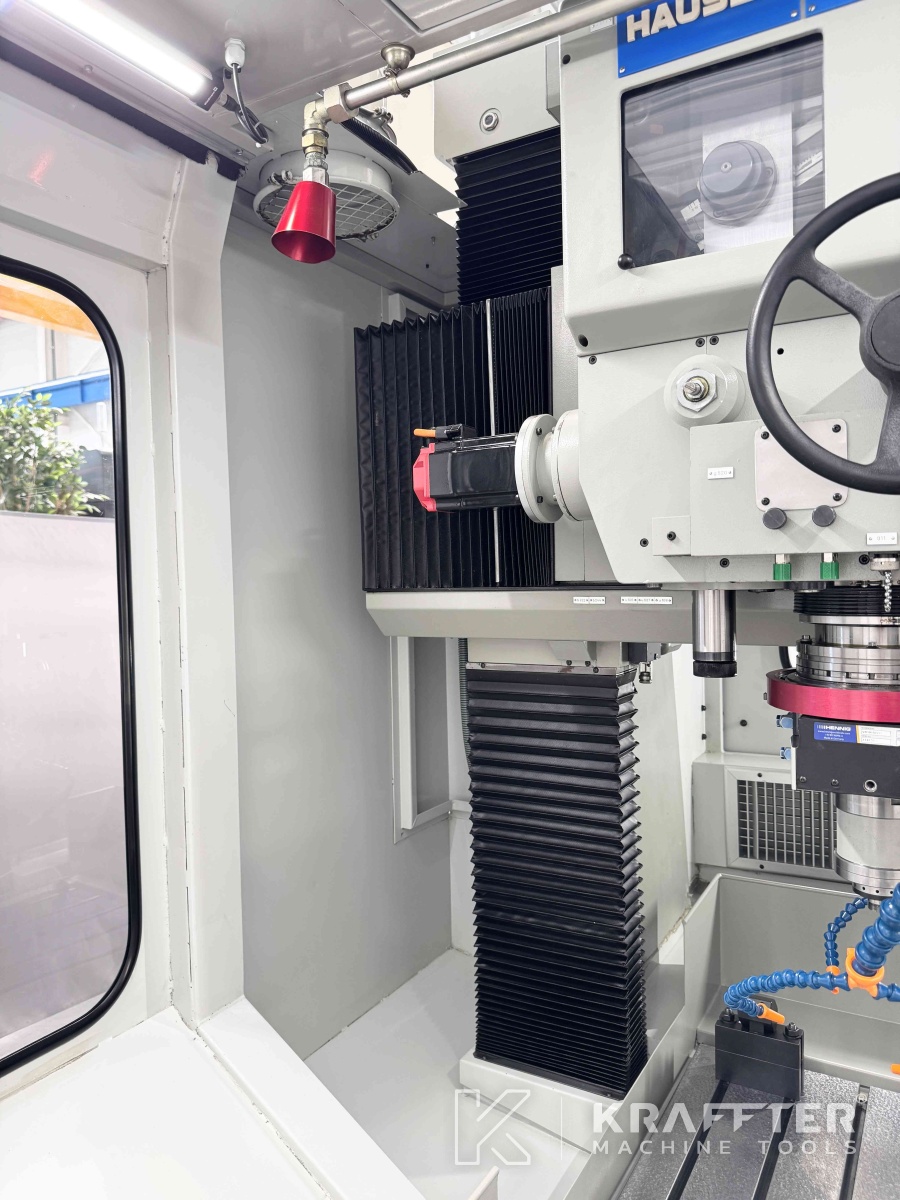

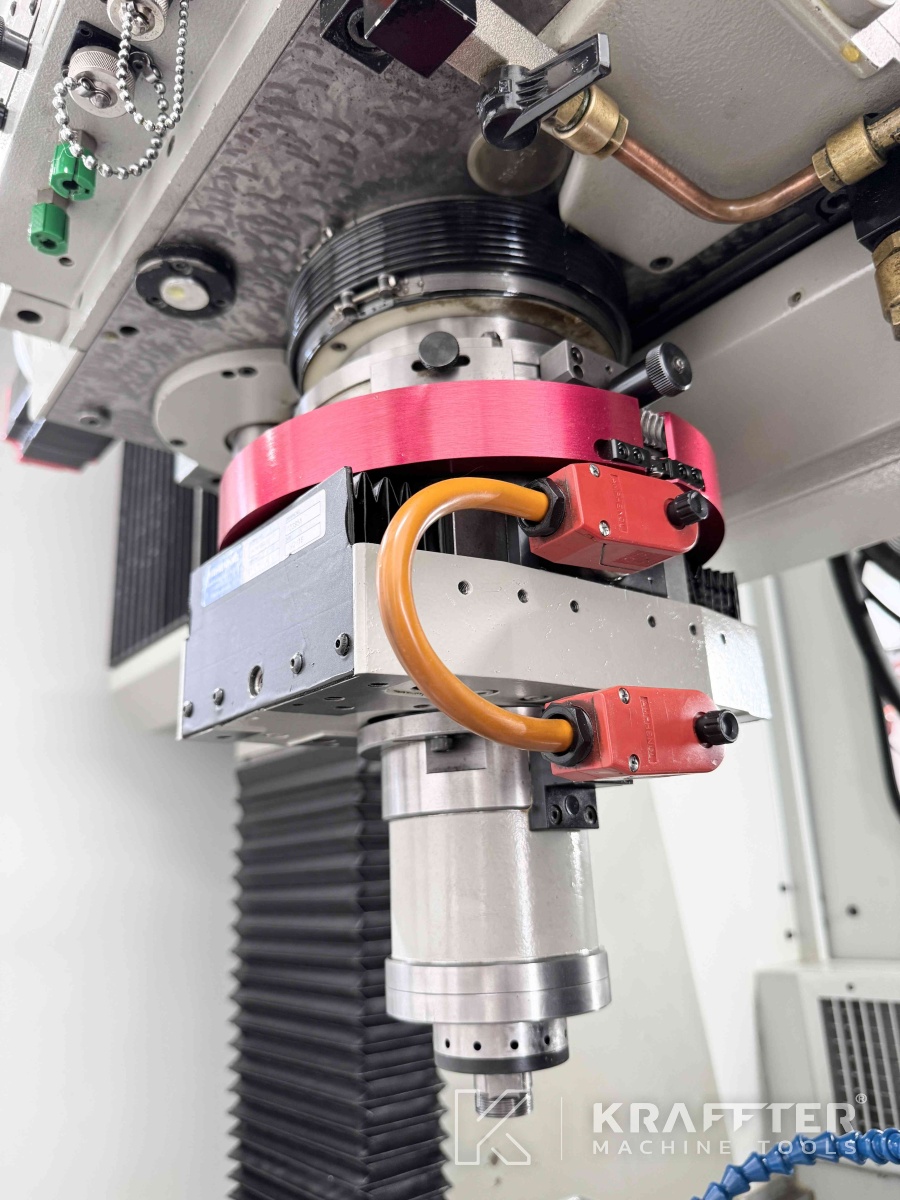

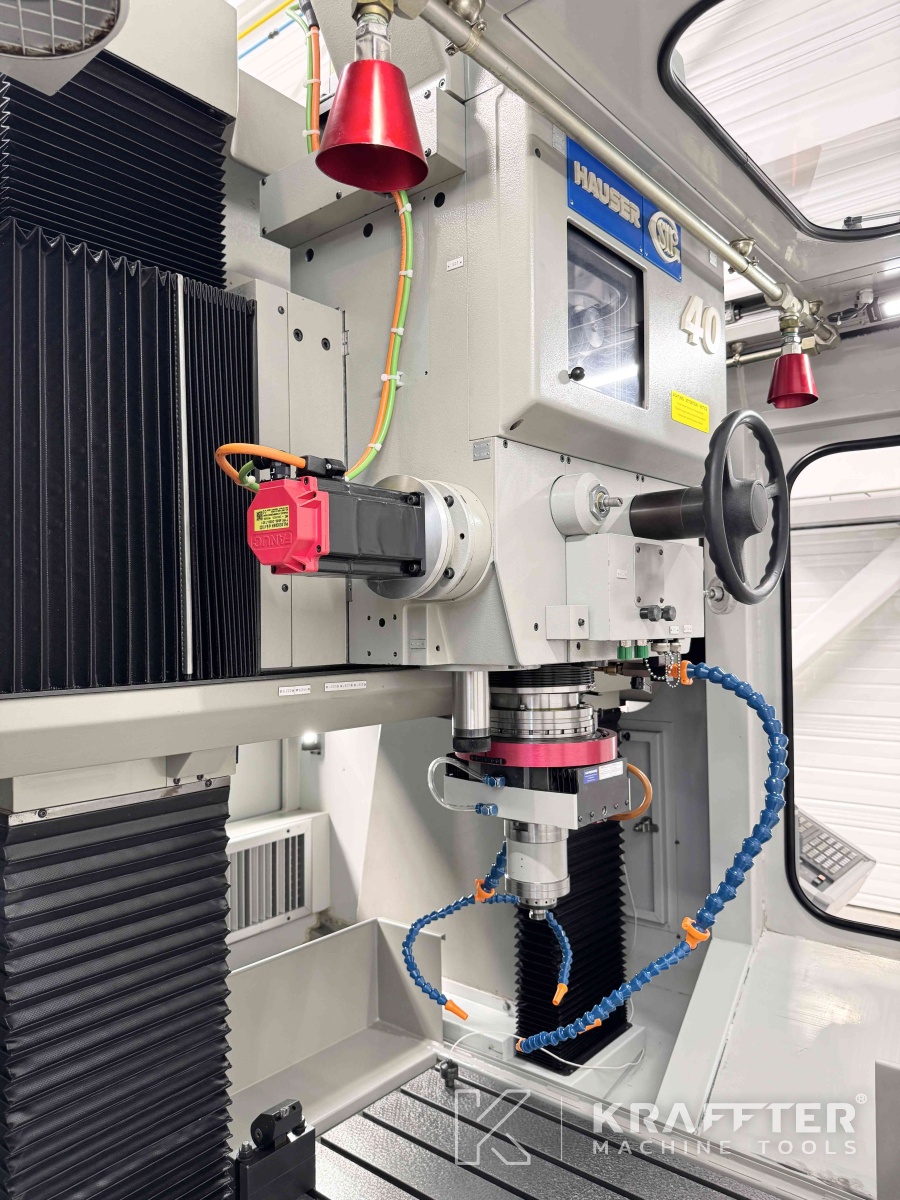

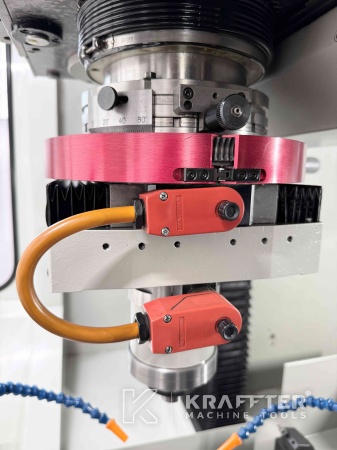

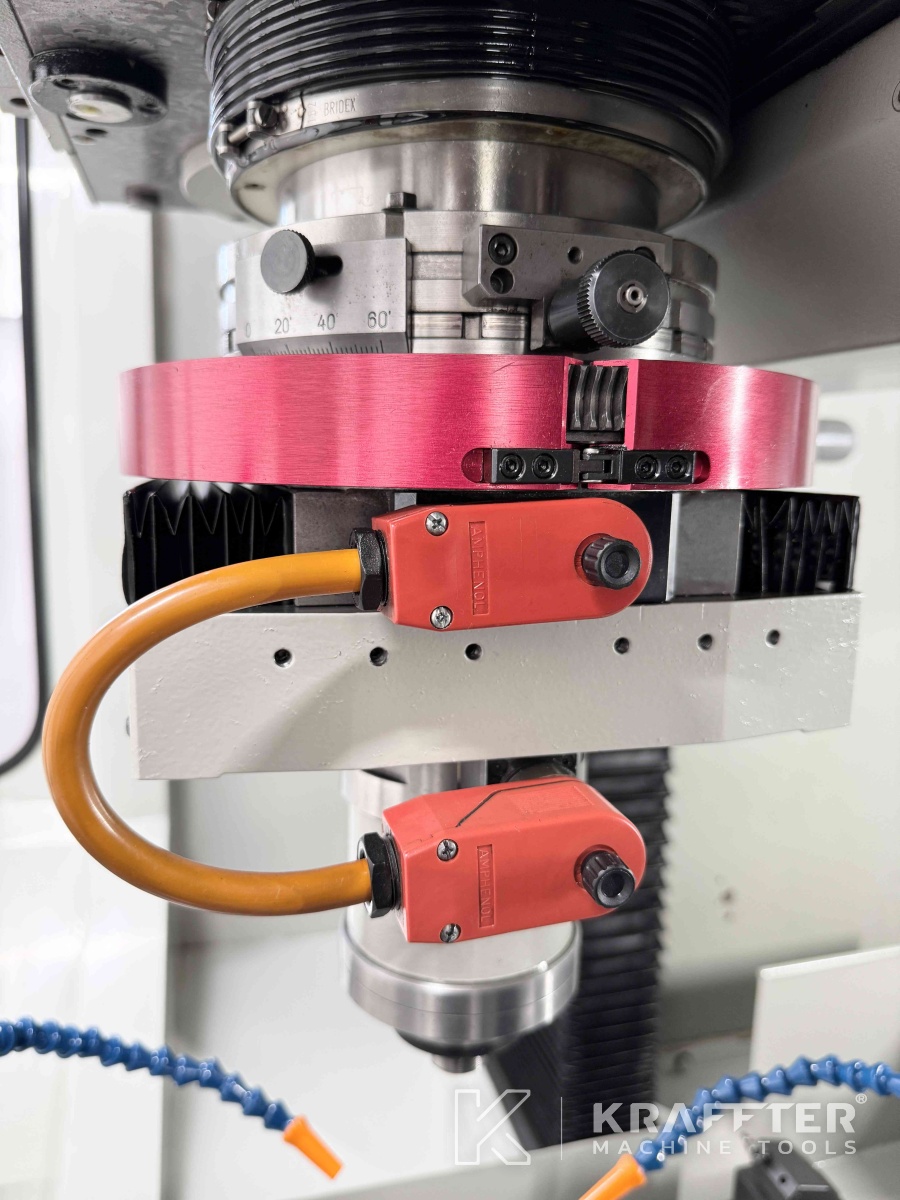

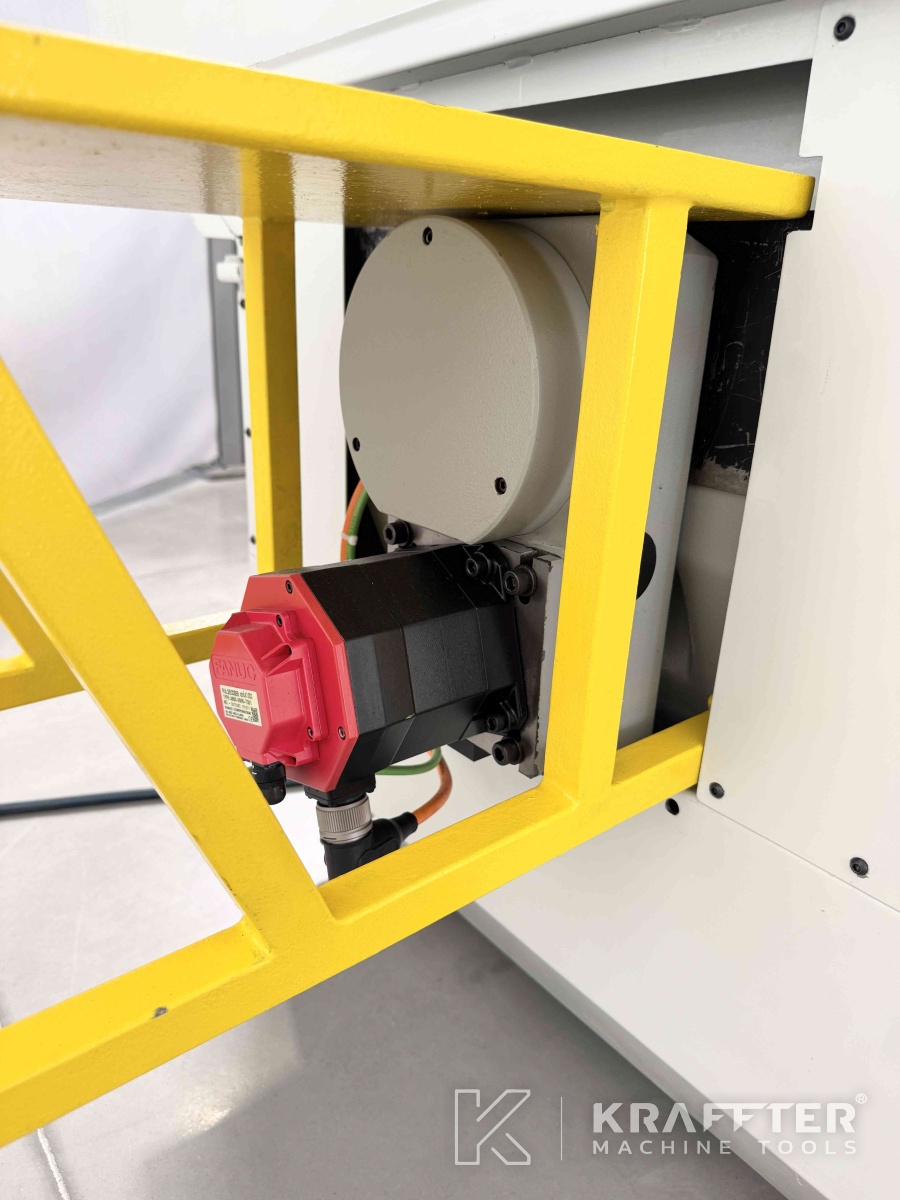

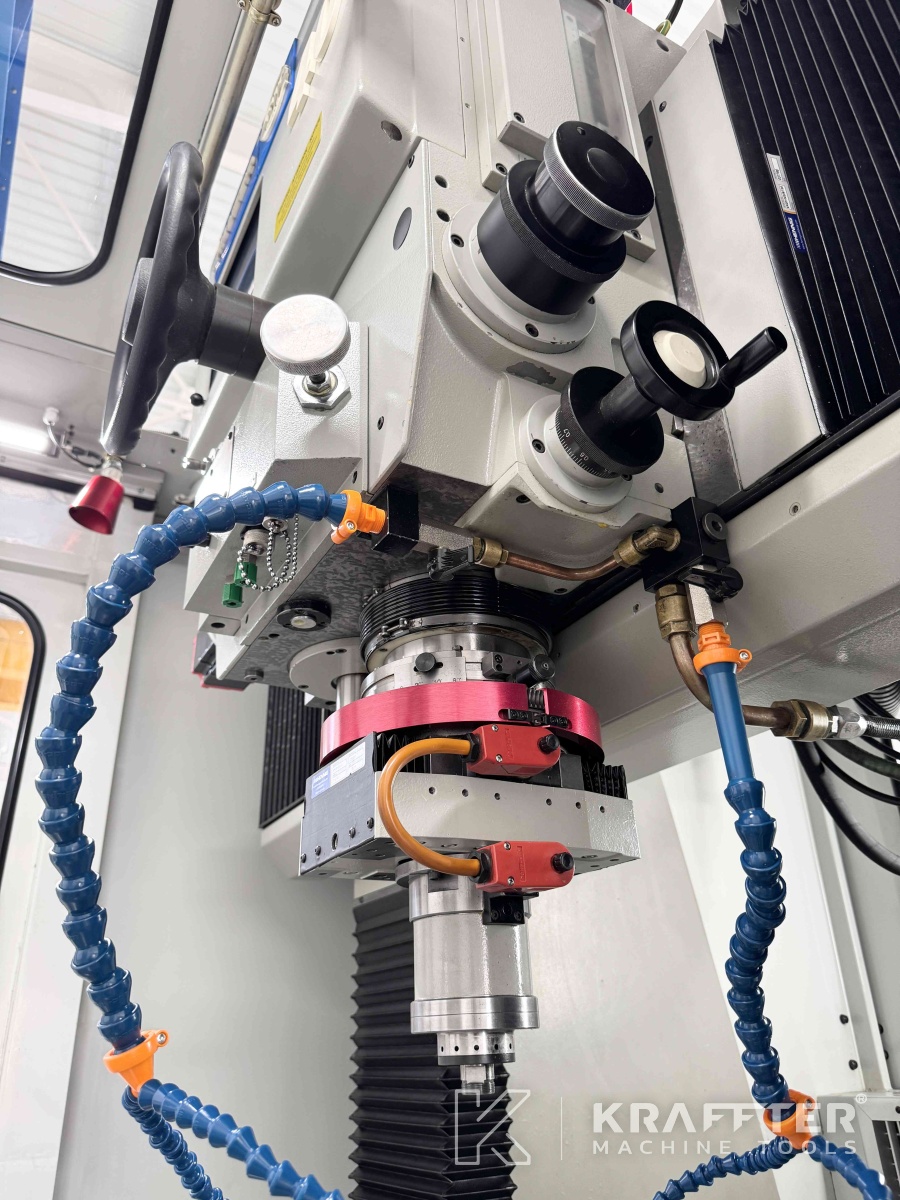

• Reassembly of the entire head and adaptation of the Fanuc motors on the C and U axes,

• Installation of all measuring systems (including 2 HEIDENHAIN linear glass scales on the X and Y axes).

ADDITIONAL CYCLE DEVELOPMENT:

• Development of a Blind Bore cycle and associated conversational pages,

• Modification of the conversational programming for the U axis: changing from piece diameter programming to radius programming in all existing grinding cycles,

• Modification of wheel data to be entered by radius instead of diameter,

• Modification of all wheel dressing cycles, straight, shapes, and ISO,

• Modification of all dressing compensations in all grinding cycles.
