Verkauft

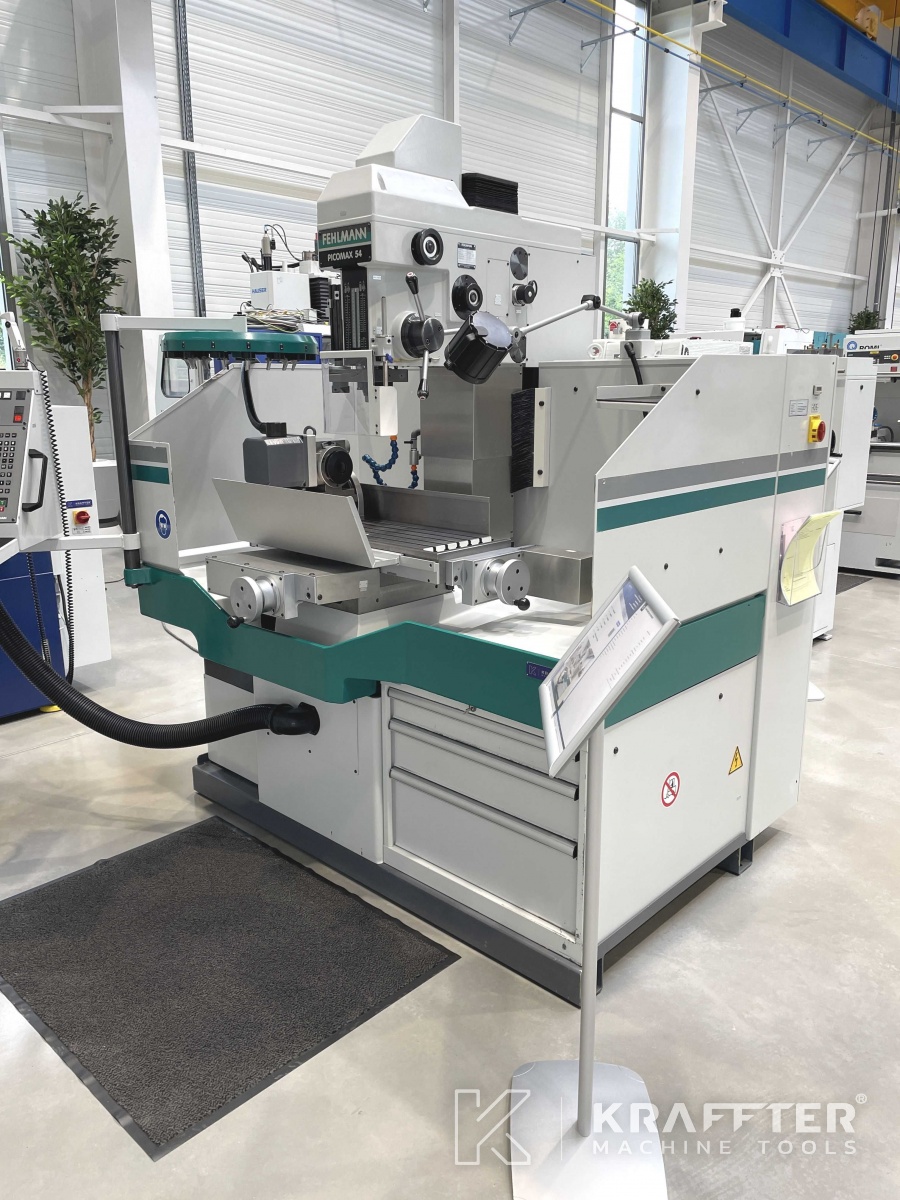

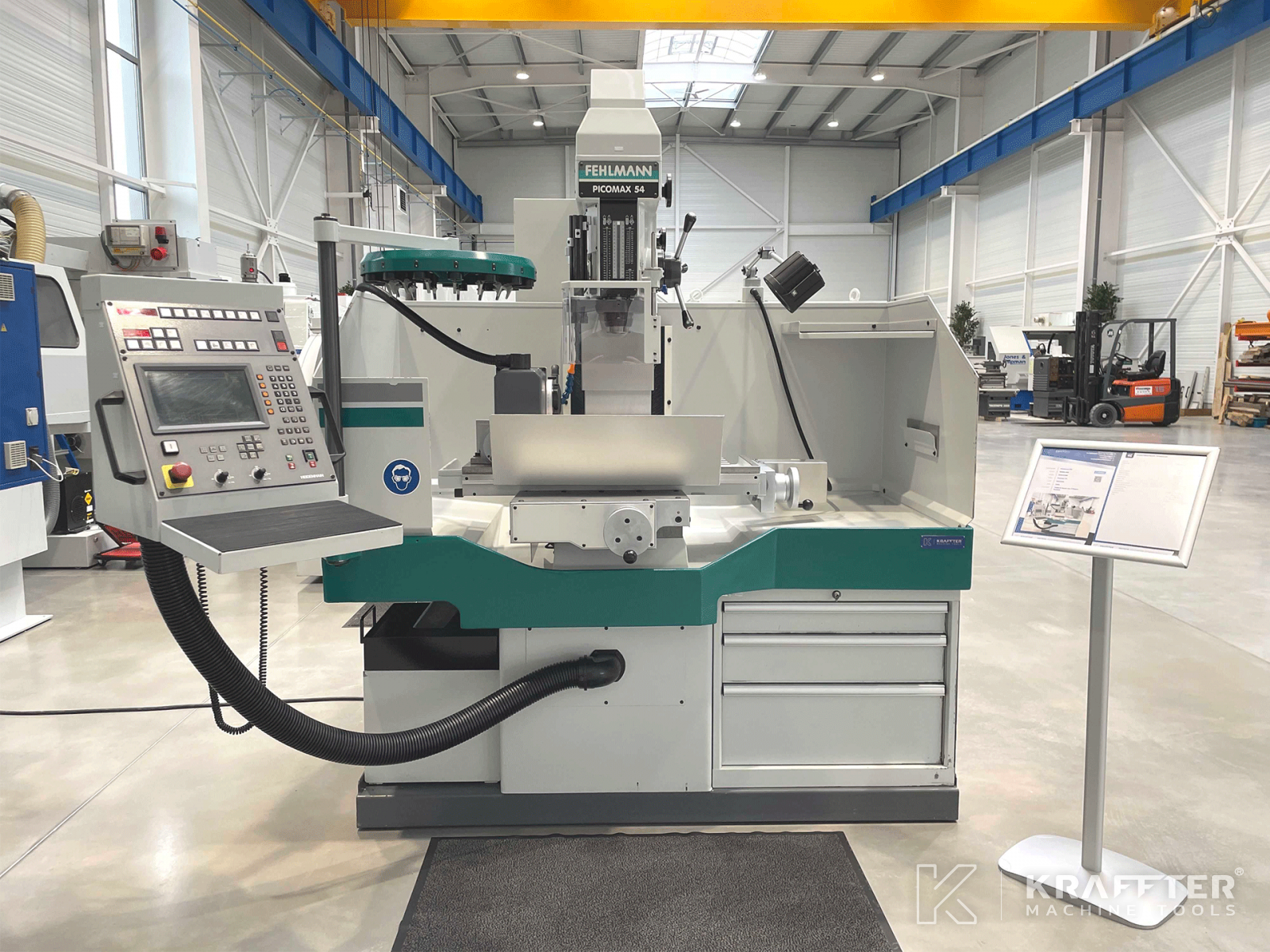

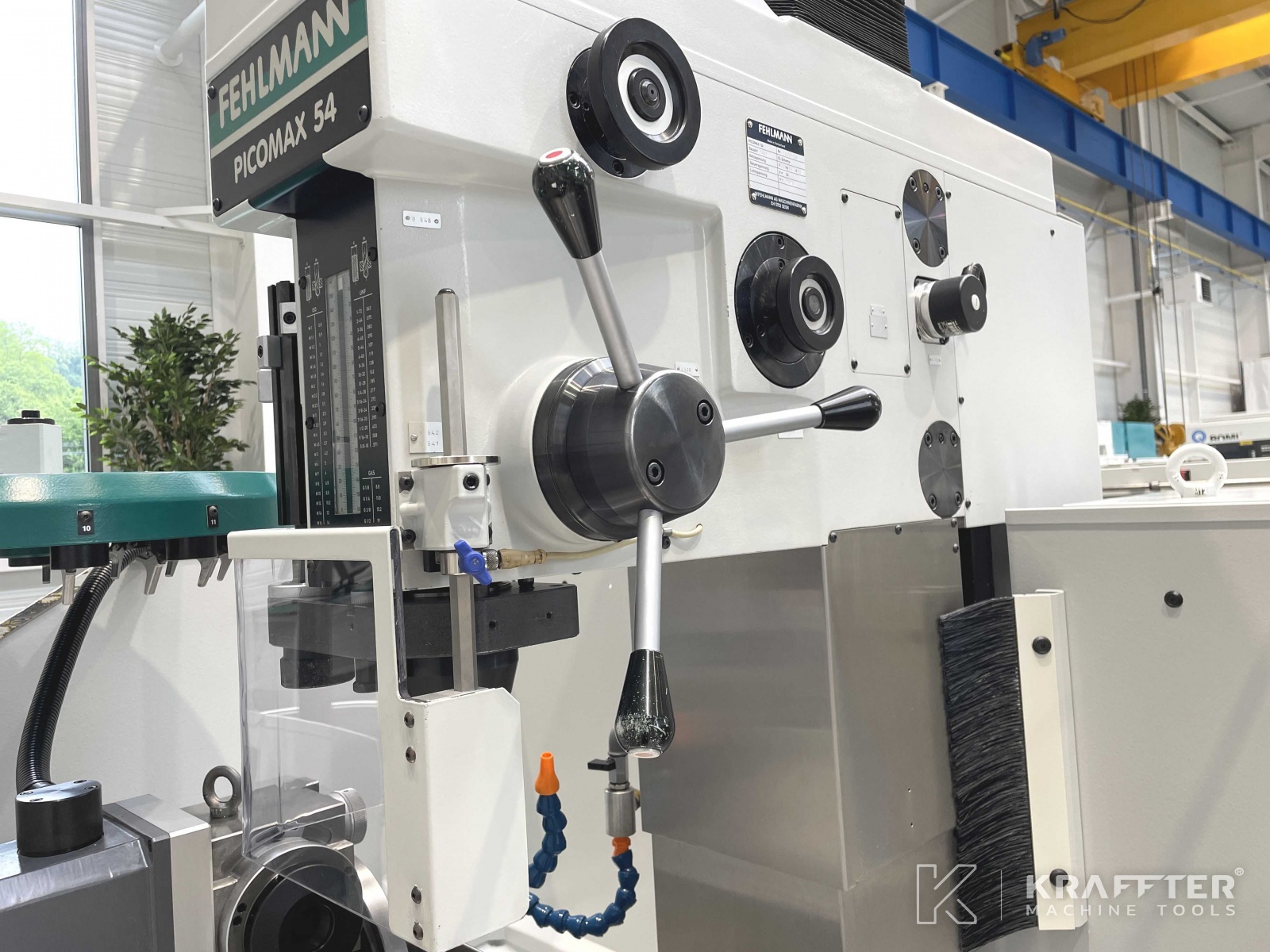

Maschinentyp: CNC-Fräsmaschine

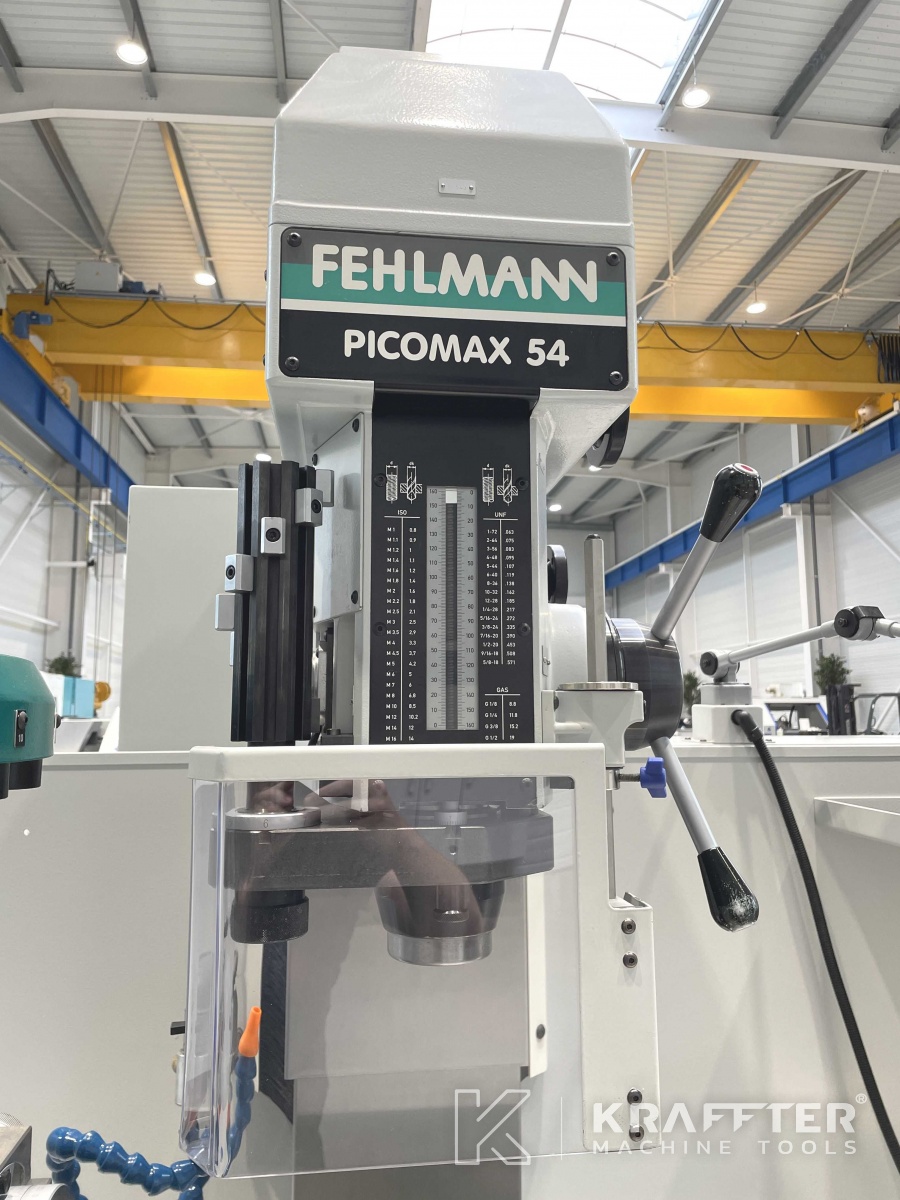

Marke : FEHLMANN
N° de stock: 20689-998

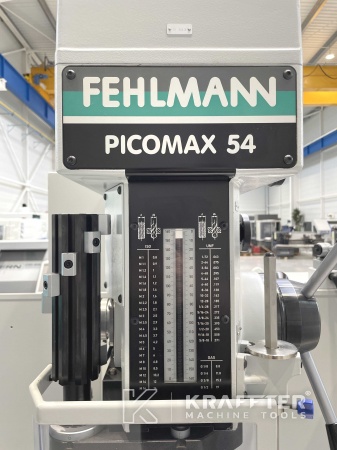

Modell : Picomax 54
Jahr : 2002
Standort : 73240 St-Genix-les-Villages, FRANCE
MASCHINE VERKAUFT
Interessiert an einem ähnlichen Modell?
Hinterlassen Sie uns Ihre Kontaktdaten:
Technische Daten
Serien-Nr.
14002140

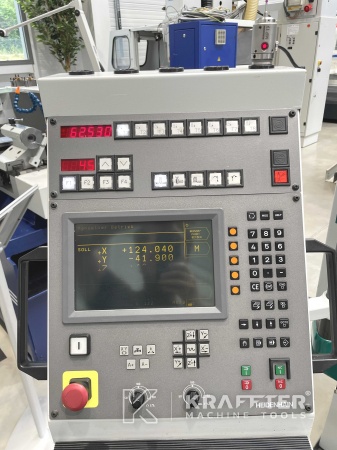

CN-Typ

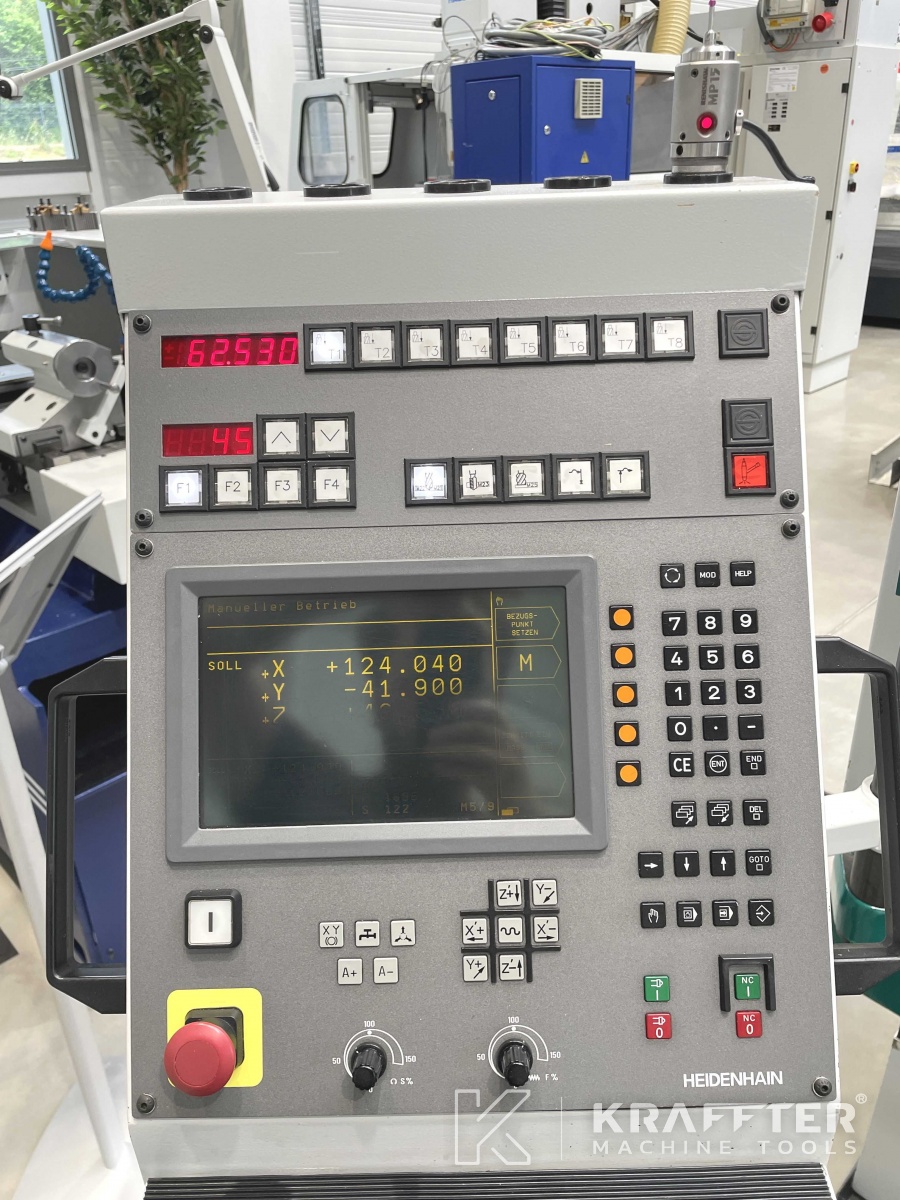

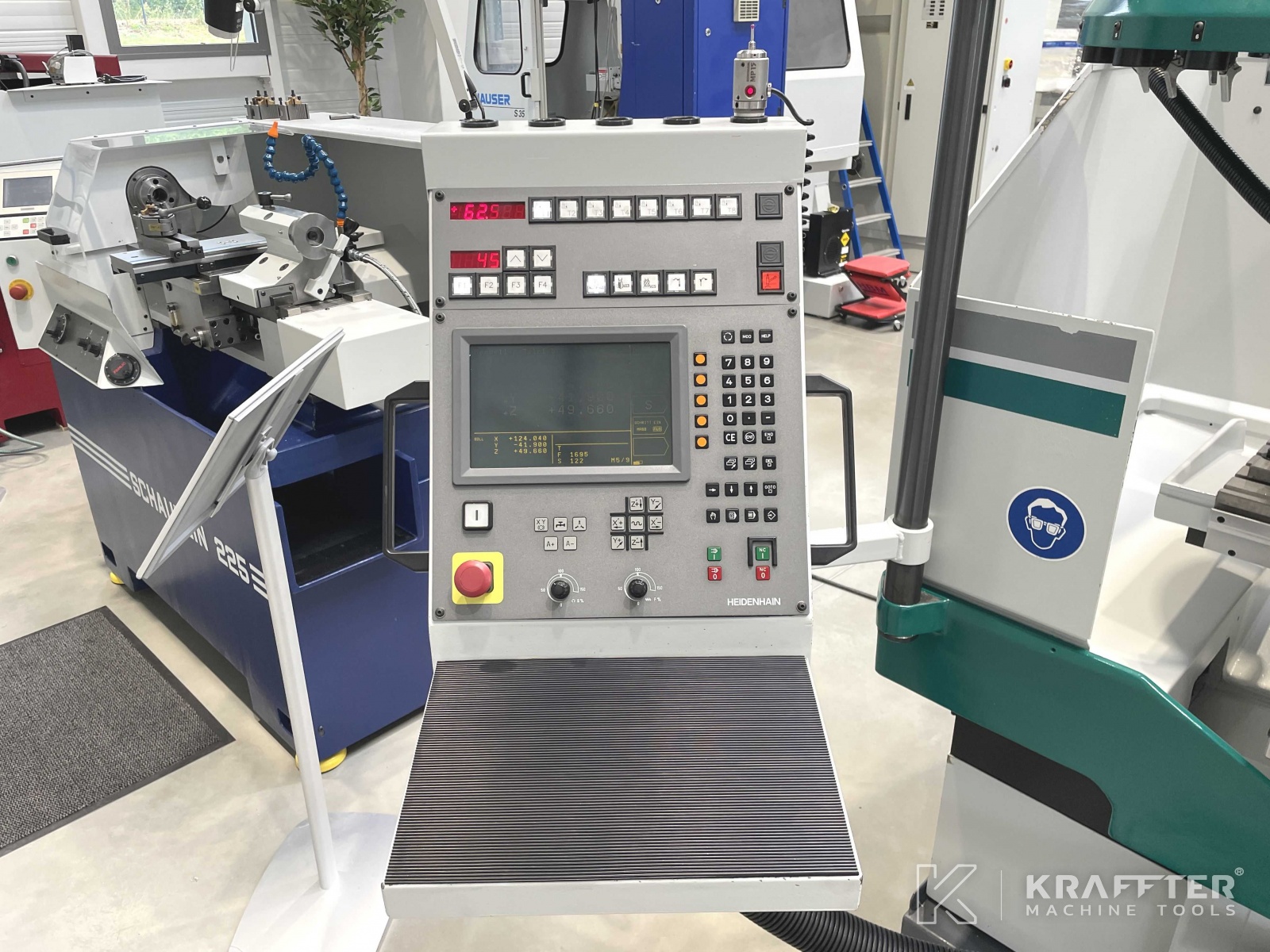

HEIDENHAIN TNC 310
Anzahl Achsen
4
Verfahrweg X-Achse
500 [mm]
Verfahrweg Y-Achse
260 [mm]
Verfahrweg Z-Achse
490 [mm]
Hub Bohrhülse
160 [mm]
Max. Abstand Spindel/Tisch
610 [mm]
Tischlänge
880 [mm]
Tischbreite
320 [mm]
Max. zulässiges Gewicht auf Tisch
300 [kg]
Spindelaufnahme
SF32
Min. Spindeldrehzahl
100 [U/min]
Max. Spindeldrehzahl
9000 [U/min]
Werkstücktaster
RENISHAW MP15

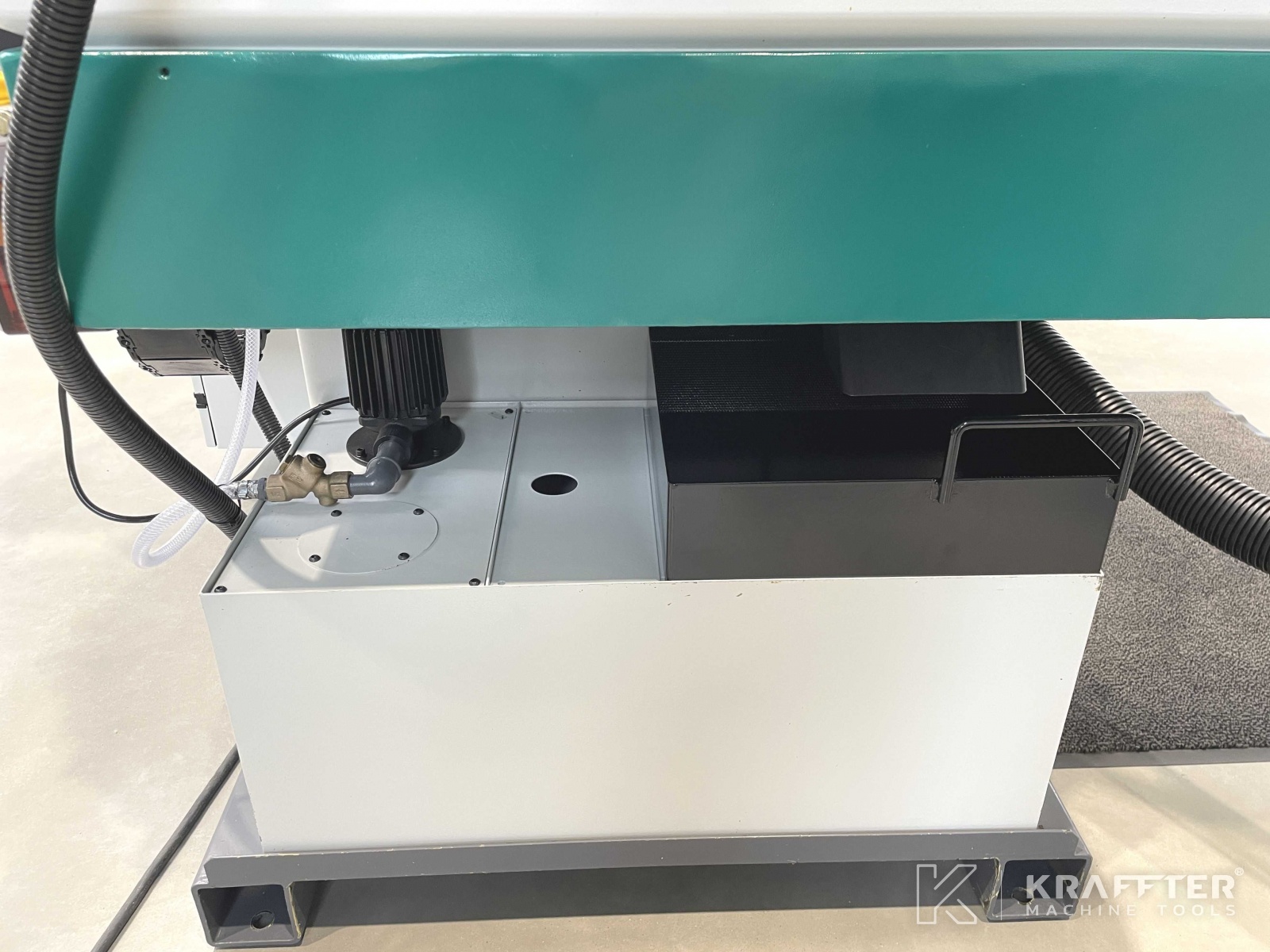

Fassungsvermögen der Kühlmittelwanne
100 [l]

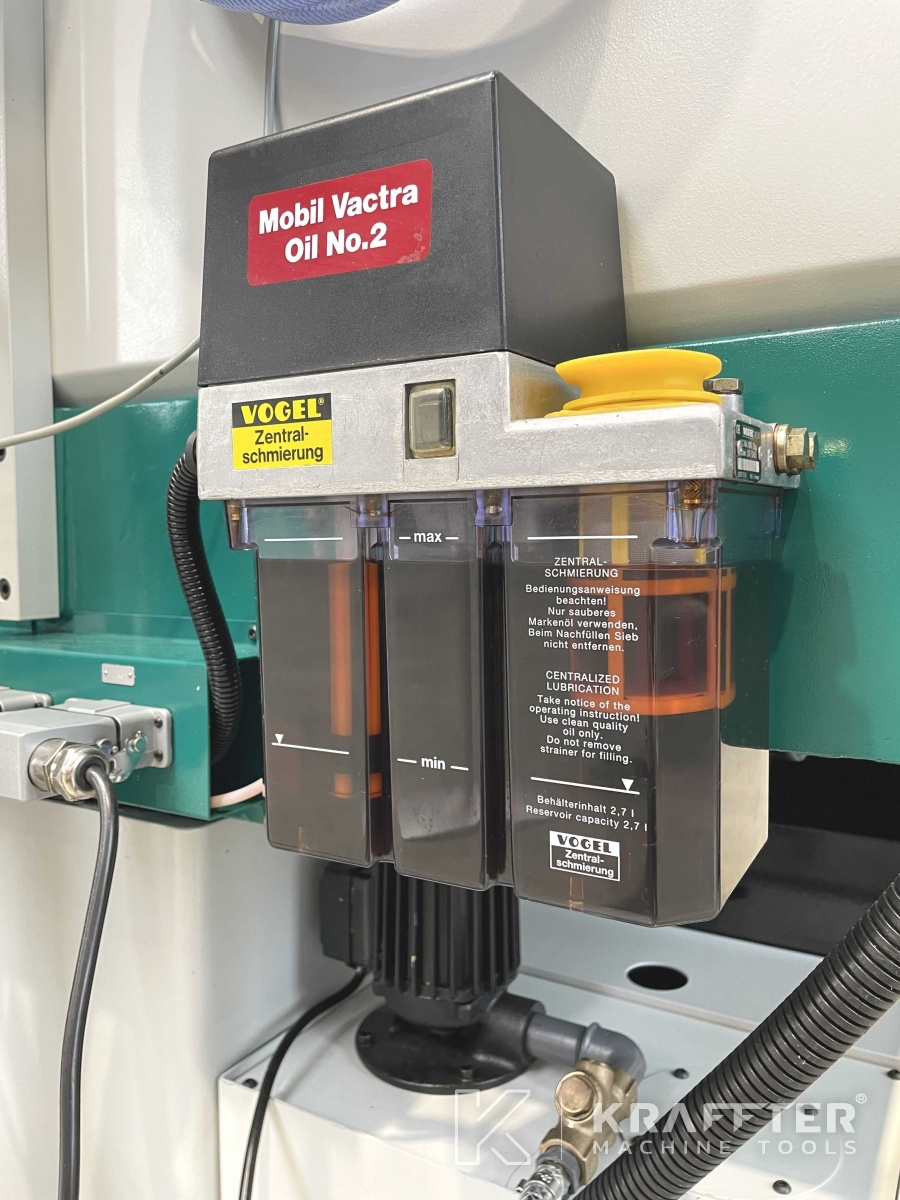

Zentralschmierung
Automatique - WILLY VOGEL
Versorgungsspannung
400 [V]
Abmessungen
2200 x 2100 x 2250 [mm]
Gewicht
2450 [kg]
Zusätzliche Informationen

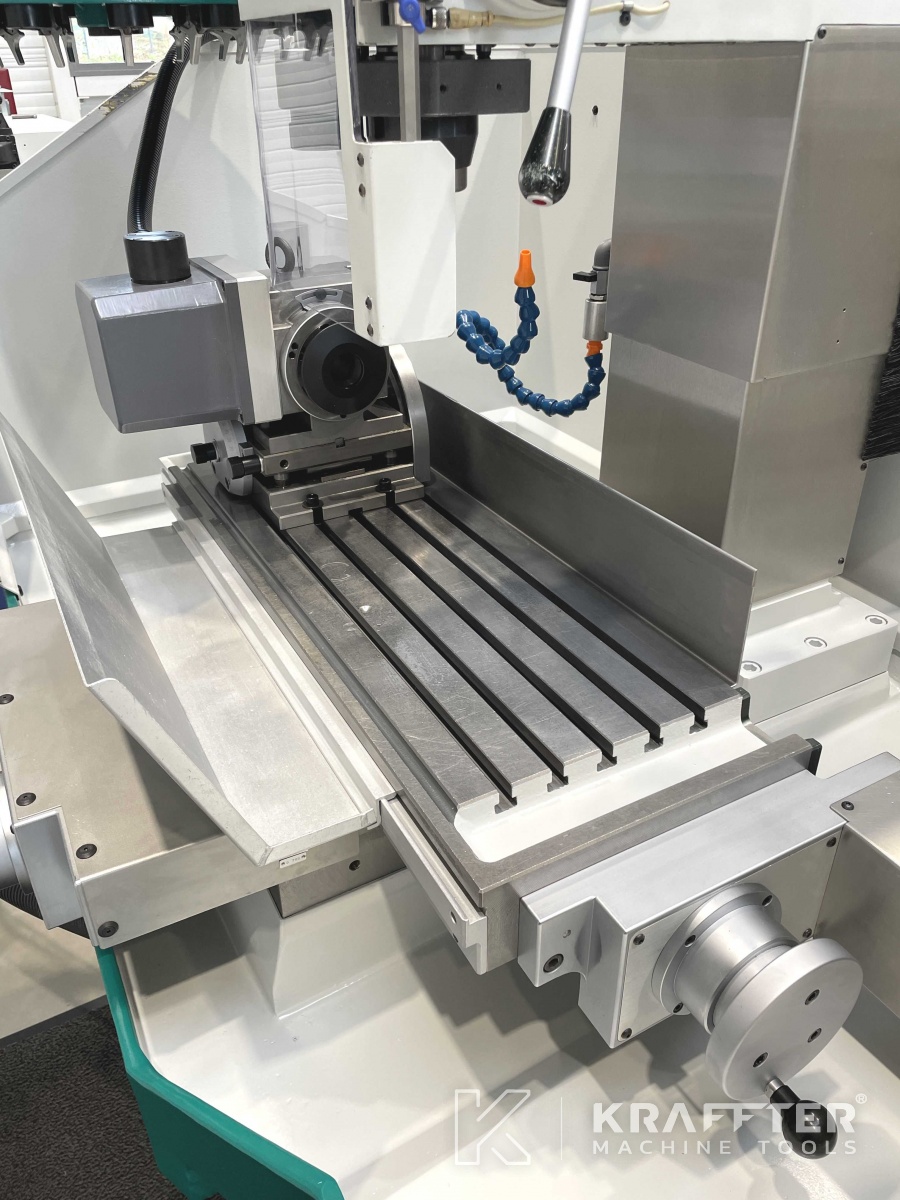

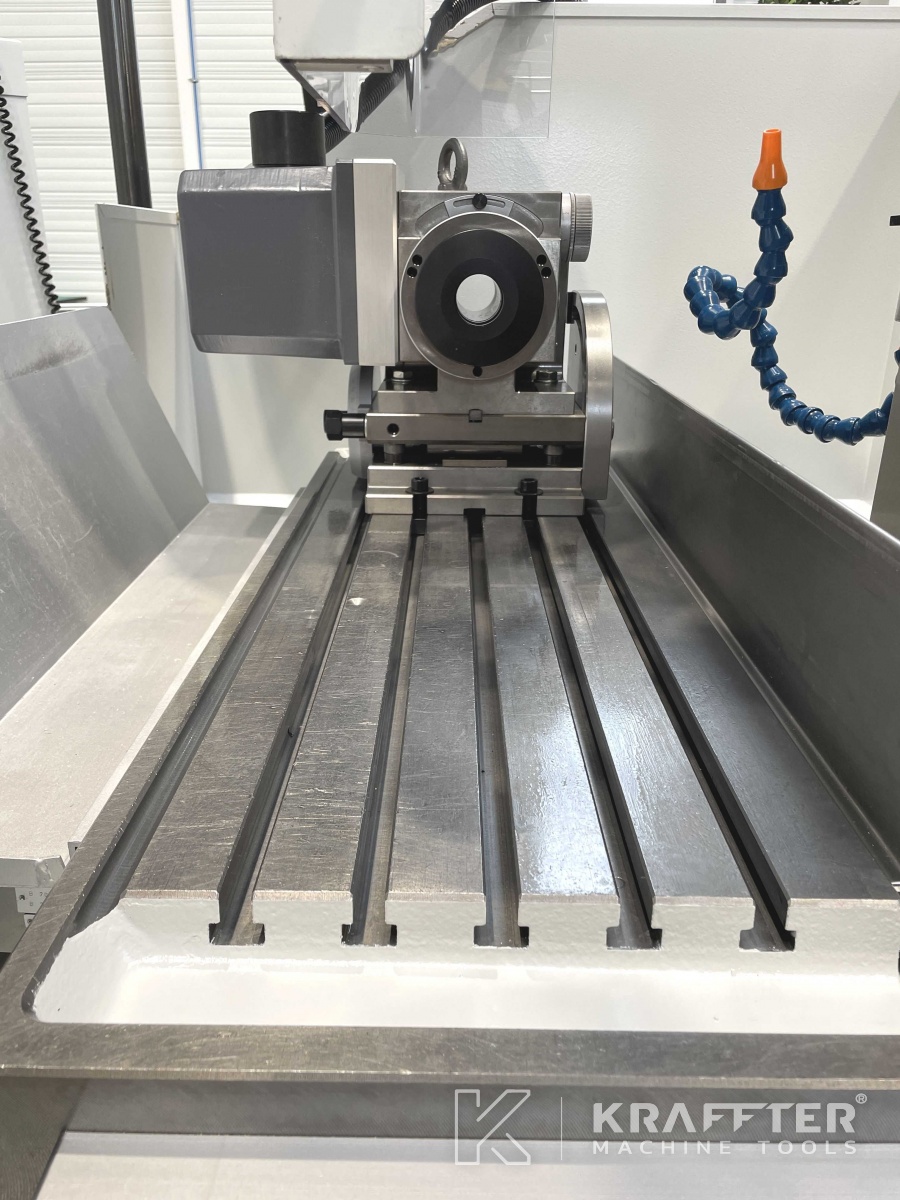

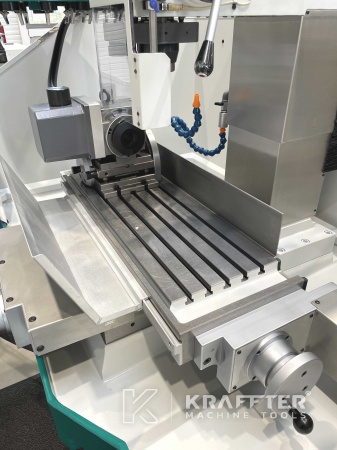

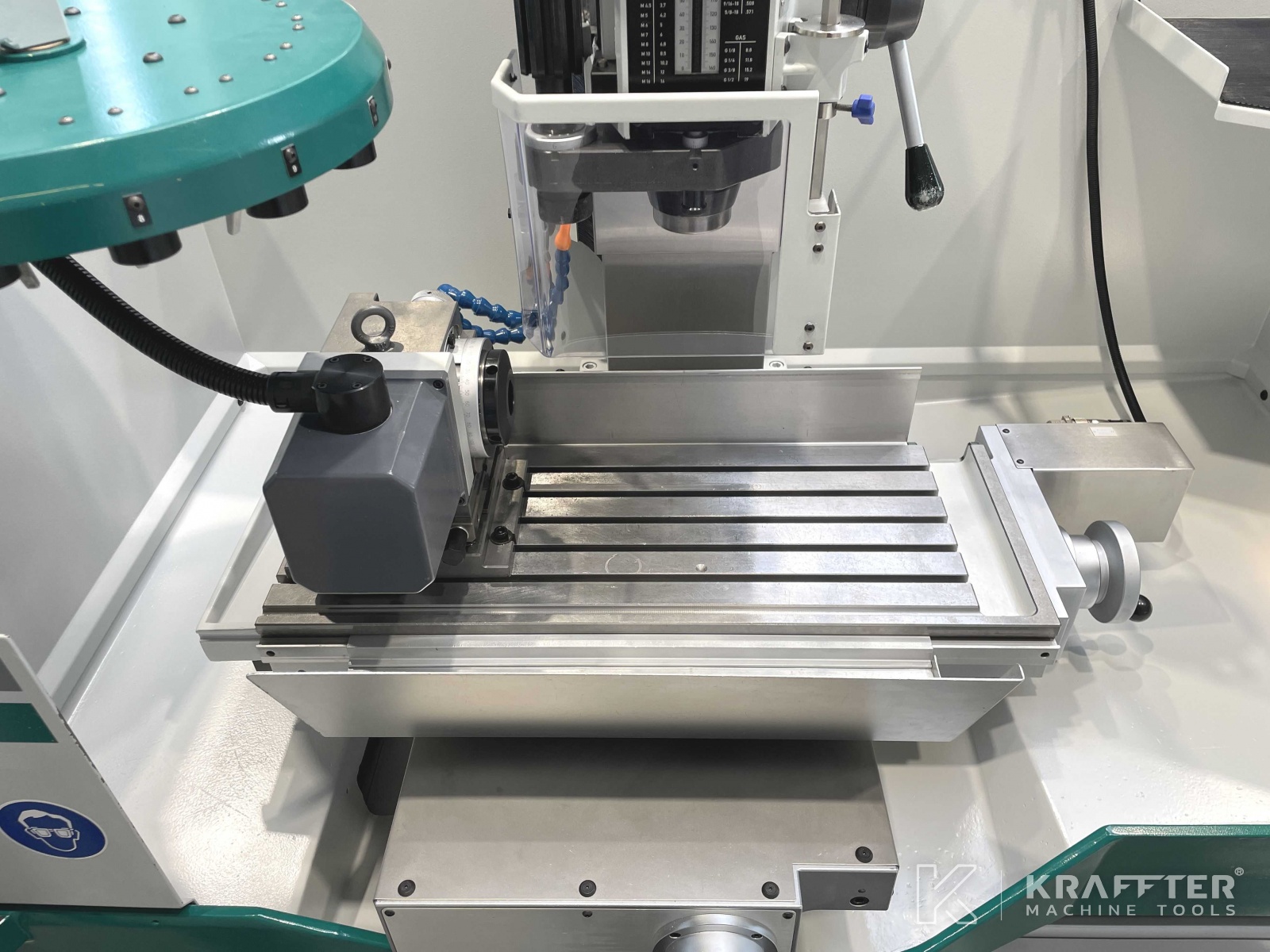

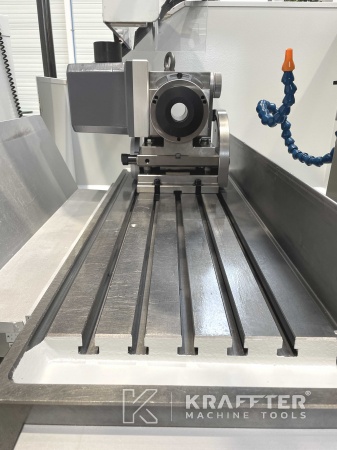

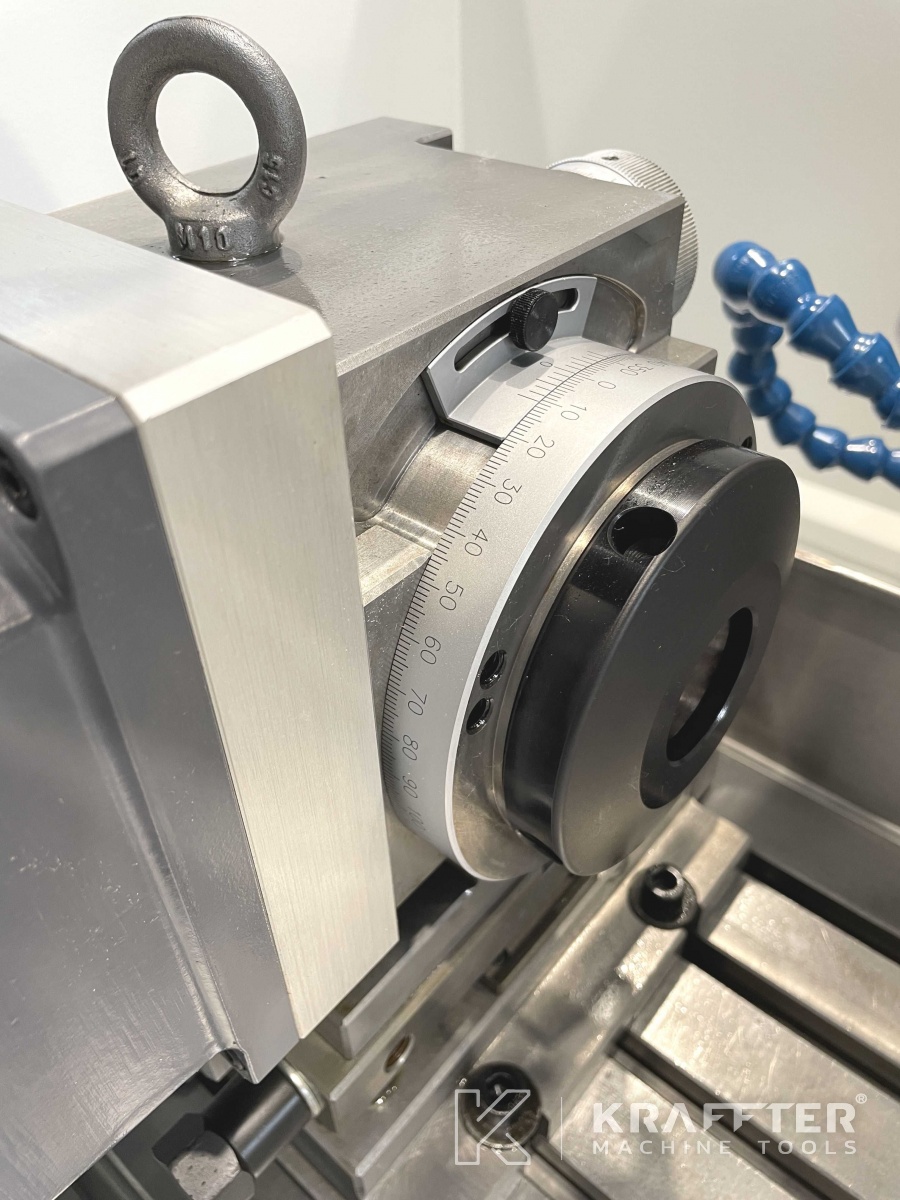

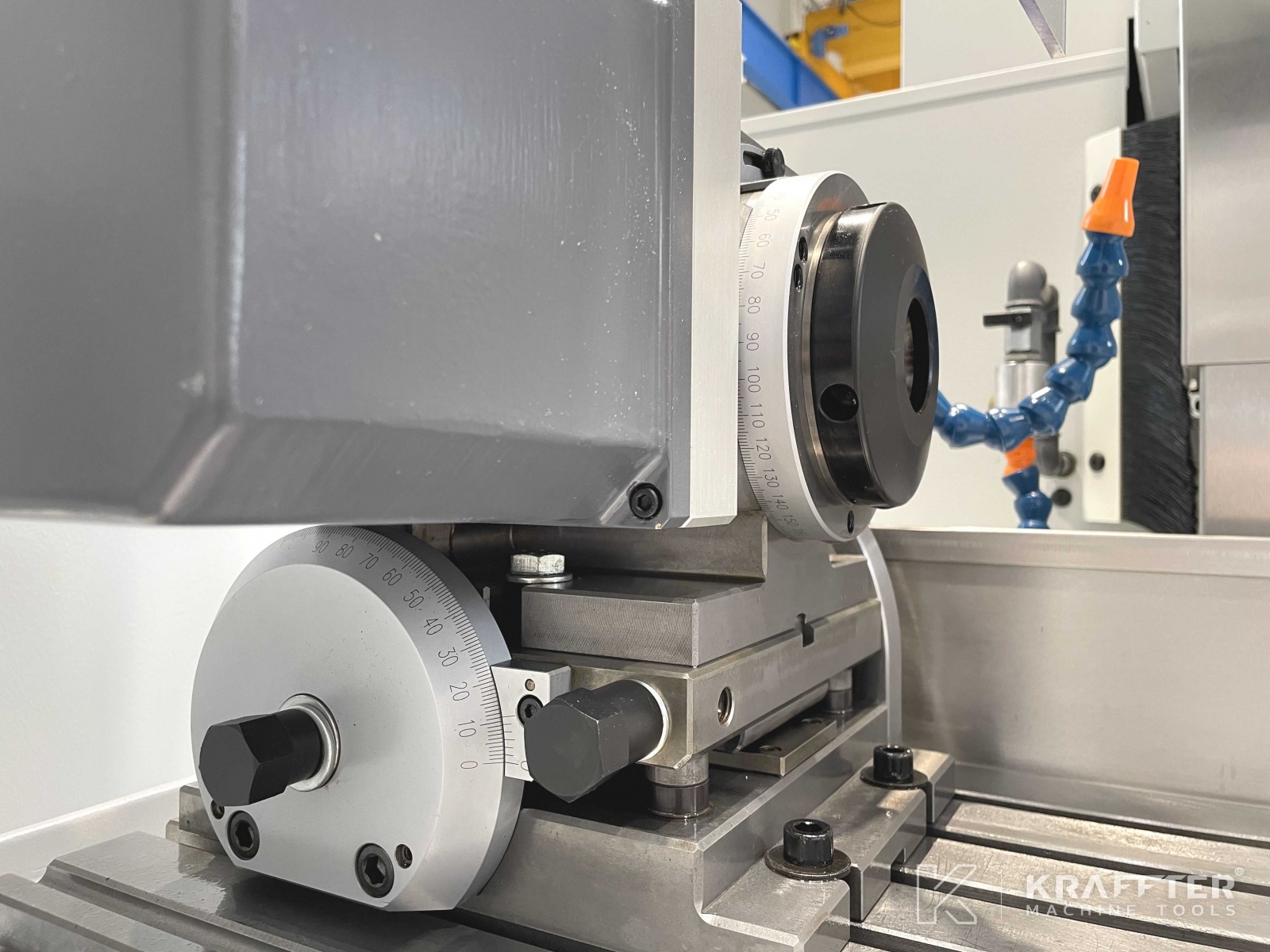

x1 4th axis FEHLMANN type AT100 CNC AC for F38 collets - indexation 0.001°

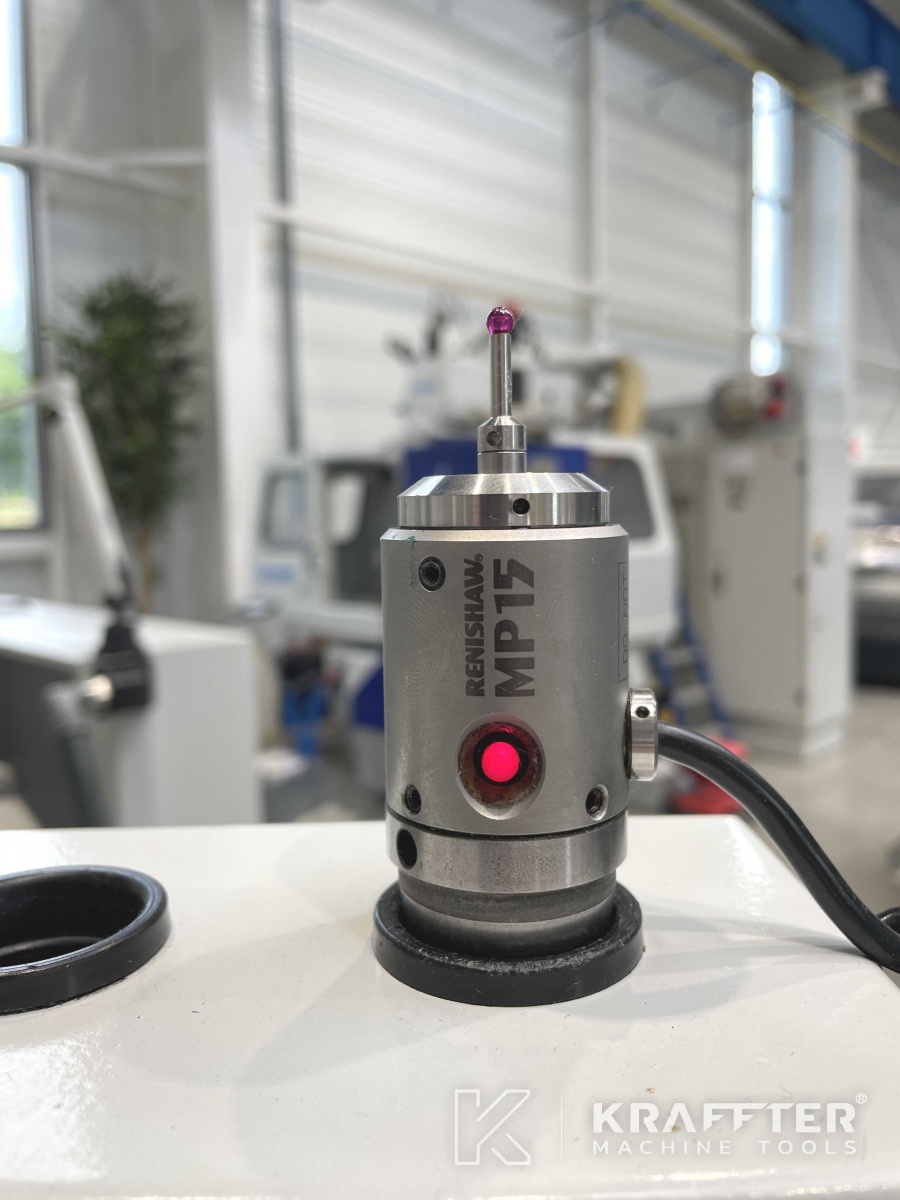

x1 RENISHAW MP15 3D touch probe
x1 speed-up head type NX6 SF32 (multiplied number revolution 6x) - max. revolution : 25'000 rpm
x2 reduction sleeve attachments SF32 to MT2 with tenon
x2 reduction sleeve attachments SF32 to MT1 with tenon

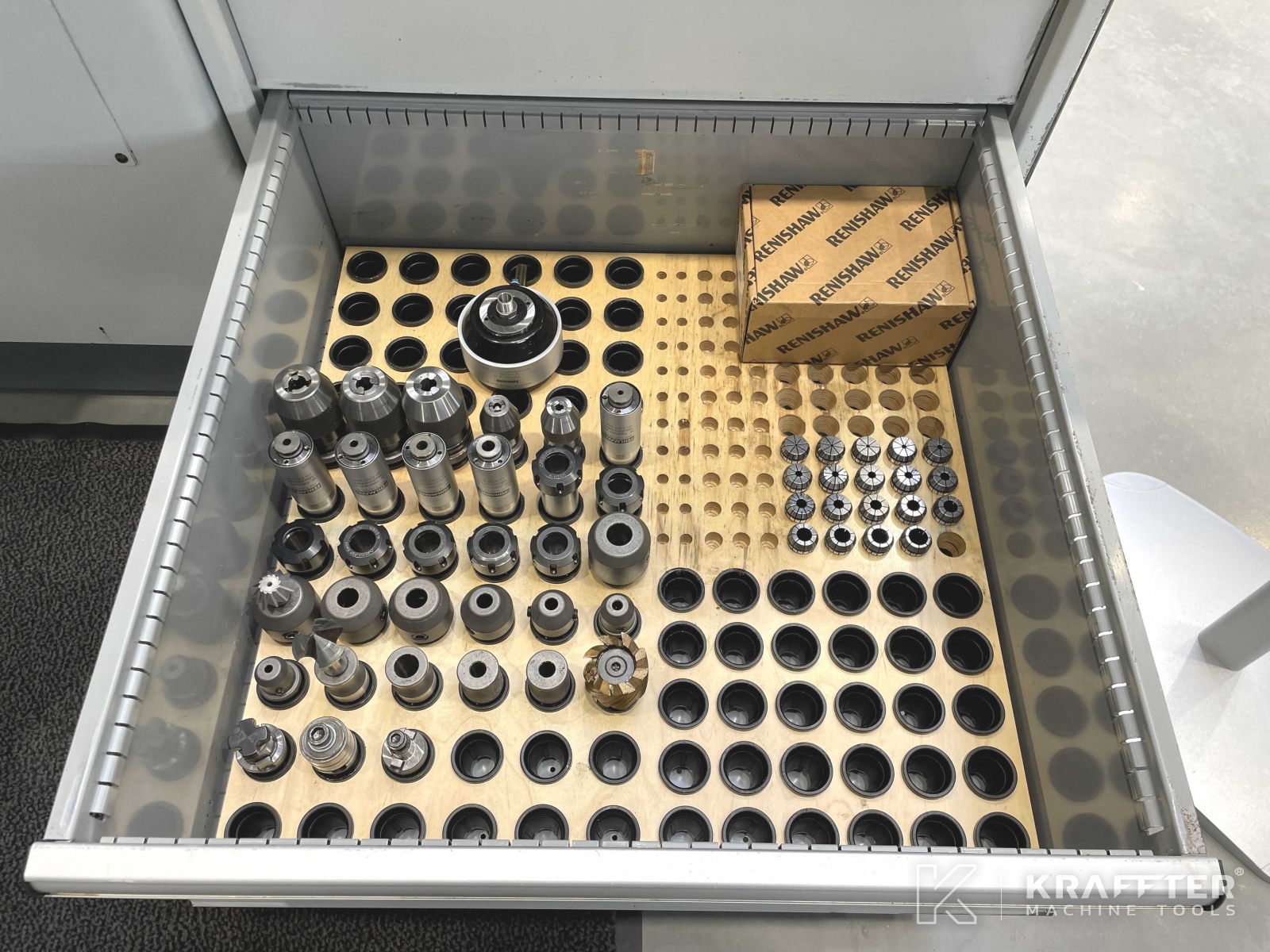

x3 precision keyless drill chucks ALBRECHT 1-13 [mm]
x2 precision keyless drill chucks ALBRECHT 0-6.5 [mm]

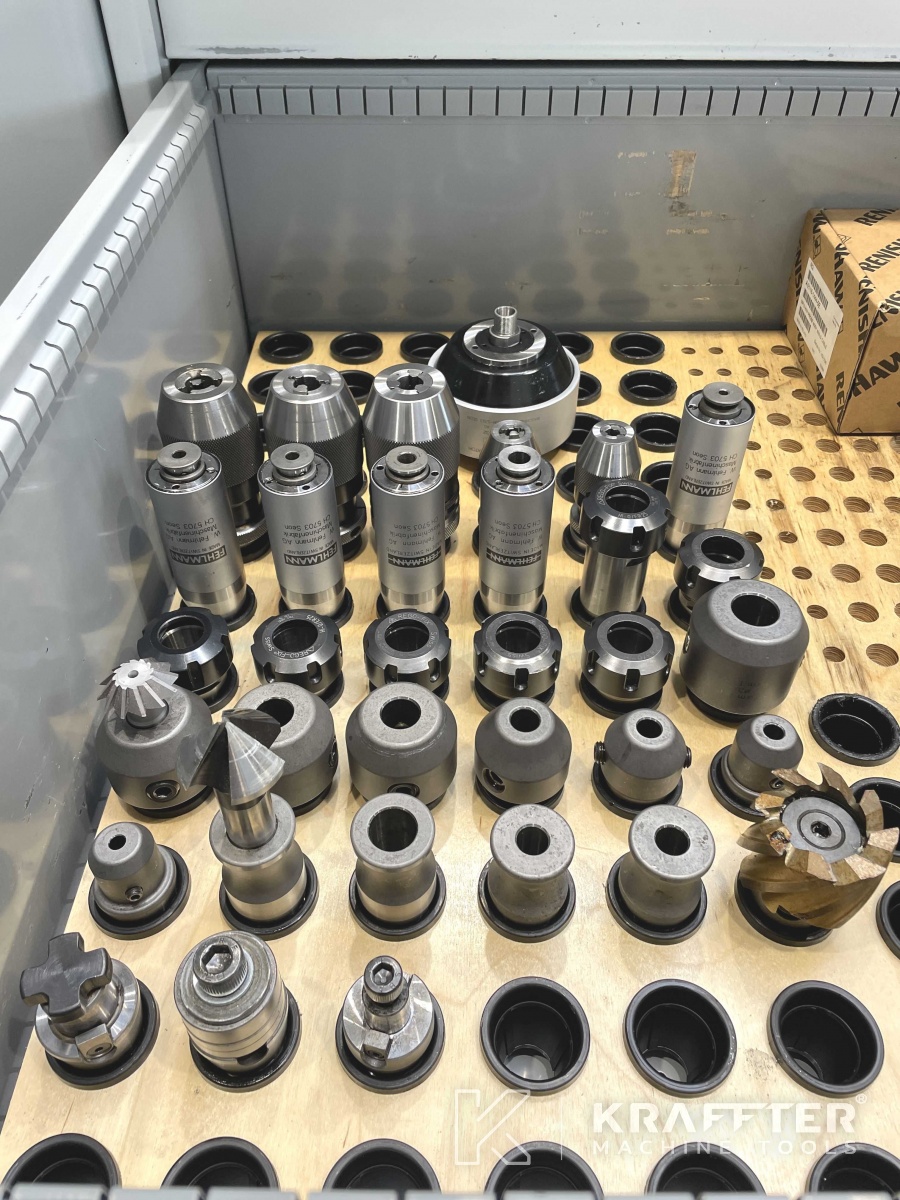

x6 collet chucks ESX25 with locking nut
x1 collet chucks ESX25 with locking nut - extended
x1 tapping head with preset slipping clutch with axial float in one dircetion only M4
x1 tapping head with preset slipping clutch with axial float in one dircetion only M5
x1 tapping head with preset slipping clutch with axial float in one dircetion only M6
x1 tapping head with preset slipping clutch with axial float in one dircetion only M8
x1 tapping head with preset slipping clutch with axial float in one dircetion only M10
x1 milling chuck Ø8 [mm]
x1 milling chuck Ø10 [mm]
x1 milling chuck Ø12 [mm]
x3 milling chucks Ø16 [mm]
x1 milling chuck Ø20 [mm]
x4 milling chucks (for milling cutter of different internal diameters)

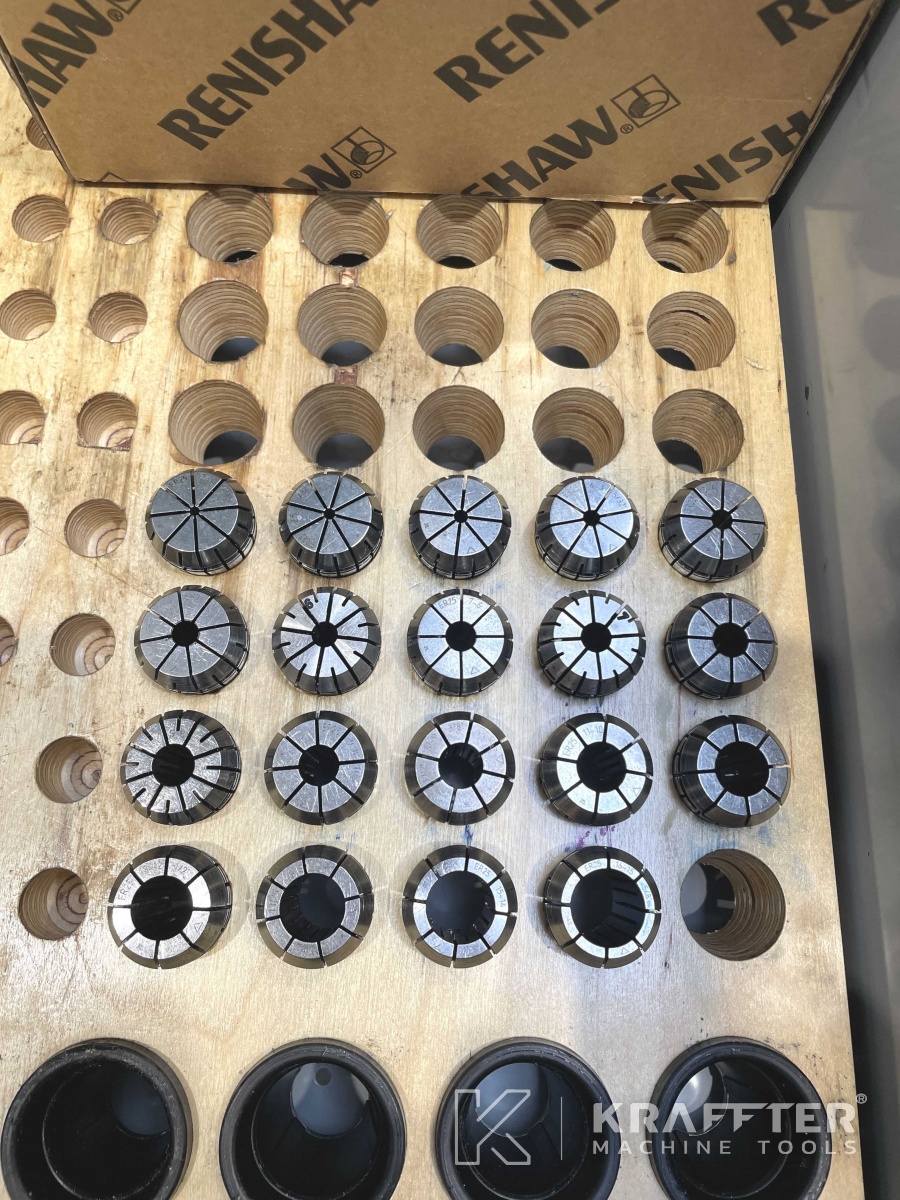

x1 collet ER25 Ø2-1 [mm]
x1 collet ER25 Ø2.5 [mm]
x1 collet ER25 Ø3-2 [mm]
x1 collet ER25 Ø4-3 [mm]
x1 collet ER25 Ø5-4 [mm]
x1 collet ER25 Ø6-5 [mm]
x1 collet ER25 Ø6 [mm]
x1 collet ER25 Ø7-6 [mm]
x1 collet ER25 Ø7 [mm]
x1 collet ER25 Ø8-7 [mm]
x2 collets ER25 Ø9-8 [mm]
x1 collet ER25 Ø10-9 [mm]
x1 collet ER25 Ø11-10 [mm]
x1 collet ER25 Ø12-11 [mm]
x1 collet ER25 Ø13-12 [mm]
x1 collet ER25 Ø14-13 [mm]
x1 collet ER25 Ø15-14 [mm]
x1 collet ER25 Ø16-15 [mm]

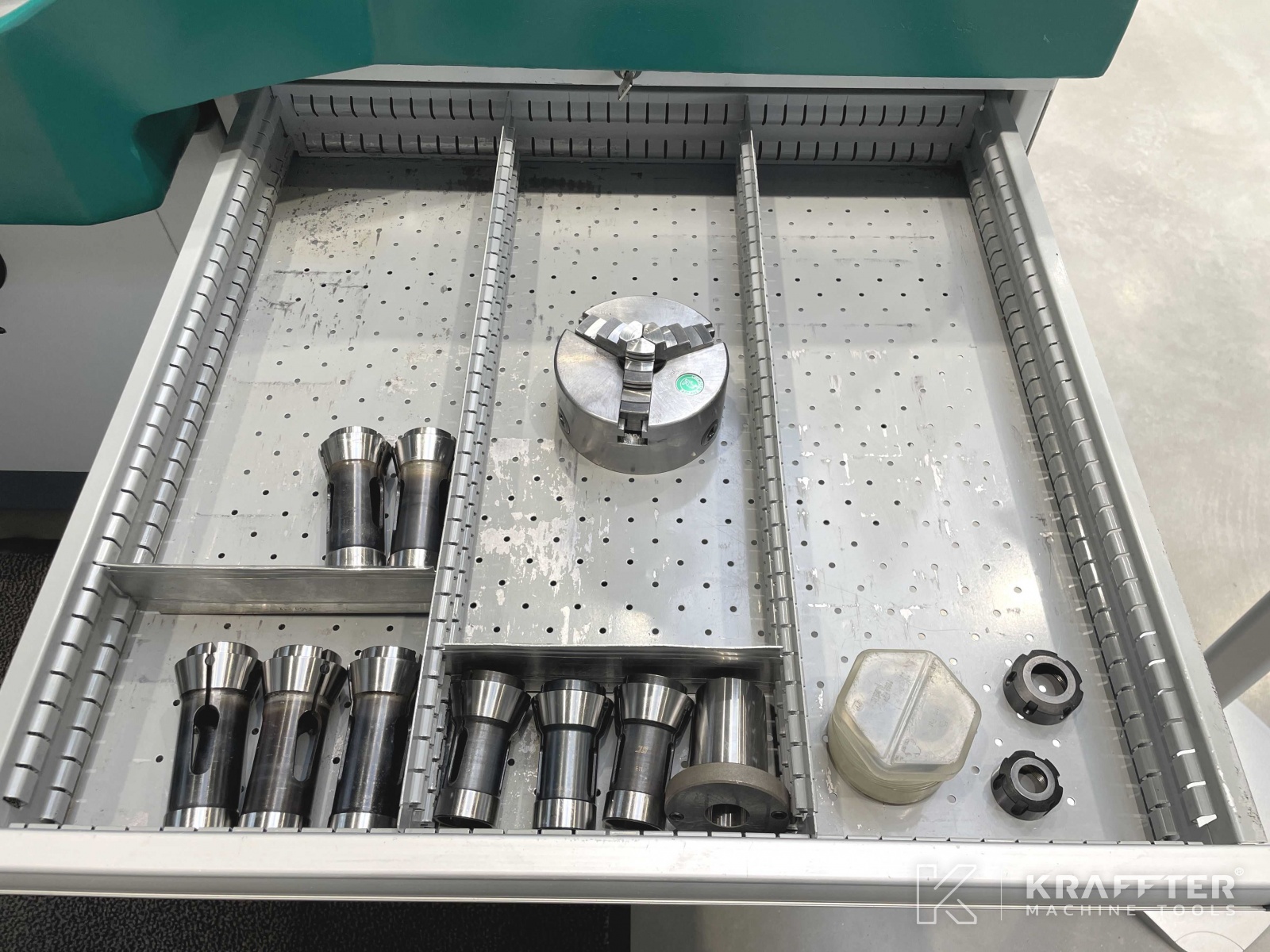

x1 F38 collet for 4th axis AT100 CNC AC Ø6 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø8 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø10 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø16 [mm]
x1 F38 collet for 4th axis AT100 CNC AC Ø20 [mm]
x1 concentric 3 jaw chuck Ø125 [mm]
x1 WALDMANN lamp - 8500K
x1 users & maintenance manual (in German & French)
x1 programming manual FEHLMANN / HEIDENHAIN TNC 310 (in German & French)
x1 electrical wiring diagram manual
